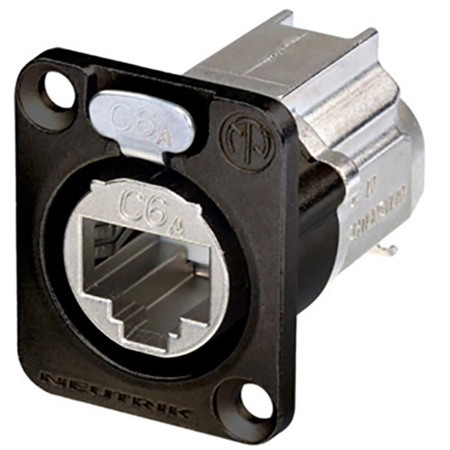

Neutrik NE8FDX-Y6-B D-Shape CAT 6A Shielded IDC Termination Panel Connector, Black

SKU: NE8FDXY6B

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neutrik NE8FDX-Y6-B Specifications

General

General

Jump to...
  • Color

    Black

  • Gender

    Female

Electrical

Jump to...
  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 0.5 G Ohm

  • Rated current per contact

    1.5 A

  • Transmission performance

    CAT6A, acc. TIA/EIA rating
    CAT6A, acc. IEC/ISO/EN rating

  • Power over Ethernet

    PoE++ acc. IEEE 802.3bt

Mechanical

Jump to...
  • Lifetime

    > 1000 mating cycles

  • Wiresize

    Solid: AWG 26/1 - AWG 22/1
    Stranded: AWG 26/7 - AWG 22/7

  • Locking device

    Latch lock

  • Mounting direction

    Front mounting

  • Insulation diameter

    0.85 - 1.6mm

Material

Jump to...
  • Contact plating

    Au

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

Environmental

Jump to...
  • Flammability

    UL 94 V-0

  • Temperature range

    -40 to 158 Degree F (-40 to + 70 Degree C)

About Neutrik NE8FDX-Y6-B

Are you seeking a robust solution for your high-speed network connections Look no further than the NE8FDX-Y6-B D-Shape CAT 6A Shielded IDC Termination Panel Connector in sleek black. This durable connector, crafted by the renowned Neutrik brand, is synonymous with reliability and superior performance in the realm of audio and video equipment.

Designed to seamlessly terminate and connect CAT 6A shielded Ethernet cables, this high-quality panel connector ensures a secure and stable link to your network or devices. Its sturdy, D-shaped metal housing not only provides a professional appearance but also offers enhanced durability and ease of installation in any setup.

The NE8FDX-Y6-B connector features an IDC (Insulation Displacement Contact) termination, which allows for quick and reliable connections without the need for soldering. This makes it an ideal choice for both professional installers and DIY enthusiasts looking for a hassle-free setup.

Furthermore, the shielded design of this connector is engineered to protect against electromagnetic interference (EMI) and radio frequency interference (RFI). This means that your connections will be safeguarded from external noise, ensuring clear and uninterrupted data transmission.

Opt for the NE8FDX-Y6-B D-Shape CAT 6A Shielded IDC Termination Panel Connector for a reliable, high-quality connection that stands the test of time. Whether you're setting up a home network or a professional studio, this Neutrik connector is the trustworthy choice for achieving optimal performance and signal integrity.

Neutrik NE8FDX-Y6-B Features

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE++ compliant according to 802.3bt Type4
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Shielded system - high noise immunity and EMI protection

Key Features

  • Ensure reliable data transfer with this Neutrik CAT6A shielded panel connector.
  • Achieve PoE++ compatibility (IEEE 802.3bt) for high-power Ethernet applications.
  • Durable zinc diecast shell with black chromium plating offers robust protection.
  • IDC termination supports solid & stranded wires (AWG 26/1-22/1 & 26/7-22/7).
  • CAT6A performance, acc. TIA/EIA & IEC/ISO/EN, guarantees optimal network speeds.
  • Front mounting with latch lock ensures a secure and stable Ethernet cable connection.

What's in the box:

  • NE8FDX-Y6-B D-Shape CAT 6A Shielded Panel Connector
  • Neutrik 6 Month Limited Warranty
