Black
7" (17.78cm)
IPS
Yes
1920x1080 pixels (Full HD)
0.0804 x 0.0804mm
16:9
2000nit +/-10% (actual measured brightness)
1000:1
H/V: >160 Degree/160 Degree
L/R: 80 Degree/80 Degree
U/D: 80 Degree/80 Degree
HDMI
HDMI, 3.5mm headphone jack
5.5mm DC Input Interface: DC- 12-26V (cannot be used as a dummy battery when in low voltage output)
2.5mm DC Output Interface: DC 8.4V (can connect a dummy battery power cord to the camera via the DC power output interface, significantly extending the camera's battery life)
Supports 5V/3A and higher fast chargers or portable chargers (3A output)
480i
576i
480p
576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF)
3840x2160 (30/25/24Hz)
4096x2160 (25/24Hz)
<=22W (without DC 8.4V output)
-4 to 131 Degree F (-20 to 55 Degree C)
-22 to 149 Degree F (-30 to 65 Degree C)
180 Degree
Optional, not included
Lithium ion
NP-F
1
6.9 x 4.2 x 1" (175 x 107 x 25mm)
15.7 oz (445g)

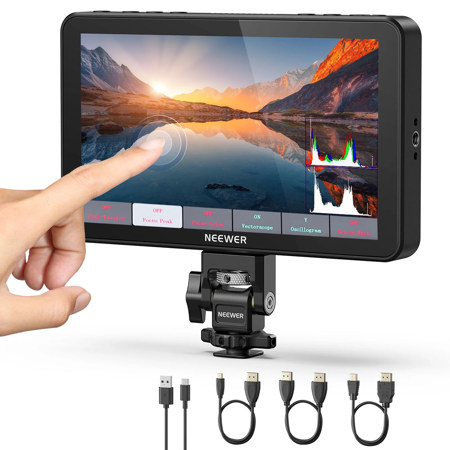

2000nit Touch Screen & Auto Backlight Control
The field monitor boasts up to 2000nit brightness on a 7 inch IPS touch screen (manual mode switchable), with a 1920x1080 pixel resolution, 1000:1 contrast ratio, 16:9 aspect ratio, and a 160 Degree ultra wide viewing. With the competent ambient light sensor, the monitor automatically adds brightness (1-100) under bright sunlight, ensuring clear visibility without a sun hood, and dims the screen in darkness for eye comfort
Improved UI Design & 4K Loop In & Out
With a fresh design with improved UI, the camera monitor supports 4K HDMI loop input and output functionality, accommodating 480i, 576i, 480p, 576p, 720p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/24SF/23.98/23.98sF), 3840x2160 (30/25/24Hz), 4096x2160 (24/25Hz). Also supports simultaneous audio monitoring via a 3.5mm headphone jack (headphones not included)
Versatile Monitoring & Custom 3D LUT Upload
Adopting the professional Rec.709 HD color standard, the field monitor offers False Color, Zebras, Histogram, Oscillogram, Full Waveform, Vectorscope, HDR, Single Color, Peak Focus, Audio Bar, and more professional functions, with shortcut buttons (F1, F2, F3) on top for quick access. With 15 preloaded 3D LUTs, the monitor supports up to 60 custom 3D LUT file uploading, and even firmware upgrading via an SD card (not included)
Versatile Power Supply Options
The DSLR monitor supports NP-F battery compatibility (NP-F550/750/970), DC port (cable not included), and Type C charging. The monitor also works as a dummy battery for camera via a DC 8V/1.5A output for prolonged outdoor filming
180 Degree Adjustable & Enhanced Cooling
Equipped with 1/4" screw holes on the bottom and side, the DSLR monitor offers flexible mounting options and includes a cold shoe mount for 180 Degree adjustment. Additionally, the built in cooling fans efficiently dissipate heat for extended use.
Note: Long press the power switch to turn on/off, then short press the power switch to enable/disable the touch screen. Double click the screen to pop up the main menu Supports screen zoom
