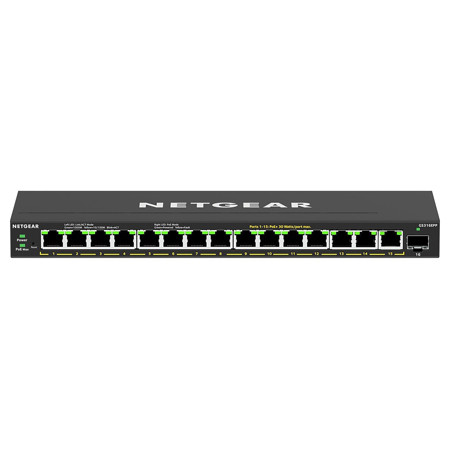

Netgear GS316EPP 16-Port 231W High-Power PoE+ Gigabit Ethernet Plus Managed Switch with 1 SFP Port

SKU: NEGS316EPP1N MFR: GS316EPP100NAS
Earn VIP Reward Points

Key Features

  • Boost your network with this 16-Port Gigabit Ethernet switch, offering lightning-fast data transfers.
  • Power devices like IP cameras and VoIP phones easily with 231W PoE+ support on this managed switch.
  • Enjoy secure and reliable network performance with advanced VLAN and quality of service (QoS) features.
  • Simplify network management using the web-based GUI for easy configuration and real-time monitoring.
  • Connect fiber optic cables using the SFP port for extended range and high-speed network connectivity.
  • This desktop/rackmount switch ensures reliable performance with a robust metal enclosure and silent operation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2025-05-09T20:00:00

Rated 5 out of 5

Excellent

Excellent product and delivered on-time. Quality products

Osman

2022-05-23T20:00:00

Rated 4 out of 5

Cheap, effective switch. Cumbersome interface.

I found the interface to be cumbersome. Some terminology doesn't line up with industry standard which leads to significantly increased configuration / testing time.

JohnW

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Netgear GS316EPP Specifications

Features

Features

Jump to...
  • 10/100/1000 RJ45 Copper Ports

    16 (Auto Uplink)

  • Enclosure

    Metal

  • Connector Type

    Metal

  • No of PoE ports

    15

  • NoPoE+ 802.3at Ports

    15

  • SFP ports

    1

  • Total PoE/PoE+ Budget

    231W

  • Advanced PoE Controls

    Yes

  • PoE Scheduling

    Yes

  • Uninterrupted PoE

    Yes

Performance Specification

Jump to...
  • Forwarding modes

    Store-and-forward

  • Bandwidth

    32Gbps

  • Max MAC entries

    4K

  • Buffer Size

    192KB

  • Energy Efficient Ethernet

    Yes (IEEE 802.3az) compliant

  • Priority queuing

    WRR

  • Jumbo frame support

    10,000 bytes

  • Acoustic noise level

    0 (dBA) (ANSI-S10.12) @ 25 Degree C

  • Mean Time Between Failures

    570,435 hrs (@ 25 Degree C)

L2 Services - VLANS

Jump to...
  • VLAN (# Supported)

    64

  • IEEE 802.1Q VLAN Tagging

    Yes

  • Port-based VLANs

    Yes

L2 Services - Availability

Jump to...
  • Link Aggregation/Port Trunking

    Yes

  • Number of Static Manual LAGs/Members

    8/8

L2 Services - Multicast Filtering

Jump to...
  • IGMP snooping (v1, v2, and v3)

    Yes

  • Block unknown multicast

    Yes

  • Supported Multicast groups

    128

L3 Services - DHCP

Jump to...
  • DHCP client

    Yes

Quality of Service

Jump to...
  • Rate Limiting

    Yes

  • DSCP

    Yes

  • IEEE 802.1p COS

    Yes

  • Port-based VLAN

    Yes

  • TOS

    Yes

  • WRR (Weighted Round Robin)

    Yes

  • Strict Priority queue technology

    No

IEEE Network Protocols

Jump to...
  • IEEE Network Protocols

    IEEE 802.3 Ethernet
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3u 100BASE-T
    EEE 802.1p Class of Service
    IEEE 802.1Q VLAN Tagging
    IEEE 802.3x Full-duplex Flow Control
    IEEE 802.3af PoE
    IEEE 802.3at PoE+
    IEEE 802.3az Energy Efficient Ethernet (deactivated by default)
    IEEE 802.3ad Dynamic Link Aggregation (LACP) only on GS316EP, GS316EPP and GS324EP

Management

Jump to...
  • System Password

    Yes

  • Web browserbased management GUI

    Yes

  • PC Utility

    No

  • Port Mirroring

    Yes

  • Max number of source ports allowed

    1 (one-to-one port mirroring)

  • Many-to-one Port Mirroring

    No (1 to 1 only)

  • Cable Test Utility

    Yes

  • FW Upgrade Thru Plus Utility (TFTP)

    No

  • Config download thru Plus Utility

    No (to Switch)

  • Config upload (to server)

    No

  • Per port

    Speed, Link, Activity, PoE

  • Per device

    Power, System, PoE Max

Environmental Specifications

Jump to...
  • Operating temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Humidity (relative)

    Operating: 90% maximum relative humidity (RH), non-condensing
    Storage: 95% maximum relative humidity (RH), non-condensing

  • Altitude

    10,000' (3000m) maximum

  • Storage temperature

    -4 Degree F to 158 Degree F (-0 Degree C to 70 Degree C)

  • Certifications

    EMC class B
    CE
    UKCA
    FCC
    ISED
    VCCI
    RCM
    KC
    BSMI

Physical

Jump to...
  • Dimensions (W x D x H)

    11.26 x 4.02 x 1.06" (286 x 102 x 27mm)

  • Weight

    1.95 lbs (883g)

  • UPC Code

    606449154382

About Netgear GS316EPP

FEATURED REVIEWS

Excellent

By Osman

Excellent product and delivered on-time. Quality products

For businesses seeking a robust and efficient networking solution, the NETGEAR GS316EPP 16-Port High-Power PoE+ Gigabit Ethernet Plus Managed Switch is an ideal choice. This high-performance switch is designed to power PoE+ devices such as VoIP phones, IP cameras, and more, simplifying your network infrastructure by eliminating the need for additional power sources.

Equipped with 16 Gigabit Ethernet ports, this switch delivers up to 1000 Mbps of dedicated, non-blocking bandwidth per port, ensuring seamless and congestion-free connectivity. Its 15 PoE+ ports provide a substantial total power output of 231W, enabling you to power and connect your devices with a single wire for a clutter-free setup.

The GS316EPP Managed Switch offers advanced PoE controls, allowing you to manage PoE prioritization, set PoE power limits per port, and schedule PoE for optimal control over all PoE-powered devices. This feature-rich switch also supports 10Gbps (10/100/1000 Mbps) line rate fabric, guaranteeing smooth and uninterrupted data flow to your devices.

Designed with a fanless structure, this switch operates silently, making it perfect for noise-sensitive environments. Its versatile mounting options allow you to install the switch on your desktop or mount it to your wall, providing flexibility to suit your space requirements.

The GS316EPP Managed Switch comes with an array of enhanced features, including a business-friendly GUI, simplified VLAN and QoS setup, and multi-language support. These features, along with advanced PoE controls and uninterrupted PoE, elevate your business networking experience.

This Plus Switch is packed with network-optimizing features such as VLANs, QoS, and IGMP Snooping, all offered at an affordable price. It delivers power and network connectivity to all your PoE+ devices, including wireless access points, door locks, and more. Its user-friendly web GUI makes setup and management a breeze, allowing you to configure your network with ease. Simply plug and play to enjoy a simplified, efficient, and high-performance networking solution.

Netgear GS316EPP Features

  • Enable network configuration and management at the price point of unmanaged switches
  • Simple, yet useful network set-up on top of plug-and-play connectivity
  • Business-friendly and easy-to-use web browser-based management GUI
  • VLAN support for traffic segmentation
  • Quality of Service (QoS) for traffic prioritization
  • Auto "denial-of-service" (DoS) prevention
  • Troubleshoot connection issues via cable test
  • Loop detection (some models) and broadcast storm controls
  • Rate limiting for better bandwidth allocation
  • Port mirroring for network monitoring
  • Jumbo frame support
  • Advanced features such as per port PoE controls
  • Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot
  • 802.3at standard offering 30W/port
  • Fanless and versatile mounting option of desktop and wall-mountable (except for GS324EP)
  • Quiet operation at 32.4dB @ 25 Degree C with rack-mounting option for GS324EP

Key Features

  • Boost your network with this 16-Port Gigabit Ethernet switch, offering lightning-fast data transfers.
  • Power devices like IP cameras and VoIP phones easily with 231W PoE+ support on this managed switch.
  • Enjoy secure and reliable network performance with advanced VLAN and quality of service (QoS) features.
  • Simplify network management using the web-based GUI for easy configuration and real-time monitoring.
  • Connect fiber optic cables using the SFP port for extended range and high-speed network connectivity.
  • This desktop/rackmount switch ensures reliable performance with a robust metal enclosure and silent operation.

What's in the box:

  • Netgear GS316EPP 16-Port 231W PoE+ Gigabit Ethernet Plus Managed Switch
  • Power Adapter
  • Mounting Hardwear
  • Rubber Feet
  • User Manual
  • Netgear 5 Year Limited Warranty
