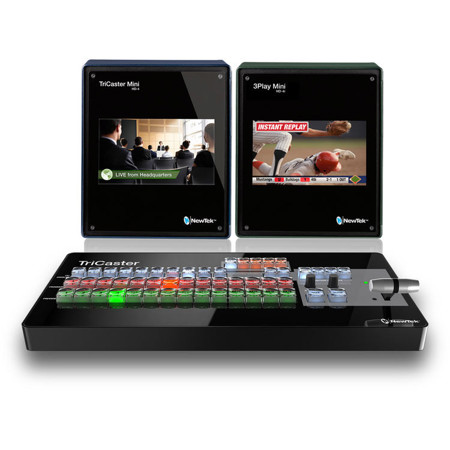

NewTek Live Sports Bundle with TriCaster Mini, Mini Control Surface, 3Play Mini

SKU: NELSSMHD4I3P

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

NewTek Live Sports Bundle with TriCaster Mini, Mini Control Surface, 3Play Mini Specifications

TriCaster Mini HD-4i

TriCaster Mini HD-4i

Jump to...
  • Channels

    16-channels (6 external, 6 internal, 4 M/E buses)

  • Video Inputs

    4x HDMI (auto-detection of format, resolution, and frame rate)

  • Network Sources

    2 live sources (selectable from any available network sources with support for video, audio and alpha channel)

  • Video Output

    2x HDMI
    1 x HDMI (video only)
    1x DVI (video only)
    1x Ethernet port (for live streaming) A/V output to network-connected TriCaster over local network

  • Media

    5 integrated digital media sources for video, graphics and sounds (2 DDRs, 2 GFX and Sound) and 15 buffers

  • Downstream Keyer

    2 primary DSK channels
    1 additional Key layer per M/E bus (each with independent transition controls, 3D DVE, scaling, cropping and integrated TransWarp effects)

  • Audio Input

    2x 1/4" Audio jacks (left and right channels, line level)
    1x 1/4" Microphone jack (mono, mic level)
    Embedded audio from the HDMI inputs

  • Audio Output

    2x 1/4" Audio jacks (left and right channels, line level)
    1x 1/4" Stereo headphone jack
    Embedded audio in the HDMI outputs

  • Multi-View Outputs

    1x HDMI
    1x DVI

  • Video Resolution

    1080p 24/30
    1080i 60
    720p 24/30/60
    480i 60

  • Playback Media Formats

    AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG (1, 2, all profiles, program or transport streams), MP4, WMV, WebM, PSD, PNG, TGA, BMP, JPEG, EXR, RAW, TIF, AIFF, MP3, WAV, and more, with Import Media application for batch import with optional transcoding of files (including Apple ProRes)

  • Latency

    Between 1 and 2 frames

  • Processing

    Video: 4:4:4:4, 32-bit floating point
    Audio: 4 channels, 96 kHz, 32-bit floating point

  • USB Ports

    2x USB 2.0
    2x USB 3.0

  • Streaming

    Up to 720p

  • Recording

    Up to 4 simultaneous video input or output signals in QuickTime (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio), MPEG-2 (High or Normal profile), AVI (SpeedHQ), or H.264 (High or Web quality) file formats

  • Storage

    2x 750 GB internal drives, approximately 30 hours of HD video

  • Display

    7" (17.8 cm) LCD screen for output display

  • Dimensions

    4.6 x 9.2 x 7.9" (11.7 x 23.4 x 20.1 cm)

  • Weight

    9 lb (4.1 kg)

TriCaster Mini Control Surface

Jump to...
  • Dimensions

    16.56 x 8 x 2.25" (42.06 x 20.32 x 5.72 cm)

3Play Mini

Jump to...
  • Video Inputs

    4 simultaneous live video sources over HDMI, with per-input auto-detection of format, resolution, and frame rate
    - Compatible with external video routers manufactured by AJA, Blackmagic Design, Ensemble Designs, Miranda, Utah Scientific, and brands supporting Grass Valley Native Protocol

  • Video Inputs (Contd.)

    -Per-input scaler (including 3:2 intelligent pull-down) and frame synchronizer enabling intermixing of formats
    - Optionally enable automatic color correction and shading to dynamically match color characteristics between inputs

  • Video Outputs

    2 fully independent HDMI playout channels
    1x DVI and 1x HDMI (video only) display ports for auxiliary monitoring or display, with independent color control
    Ethernet connection for A/V output over a local network to TriCaster

  • Output Modes

    A; B; A+B with transitions between playout channels

  • Recording

    Standalone recording of up to 4 simultaneous channels

  • Recording Format

    Native recording up to 1080p resolution in high-quality QuickTime format (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio)

  • Recording Capacity

    2x 750 GB internal drives accommodating a total of -30 hours 1080i (varies by resolution and format; capacity expandable using additional supported storage)
    - Simultaneous recording of up to 4 channels (2 channels per drive) to included storage or other supported storage configurations
    - Supports recording to external USB 3.0 storage and shared storage integration via third-party partner solutions

  • Playback

    Variable-speed playback from -200% to 200% via on-screen controls, companion Web CS, or optional hardware control surface

  • Grab

    Grab still images from output or all inputs and outputs

  • Media Publishing

    Supports direct content upload to YouTube, Facebook, Twitter, FTP, local or external volumes, and network servers

  • Overlay

    1 overlay per playout channel, with independent transition, positioning, scaling, and cropping, and support for picture-in-picture layering of live camera, playback angle, game clock signal, and more

  • Network Inputs

    2 live inputs for overlay application via Gigabit connection, selectable from any available network sources with support for video, audio, and alpha channel
    - Supported sources include networked computers via NewTek iVGA client application, wireless Apple AirPlay devices, NewTek LiveText remote titling software, and a variety of third-party partner solutions

  • Buffers

    Content buffers to store and playback animations, still images, and graphics for overlay application - Shareable across network for watch folder application, with real-time edit and update of content

  • Effects and Transitions

    Standard transitions and customizable animation store transitions supported for transitioning between playout channels and playlist clips
    - Animation Store Creator application included for custom transitions and effects Integrated TransWarp effects engine supports per-pixel alpha blending between sources, real-time 3D warping of video or graphics, and embedded audio

  • Asset Management

    - FastClip information window displays asset data and collects input from keyboard or optional control surface for data entry, editing, navigation, search, and management
    - Tags system to enter and organize metadata via user-defined codes, with support for Microsoft Excel list import
    - Bookmarks to define and transport to action points
    - Supports integration with external MAM platforms, including axle Gear and Square Box Systems CatDV

  • Scoreboard Integration

    Display real-time scoreboard data in on-screen graphics over local network via NewTek LiveText or third-party partner solutions

  • Live Desktop

    - Resizable, full field rate preview monitors for all live sources and playout channels, with optional overlays for audio VU meters and safe areas
    - Optionally display DSK monitors to preview overlay sources
    - Single or dual pane operation of Clips List and Playlist, with undo/redo commands

  • Multi-View

    Supported with 2nd display, including playback data

  • Audio Input

    4 HDMI embedded
    1x 1/4" balanced mic
    2x 1/4" balanced line

  • Audio Output

    2 HDMI embedded
    2x 1/4" balanced line
    1/4" stereo headphone jack

  • Standard

    NTSC

  • Supported Session Formats

    1080/30p, 1080/60i, 720/60p, 720/30p, 480/60p

  • Session Management

    Set up and store session settings in reusable template sessions

  • Processing

    Video: 4:4:4:4, 32-bit Floating Point
    Audio: 4 channels, 96 kHz, 32-bit Floating Point

  • Timecode

    Internal system clock

  • Tally Display

    Supports tally display from NewTek TriCaster system (or other supported system via NewTek SDK) over local network

  • Macros

    Record commands and operation sequences for recall and automation using keyboard, mouse, or compatible control device supporting macro assignment
    - Macro editor for modifying user-defined macro configurations and sequences
    - Augment and extend 3Play Mini operation using macro plug-ins to control external devices

  • External Control

    - Companion Web CS supporting control via mouse or compatible touchscreen device
    - Support for standard MIDI protocol enabling third-party MIDI device control of 3Play Mini operations via macros
    - Support for Advanced Media Protocol (AMP), enabling remote operation of 3Play Mini functions by compatible third-party production systems
    - Support for remote operation of 3Play Mini functions by a companion NewTek TriCaster system

  • Optional Hardware

    Supports tactile control via optional 3Play hardware control surface

  • Monitoring

    DVI and HDMI monitor outputs for user interface and multiview preview displays

  • Display

    7" (18 cm) LCD screen with configurable output (A or B playout channel; external monitor required for user interface)

  • Wi-Fi

    Built-in 802.11ac Wi-Fi standard supports wireless connection to local network for publishing and networking with external devices

  • Bluetooth

    Built-in Bluetooth technology wirelessly supporting keyboard and mouse

  • Power

    AC Mains: 100 - 240 VAC
    1.8 A
    50/60 Hz Frequency

  • Dimensions

    4.6 x 9.2 x 7.9" (11.7 x 23.4 x 20.1cm)

  • Weight

    9 lb (4.1kg)

About NewTek Live Sports Bundle with TriCaster Mini, Mini Control Surface, 3Play Mini

TriCaster Mini - Go make your show
From the office, an event, or from anywhere... with TriCaster Mini, anyone using everyday camcorders can create and publish great video content in minutes, stream it live, and make even the smallest presentation captivate audiences like network-style TV.

Top Features
You don't have to be a video expert, own a studio, lug any complicated equipment around, or use expensive professional cameras to make great content quickly and stream it live in minutes. With everyday camcorders and TriCaster Mini, anyone can make a show with professional results.

• Create your own great multimedia content
• Fast, straightforward, and easy to set up
• All-in-one studio-style system
• Most-complete creative toolset available
• Sized to make and stream content from anywhere
• No need for professional crews or expensive equipment
• HDMI and SDI options available

Nowhere else will you find another solution that includes a complete suite of tools for creativity, control, and content publishing, all in one turnkey package. Just plug in some cameras, a mouse and a keyboard, and you can turn the smallest productions into engaging video content and stream it live in minutes, in the office or on the go.

• Go-anywhere size & shape
• Easy A/V connections for simple setup
• Capture live video
• Mix different visual sources
• Overlay graphics, charts, titles, animations
• Add a presentation
• Key out solid backgrounds and simulate a set
• Webcast programs on a live video stream
• Have guest speakers call in from their webcams
• Record everything so people can watch it on-demand

No matter how simple or sophisticated your vision - or your skill level - TriCaster Mini's complete creative toolset allows you to work with the media content you want, mix it into a production you design, and deliver it to the audiences you serve.

• Use up to four camcorders for live, on-camera action
• Plug in a microphone, or a small audio mixer if you want multiple mics
• Include your own video clips, graphics, music and sound files
• Capture a computer screen, video call, or files from an AirPlay device
• Mix your files and sources in real-time with the TriCaster Mini software
• Output live video to display, projection, live stream, social media
• Save the final production to disk for later viewing
• Record all the camera feeds so you can edit the program later


TriCaster Mini Control Surface
Portable, professional control for live productions of any size. The ideal traveling partner for TriCaster Mini, the TriCaster Mini CS provides studio-style control and a small footprint to deliver professional results from the office, an event, or anywhere.

Features
• Intuitive layout mapped to the TriCaster Mini live desktop
• Large, backlit buttons and premium T-Bar for confident, comfortable performance
• Faster, more accurate interaction than point and click
• Attractive, compact design and simple, plug-and-play setup
• TriCaster Mini CS is also compatible with TriCaster 8000, TriCaster 860, TriCaster 460 and TriCaster 410.


3Play Mini
Produce Sports Like a Pro. Anywhere.
Sports video producers can deliver a top-level fan experience from any location with the ultra-portable 3Play Mini. With instant replay, hi-resolution slow motion replay, transitions, high-end graphics, and more, the 3Play Mini live sports production suite is as powerful as it is portable.

Top Features
Create audience-engaging coverage with a multi-camera replay and slow-motion system that fits in a backpack and captures all the action, wherever it's happening. With 3Play Mini, home court advantage is yours!
• Produce instant replays, super-resolution slow motion, highlights, and more
• Add pro-level transitions and graphics into your programs
• Do much more than expensive replay systems for a fraction of the price-and size
• Plug into a switcher or video board and serve up every angle of excitement
• Control via a Web browser-just use a mobile device; no bulky hardware controller or additional cabling to pack
• Save time with a quick and easy set up
• Hand-carry size makes even the smallest or most extreme venues accessible

Don't be constrained to a rack, booth, or truck. 3Play Mini gives you dozens of fan-favorite tools you can carry anywhere in one small solution. Plug in a few cameras, feed into a switcher or a video board, and you're ready to produce championship-level productions in just moments.

• Capture the game's greatest moments with slow motion, replay, and multi-angle camera switching
• With a Web-based control UI that you can access from any mobile device, keep your footprint small and your workflow fluid.
• ISO recording captures all angles for instant replay and saves them for real-time highlights editing or postproduction of later shows
• Clip, store, tag, and edit plays while recording live action
• Add graphics with names, scores, sponsor logos, and more without adding hardware
• Reach more fans with instant social sharing
• Monitor the live output with confidence on a built-in 7-inch LCD screen
• Cover more games with a solution that can be operated by a stringer
• Small size, easy-to-carry shape, and quick setup

Keep spectators excited about coming to your games-or watching them on screen. 3Play Mini is your all-access pass into tight, remote locations to bring the action to your fans, keep them engaged, and build loyalty with every production.

• Plug in a few HD cameras to capture all the angles
• Reduce equipment and setup time with video and audio on the same cable
• Output to a switcher or video board to bring fans close to the action
• Produce game-winning sports media with a complete creative toolset-graphics, camera switching, audio, and special effects
• Set your show apart by including super-resolution slow motion, custom 3D graphics, stingers, and overlays
• Grow your fan-base with the ability to instantly share clips to social media
• Use just the tools you want or use the total package to take your productions to the extreme
• Get out there! And carry 3Play Mini with you anywhere.

NewTek Live Sports Bundle with TriCaster Mini, Mini Control Surface, 3Play Mini Features

  • TriCaster Mini HD-4i Features:
  • Create your own great multimedia content
  • Fast, straightforward, and easy to set up
  • All-in-one studio-style system
  • Most-complete creative toolset available
  • Sized to make and stream content from anywhere
  • No need for professional crews or expensive equipment
  • HDMI and SDI options available
  • Mini Control Surface Features:
  • Intuitive layout mapped to the TriCaster Mini live desktop
  • Large, backlit buttons and premium T-Bar for confident, comfortable performance
  • Faster, more accurate interaction than point and click
  • Attractive, compact design and simple, plug-and-play setup
  • TriCaster Mini CS is also compatible with TriCaster 8000, TriCaster 860, TriCaster 460 and TriCaster 410.
  • 3Play Mini Features:
  • Produce instant replays, super-resolution slow motion, highlights, and more
  • Add pro-level transitions and graphics into your programs
  • Do much more than expensive replay systems for a fraction of the price-and size
  • Plug into a switcher or video board and serve up every angle of excitement
  • Control via a Web browser-just use a mobile device; no bulky hardware controller or additional cabling to pack
  • Save time with a quick and easy set up
  • Hand-carry size makes even the smallest or most extreme venues accessible

Key Features

  • TriCaster Mini HD-4i Highlights:
  • Create your own great multimedia content
  • Fast, straightforward, and easy to set up
  • Mini Control Surface Highlights:
  • Intuitive layout mapped to the TriCaster Mini live desktop
  • 3Play Mini Highlights:

What's in the box:

  • TriCaster Mini HD-4i with Built-In 7" Display
  • Keyboard
  • Mouse
  • Cable Retention Bracket
  • TriCaster Mini Control Surface
  • 3Play Mini
  • 1 Year Limited Warranty
