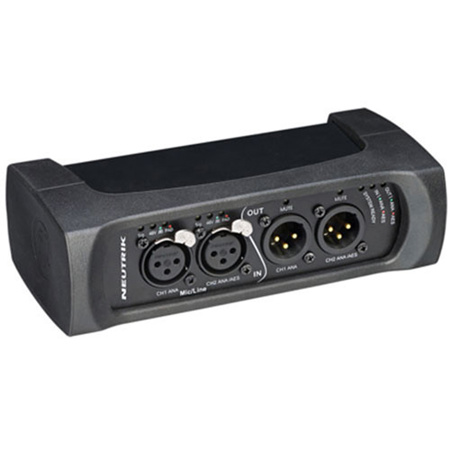

Neutrik NA2-IO-DPRO 2-Channel XLR to Dante Interface
See all Neutrik items

Neutrik NA2-IO-DPRO 2-Channel XLR to Dante Interface

SKU: NENA2IODPRO
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the primary use of the NA2-IO-DPRO 2-Channel XLR to Dante Interface?

The primary use of the NA2-IO-DPRO is to connect legacy audio equipment with the Dante network. It acts as a bridge between your classic audio gear and the modern Dante network, ensuring seamless integration.

How can I adjust the audio parameters on the NA2-IO-DPRO?

You can adjust the audio parameters on the NA2-IO-DPRO either by using Neutrik's dedicated DPRO controller or a variety of common control software.

What makes the NA2-IO-DPRO suitable for tough stage conditions?

The NA2-IO-DPRO is designed with lockable connectors and removable rubber protection. These features make it a robust and reliable solution for even the most challenging stage conditions.

What are the mounting options for the NA2-IO-DPRO?

The NA2-IO-DPRO offers versatile mounting options. With optional mounting brackets or a rack panel, you can install the box below tables, in floor boxes, racks, or even on a truss.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Neutrik NA2-IO-DPRO Specifications

  • Material

    Housing: Metal
    Protection: Rubber

  • Bit Depth

    16-, 24-, or 32-Bit

  • Sample Rates

    44.1, 48, 88.2, or 96 kHz

  • Latency

    0.25 ms or More (Depending on User Selection)

  • Inputs

    2x XLR 3-Pin Female (Balanced, Mic/Line Level or AES/EBU Digital)

  • Outputs

    2x XLR 3-Pin Male (Balanced, Mic/Line Level or AES/EBU Digital)

  • Ethernet Connectivity

    1x RJ45 1000Base-T (PoE Support)

  • Pad

    -16 dB

  • Gain

    0 to 67 dB (3 dB Steps)

  • Input Impedance

    >7.5 Kilohms (Balanced)

  • Maximum Input Level

    Pad On: +24 dBu
    Pad Off: +8 dBu

  • Maximum Output Level

    +24 dBu

  • Dynamic Range

    Inputs: >112 dB A-Weighted (Bandwidth 22.4 kHz, Minimum Input Gain)
    Outputs: >112 dB A-Weighted (Bandwidth 22.4 kHz)

  • Signal-to-Noise Ratio

    >112 dB A-Weighted (Bandwidth 22.4 kHz)

  • Frequency Response

    20 Hz to 20 kHz ( +/-0.5 dB)

  • Crosstalk

    -100 dB (Adjacent Input/Output Channels, Minimum Input Gain)

  • Equivalent Input Noise

    -128 dBu A-Weighted (67 dB Gain)

  • Residual Output Noise

    -88 dBu A-Weighted

  • Operating Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Storage Temperature

    -40 to 302 Degree F (-40 to 150 Degree C)

  • Power Requirements

    PoE Switch or PoE Midspan Power Injector (IEEE 802.3af or 802.3at, Class 2 or No Classification at 6 W)

  • App System Requirements

    macOS 10.12 or Later:
    2 GB RAM or More
    1280 x 1024 Minimum Screen Resolution

    Windows 7 or Later:
    2 GB RAM or More
    1280 x 1024 Minimum Screen Resolution

  • Dimensions (W x H x D)

    6.5 x 2.0 x 3.2" (16.4 x 5.1 x 8.2cm) (Including Rubber Protection)
    5.9 x 1.6 x 2.6" (15.1 x 4.1 x 6.6cm) (Excluding Rubber Protection)

  • Weight

    1.2 lbs (0.5kg)

About Neutrik NA2-IO-DPRO

Are you seeking a seamless way to integrate your legacy audio equipment with the Dante network? Look no further than the NA2-IO-DPRO 2-Channel XLR to Dante Interface. This 2-input, 2-output breakout box is expertly designed to bridge the gap between your classic audio gear and the modern Dante network.

The NA2-IO-DPRO is equipped with high-quality microphone preamps, ensuring superior sound quality and performance. It also boasts two Dante ports, providing the flexibility for either a redundant setup or daisy chaining, enhancing your audio networking capabilities.

Adjusting audio parameters is a breeze with the NA2-IO-DPRO. You can use either Neutrik's dedicated DPRO controller or opt for a variety of common control software, giving you the freedom to work in a way that suits your needs best.

Designed with the rigors of stage use in mind, all connectors on the NA2-IO-DPRO are lockable. This, coupled with the removable rubber protection, provides a robust and reliable solution for even the most challenging stage conditions.

The NA2-IO-DPRO also offers versatile mounting options. With optional mounting brackets or a rack panel, you can conveniently install the box below tables, in floor boxes, racks or even on a truss. This makes the NA2-IO-DPRO 2-Channel XLR to Dante Interface a versatile and indispensable tool for any audio professional looking to modernize their setup without sacrificing the quality and reliability of their legacy equipment.

Neutrik NA2-IO-DPRO Features

  • Lockable audio and network connections
  • Connect up to two analog line or mic signals to a Dante network
  • Connect AES/EBU signals to a Dante network and provide an AES/EBU signal from the Dante network
  • Feed non Dante ready amplifiers, speakers or mixing desks with signals from the Dante network
  • Primary and Secondary Dante ports
  • Setting of all audio parameters via the DPRO controller software, Yamaha CL/QL mixer and QSYS plug-in
  • Different mounting options (rack, truss, floorbox, table mounting)
  • Requires a Power over Ethernet switch or a PoE injector (802.3 af/at/bt)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Seamless integration of legacy audio equipment with Dante network
  • High-quality microphone preamps for superior sound performance
  • Dual Dante ports for redundant setup or daisy chaining
  • Adjustable audio parameters via Neutrik's DPRO controller or common control software
  • Lockable connectors and removable rubber protection for robust stage use
  • Versatile mounting options with optional brackets or rack panel for various setups

What's in the box:

  • NA2-IO-DPRO 2-Channel XLR to Dante Interface
  • Neutrik 6 Month Limited Warranty
