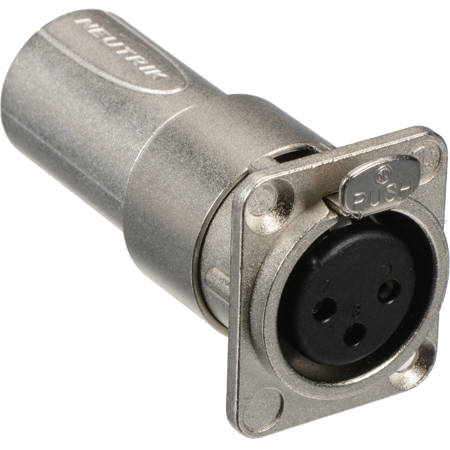

Neutrik NA3FDM XLR 3-Pin Female to Male Feedthrough Adapter for Panel Mount

SKU: NENA3FDM MFR: NA3FDM
$9.69
Earn VIP Reward Points

Key Features

  • Get superior audio signal transfer with this Neutrik XLR female to male adapter.
  • Achieve reliable panel mount connections using this durable Neutrik feedthrough adapter.
  • Extend your audio cable reach effortlessly with this high-quality XLR coupler solution.
  • Ensure optimal sound quality with robust shielding against interference in this adapter.
  • This Neutrik adapter offers broad compatibility, seamlessly integrating into your setup.
  • Enjoy long-lasting performance with an XLR adapter designed for over 1000 mating cycles.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NA3FDM Specifications

General

General

Jump to...
  • Connection Type

    Adapter

Electrical

Jump to...
  • Capacitance Between Contacts

    <= 4 pF

  • Contact Resistance

    <= 5 m Ohm

  • Dielectric Strength

    1.5 kVdc

  • Insulation Resistance

    > 2 G Ohm (Initial)

  • Rated Current Per Contact

    16 A

  • Rated Voltage

    < 50 V

Mechanical

Jump to...
  • Insertion Force

    <= 20 N

  • Withdrawal Force

    <= 20 N

  • Lifetime

    > 1000 Mating Cycles

  • Wiresize

    Max. 2.5 mm 2
    Max. 14 AWG

  • Wiring

    Solder Contacts

  • Locking Device

    Latch Lock

  • Chassis Shape

    D

Material

Jump to...
  • Contact Plating

    2 microm Ag Over 2 microm Ni

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking Element

    Steel Ck67

  • Shell

    Zinc Diecast (ZnAl4Cu1)

  • Shell Plating

    Nickel

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Standard Compliance

    IEC 61076-2-103

  • Protection Class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature Range

    -22 Degree F To 176 Degree F (-30 Degree C to 80 Degree C)

  • UPC Code

    7613187002199

About Neutrik NA3FDM

Over the years, Neutrik has established itself as a leader in audio connector innovation, and the NA3FDM XLR 3-Pin Female to Male Feedthrough Adapter is no exception. Crafted with a rugged die-cast shell, this adapter exemplifies the durability and robust construction synonymous with the NC3 series connectors. Its high-quality build ensures reliable signal transmission, making it an indispensable tool for audio professionals.

The adapter's sturdy design not only contributes to its longevity but also to its professional appearance, seamlessly integrating with your existing audio equipment. The compact design of the NA3FDM makes it an ideal choice for panel mounting, offering a streamlined solution that conserves space and enhances the organization of your setup.

Whether you're dealing with complex studio installations or live sound environments, this feedthrough adapter is engineered to convert a female XLR connector to a male XLR connector with ease. Its reliable performance and ease of installation make it a preferred choice for those who require a dependable audio connection in a sleek, space-saving format.

Choose the Neutrik NA3FDM XLR 3-Pin Female to Male Feedthrough Adapter for a professional-grade connection that upholds the integrity of your audio applications. This adapter is not only a testament to Neutrik's commitment to high-quality audio solutions but also a practical addition to any audio technician's toolkit.

Neutrik NA3FDM Features

  • 3 pole XLR feedthrough adapter
  • D-flange chassis mount
  • Male to female and vice versa
  • Utilizes XX-components

Key Features

  • Get superior audio signal transfer with this Neutrik XLR female to male adapter.
  • Achieve reliable panel mount connections using this durable Neutrik feedthrough adapter.
  • Extend your audio cable reach effortlessly with this high-quality XLR coupler solution.
  • Ensure optimal sound quality with robust shielding against interference in this adapter.
  • This Neutrik adapter offers broad compatibility, seamlessly integrating into your setup.
  • Enjoy long-lasting performance with an XLR adapter designed for over 1000 mating cycles.

What's in the box:

  • NA3FDM XLR 3-Pin Female to Male Feedthrough Adapter
  • Neutrik 6 Month Limited Warranty
