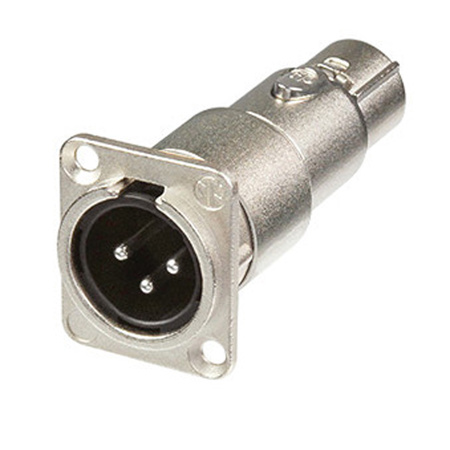

Neutrik NA3MDF XLR 3-Pin Male to Female Feedthrough Adapter for Panel Mount

SKU: NENA3MDF MFR: NA3MDF
$9.64
Earn VIP Reward Points

Key Features

  • Get reliable audio connections with this Neutrik XLR feedthrough adapter.
  • Achieve low noise and superior signal transfer with gold-plated XLR contacts.
  • Durable zinc diecast shell ensures long-lasting performance for your audio setup.
  • Panel mount design offers a secure and stable XLR connection point.
  • Use this XLR adapter for extending cable runs or creating custom panels.
  • Enjoy broad compatibility with standard XLR cables and audio equipment.
See More Product Details

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NA3MDF Specifications

General

General

Jump to...
  • Connection Type

    Adapter

Electrical

Jump to...
  • Capacitance Between Contacts

    <= 4 pF

  • Contact Resistance

    <= 5 m Ohm

  • Dielectric Strength

    1.5 kVdc

  • Insulation Resistance

    > 2 G Ohm (Initial)

  • Rated Current Per Contact

    16 A

  • Rated Voltage

    < 50 V

Mechanical

Jump to...
  • Insertion Force

    <= 20 N

  • Withdrawal Force

    <= 20 N

  • Lifetime

    > 1000 Mating Cycles

  • Wiresize

    Max. 2.5 mm 2
    Max. 14 AWG

  • Wiring

    Solder Contacts

  • Locking Device

    Latch Lock

  • Chassis Shape

    D

Material

Jump to...
  • Contact Plating

    2 microm Ag Over 2 microm Ni

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking Element

    Steel Ck67

  • Shell

    Zinc Diecast (ZnAl4Cu1)

  • Shell Plating

    Nickel

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Standard Compliance

    IEC 61076-2-103

  • Protection Class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature Range

    -22 Degree F To 176 Degree F (-30 Degree C to 80 Degree C)

  • UPC Code

    7613187002243

About Neutrik NA3MDF

How to streamline your audio setup with precision and reliability Look no further than the Neutrik NA3MDF XLR 3-Pin Male to Female Feedthrough Adapter. Expertly designed for seamless integration into your studio wall panel, patchbay, or stage box, this robust adapter is the quintessential solution for audio professionals seeking to convert male XLR connectors to female XLR connectors with ease.

Crafted with a die-cast zinc chassis, the Neutrik NA3MDF ensures a durable and high-quality connection that stands the test of time, even in the most demanding of environments. Its sturdy construction is complemented by a steel-element latch lock, guaranteeing secure and stable connections that prevent accidental disconnections and maintain the integrity of your audio signal.

The versatility of the Neutrik NA3MDF adapter also opens up a world of creative possibilities. Whether you're looking to internally mic drum shells or install cable-ready XLR jacks on the exterior of your equipment, this adapter provides a reliable and professional-grade solution. Its compatibility with standard panel mount systems makes it an ideal choice for those looking to enhance their existing setup without the need for extensive modifications.

For audio technicians and enthusiasts who prioritize both form and function, the Neutrik NA3MDF XLR 3-Pin Male to Female Feedthrough Adapter is an indispensable tool. Its seamless integration, coupled with its robust and reliable design, ensures that your audio connections are not only secure but also maintain the highest quality of sound transmission.

Elevate your audio experience with the Neutrik NA3MDF, and rest assured that your connections are in the hands of a product that embodies durability, quality, and reliability. If you require assistance with installation or have any inquiries, our knowledgeable team is always ready to provide expert guidance and support.

Neutrik NA3MDF Features

  • 3 pole XLR feedthrough adapter
  • D-flange chassis mount
  • Male to female and vice versa
  • Utilizes XX-components

Key Features

  • Get reliable audio connections with this Neutrik XLR feedthrough adapter.
  • Achieve low noise and superior signal transfer with gold-plated XLR contacts.
  • Durable zinc diecast shell ensures long-lasting performance for your audio setup.
  • Panel mount design offers a secure and stable XLR connection point.
  • Use this XLR adapter for extending cable runs or creating custom panels.
  • Enjoy broad compatibility with standard XLR cables and audio equipment.

What's in the box:

  • NA3MDF XLR 3-Pin Male to Female Feedthrough Adapter for Panel Mount
  • Neutrik 6 Month Limited Warranty
