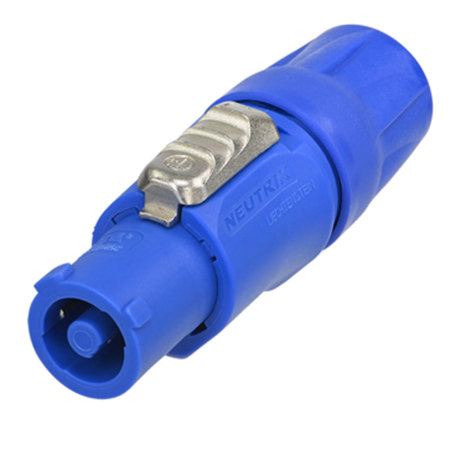

Neutrik NAC3FCA powerCON Power-In Lockable Female Cable Connector, Blue

SKU: NENAC3FCA

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main function of the NAC3FCA powerCON Power-In Lockable Female Cable Connector?

This high-quality connector is designed to provide a secure and reliable power connection for electronic devices. It's especially suited for professional audio and video applications.

What makes this connector different from traditional appliance couplers?

The NAC3FCA powerCON Power-In Lockable Female Cable Connector is more rugged and durable than traditional appliance couplers. It also features a unique locking mechanism for added security.

What devices can I use this connector with?

This connector is designed to be used with a variety of devices that require a power connection, such as mixers, amplifiers, and other audio and video equipment.

Who is the manufacturer of the NAC3FCA powerCON Power-In Lockable Female Cable Connector?

The connector is manufactured by Neutrik, a reputable brand known for producing high-quality connectors.

What does it mean that the powerCON is a connector without breaking capacity?

This means that the powerCON should not be connected or disconnected under load or live conditions. It is designed to provide a steady and uninterrupted power supply.

Reviews about this item

Review Summary

Neutrik NAC3FCA Specifications

General

General

Jump to...
  • Color

    Blue

  • Gender

    Female

Electrical

Jump to...
  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    4 kVdc / 2.8 kVac

  • Insulation resistance

    > 0.1 G Ohm (after damp heat test IEC 68-2-30)

  • Number of electronical contacts

    2 + PE

  • Rated current per contact

    20 A rms

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Cable O.D.

    6 - 15 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    2.5 sq. mm
    12 AWG

  • Locking device

    Quick Lock

  • Cable O.D. Range

    Cable O.D. range limited to 6 mm - 14 mm acc. VDE

Material

Jump to...
  • Contact plating

    4 microm Ag

  • Contacts

    Bronze (CuSn6)

  • Insert

    Polyamide (PA 6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Polyamide (PA 6 30 % GR)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

About Neutrik NAC3FCA

Let the NAC3FCA powerCON Power-In Lockable Female Cable Connector, in a striking blue color, be your go-to solution for secure and reliable power connections. Manufactured by the renowned brand Neutrik, this connector is designed with a unique locking mechanism, ensuring a safe and secure connection for your electronic devices.

This high-quality connector is more than just a replacement for appliance couplers. It's a rugged and durable solution that stands up to the demands of professional audio and video applications. With its three-conductor equipment AC connector, it provides contacts for line, neutral, and pre-mating ground contact, offering comprehensive connectivity for your devices.

Please note, the powerCON is a connector without breaking capacity, meaning it should not be connected or disconnected under load or live conditions. This innovative connector is designed to be used with a variety of devices that require a power connection, such as mixers, amplifiers, and other audio and video equipment. Trust in the reliability and durability of the NAC3FCA powerCON Power-In Lockable Female Cable Connector for all your professional connectivity needs.

Neutrik NAC3FCA Features

  • Power-in (blue) and power-out (gray) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognized components
  • VDE certified
  • SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Key Features

  • Lockable cable connector by renowned brand Neutrik, ensuring secure power connections
  • High-quality power-in connector designed for professional audio and video applications
  • Innovative design replaces traditional appliance couplers for a more rugged and reliable solution
  • Notable blue color for easy identification among other cables and connectors

What's in the box:

  • NAC3FCA powerCON Power-In Lockable Female Cable Connector (Blue)
  • Neutrik 6 Month Limited Warranty
