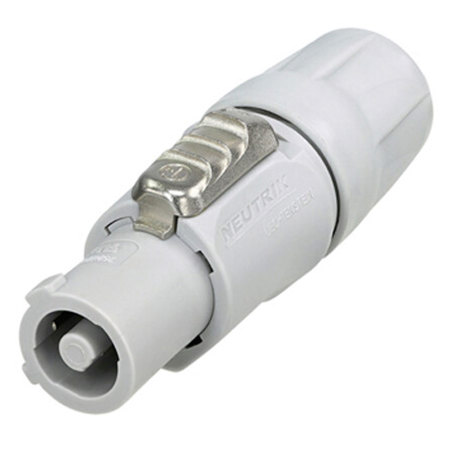

Neutrik NAC3FCB powerCON Power-In Lockable Female Cable Connector, Gray

SKU: NENAC3FCB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NAC3FCB Specifications

General

General

Jump to...
  • Color

    Gray

  • Gender

    Female

Electrical

Jump to...
  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    4 kVdc / 2.8 kVac

  • Insulation resistance

    > 0.1 G Ohm (after damp heat test IEC 68-2-30)

  • Number of electronical contacts

    2 + PE

  • Rated current per contact

    20 A rms

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Cable O.D.

    6 - 15 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    2.5 sq. mm
    12 AWG

  • Locking device

    Quick Lock

  • Cable O.D. Range

    Cable O.D. range limited to 6 mm - 14 mm acc. VDE

Material

Jump to...
  • Contact plating

    4 microm Ag

  • Contacts

    Bronze (CuSn6)

  • Insert

    Polyamide (PA 6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Polyamide (PA 6 30 % GR)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

About Neutrik NAC3FCB

Be assured of a secure and reliable power connection with the NAC3FCB powerCON Power-In Lockable Female Cable Connector in gray. This robust connector, designed by the reputable brand Neutrik, is a locking 3-conductor equipment AC connector, featuring contacts for line, neutral, and pre-mating ground contact.

Constructed with durable screw terminals, this high-quality connector is designed to replace appliance couplers in situations where a rugged solution is essential. Its lockable feature provides an added layer of security, protecting against accidental disconnections and ensuring a steady power supply to your electronic devices such as cameras, lights, and other professional equipment.

Ideal for use in demanding environments like film and television production, live events, and other professional settings, the NAC3FCB powerCON Power-In Lockable Female Cable Connector is a testament to Neutrik's commitment to providing top-tier connectivity solutions for the professional audio and video industry.

Please note: The powerCON is a connector without breaking capacity, meaning it should not be connected or disconnected under load or live to ensure safety and longevity.

Neutrik NAC3FCB Features

  • Power-in (blue) and power-out (gray) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • Unique Neutrik chuck type strain relief
  • Improved kink protection by two-component bushing
  • UL, cUL recognized components
  • VDE certified
  • SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Key Features

  • Trust Neutrik powerCON connectors for a secure, lockable power connection every time!
  • This lockable female cable connector ensures your power supply stays connected, always.
  • With a 20A current capacity, this power-in connector handles high-power applications easily.
  • The gray Neutrik connector offers a reliable power connection for professional audio setups.
  • Built with robust materials, this power supply connector withstands over 1000 mating cycles.
  • Quick Lock design makes this Neutrik powerCON connector a breeze to set up and secure.

What's in the box:

  • NAC3FCB powerCON Power-In Lockable Female Cable Connector (Gray)
  • Neutrik 6 Month Limited Warranty
