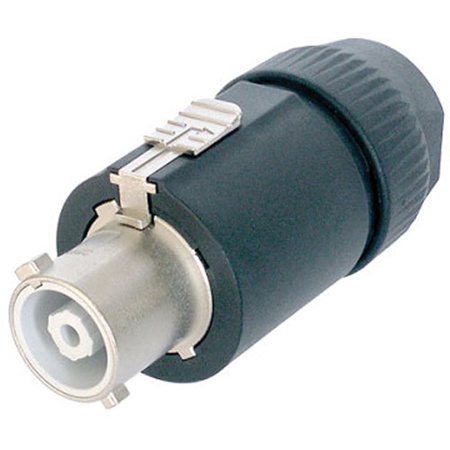

Neutrik NAC3FC-HC powerCON 32 A Female Cable Connector

SKU: NENAC3FCHC MFR: NAC3FC-HC
$21.76
Earn VIP Reward Points

Key Features

  • This Neutrik powerCON connector ensures a secure power connection for your equipment.
  • The NAC3FC-HC female cable connector is ideal for professional audio and lighting setups.
  • With a 32A rating, this power supply connector handles high-current applications easily.
  • Quick Lock design offers fast and reliable mating, perfect for on-the-go setups.
  • Heavy-duty construction guarantees durability, withstanding over 1000 mating cycles.
  • Its robust strain relief accepts 8-20 mm cables, providing a secure, long-lasting connection.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025

Protect your gear with Adorama Protect.* Learn more

1 Year

$2.19

2 Year

$3.79

3 Year

$5.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Neutrik NAC3FC-HC Specifications

General

General

Jump to...
  • Connection Type

    powerCON

  • Gender

    female

Electrical

Jump to...
  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    4 kVdc / 2.8 kVac

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    32 A (30A for cUL)

  • Rated voltage

    250 V ac

  • IEC 62386-1 compliant

    up to 4000 W rms

Mechanical

Jump to...
  • Cable O.D.

    8 - 20 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    2.5 - 6 sq. mm
    14 - 10 AWG

  • Wiring

    screw terminals

  • Locking device

    Quick Lock

  • Contact plating

    4 microm Ag

Material

Jump to...
  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 25 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Polyamide (PA 6 30 % GR)

  • Strain relief

    Polyacetal (POM)

  • Flammability

    UL 94 V-0

Environmental

Jump to...
  • Protection class

    IP 20 (mated)

  • Safety Requirements

    EN/IEC 61984

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -13 Degree F to +158 Degree F (-25 Degree C to +70 Degree C)

About Neutrik NAC3FC-HC

Under the category of high-capacity power connectors, the NAC3FC-HC powerCON 32 A Female Cable Connector stands out as a robust and reliable solution for high current capacity applications. Rated for 32 A, this single-phase AC appliance cable connector is designed to withstand the demands of high power distribution systems.

Ideal for professional audio and lighting equipment installations, this connector is not only durable but also offers a non-standardized 3-pole connection system. This unique feature ensures it can cater to the specific needs of high-powered systems without compromising on safety or efficiency.

The NAC3FC-HC powerCON 32 A Female Cable Connector is equipped with contacts for phase, neutral, and protective earth (ground) conductors. These are rated for currents up to 32 A and for voltages up to 250V, making it a versatile choice for a wide range of electrical applications.

In the realm of power connectors, the NAC3FC-HC powerCON 32 A Female Cable Connector is a testament to the blend of robust design and high performance. It is an essential component for any professional audio or lighting setup, ensuring reliable and efficient power distribution.

Neutrik NAC3FC-HC Features

  • 250 V ac, 32 A single-phase (for ambient temperatures up to 35 Degree C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Cable O.D. Range: 8 - 20mm
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm 2 (AWG 14 - 10)
  • Excellent cable handling and protection
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved
  • IEC 62368-1 compliant up to 4000 W

Key Features

  • This Neutrik powerCON connector ensures a secure power connection for your equipment.
  • The NAC3FC-HC female cable connector is ideal for professional audio and lighting setups.
  • With a 32A rating, this power supply connector handles high-current applications easily.
  • Quick Lock design offers fast and reliable mating, perfect for on-the-go setups.
  • Heavy-duty construction guarantees durability, withstanding over 1000 mating cycles.
  • Its robust strain relief accepts 8-20 mm cables, providing a secure, long-lasting connection.

What's in the box:

  • NAC3FC-HC powerCON 32 A Female Cable Connector
  • Neutrik 6 Month Limited Warranty
