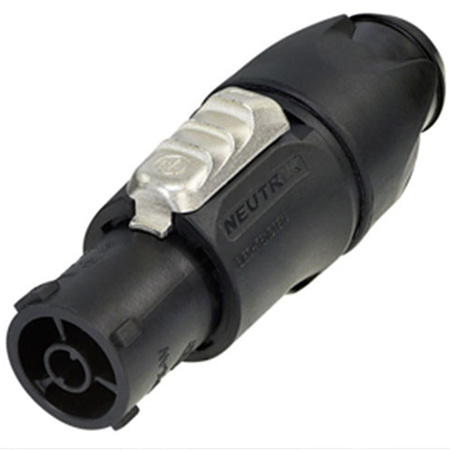

Neutrik NAC3FX-W-TOP powerCON TRUE1 Lockable Female Cable Connector, Black

SKU: NENAC3FXWTOP MFR: NAC3FX-W-TOP
$10.36
$12.08
Save: $1.72 (14%)
Earn VIP Reward Points

Key Features

  • Ensure a secure power connection with this lockable, TRUE1 powerCON extension cord connector.
  • This Neutrik female cable connector offers IP65 protection, ideal for outdoor power supply needs.
  • Rated for 16A, this black power connector provides a reliable power source for your devices.
  • Withstands over 5000 mating cycles, ensuring a long-lasting, durable power extension solution.
  • The NAC3FX-W-TOP connector's robust design handles temperatures from -22°F to +176°F.
  • Use this power cable connector with cables 6-12mm for a secure and dependable connection.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NAC3FX-W-TOP Specifications

General

General

Jump to...
  • Color

    Black

  • Gender

    Female

Electrical

Jump to...
  • Contact resistance

    <= 2 m Ohm

  • Dielectric strength

    4 kVdc / 2.8 kVac

  • Insulation resistance

    > 0.1 G Ohm (after damp heat test IEC 68-2-30)

  • Number of electronical contacts

    2 + PE

  • Rated current per contact

    16 A rms (USA: 20 A)

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Cable O.D.

    6 - 12 mm

  • Lifetime

    > 5000 mating cycles

  • Wiresize

    1.0 - 2.5 sq. mm
    12 AWG

Material

Jump to...
  • Contact plating

    2 microm Ag

  • Contacts

    Bronze (CuSn0.2)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    ZuAl4Cu1

  • Shell

    Polyamide (PA 6.6 30 % GR)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 V-0

  • Protection class

    IP65, UL50E enclosure type 4 (mated)

  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

  • UPC Code

    7613187011832

About Neutrik NAC3FX-W-TOP

After investing in high-end audio or video equipment, ensure a secure and reliable power connection with the NAC3FX-W-TOP powerCON TRUE1 Lockable Female Cable Connector in Black. This robust connector, manufactured by the reputable brand Neutrik, is designed with screw terminals and a unique locking mechanism, providing an extra layer of security for your equipment and cables.

Engineered for outdoor use, this durable connector is a sturdy 16 A true mains connector, making it an ideal choice for professional audio or video setups exposed to the elements. It's designed to replace appliance couplers in situations where a rugged solution is required, ensuring a safe and stable power connection even in challenging environments.

One of the standout features of this high-quality connector is its breaking capacity (CBC). This means it can be safely connected or disconnected under load or live, offering flexibility and convenience during setup or breakdown.

Compatible with the powerCON TRUE1 locking system, this reliable female connector is versatile and can be used with a variety of power cables. Trust in the NAC3FX-W-TOP powerCON TRUE1 Lockable Female Cable Connector to deliver consistent, high-quality performance for your professional audio or video needs.

Neutrik NAC3FX-W-TOP Features

  • Heavy duty sealed power connector for harsh and demanding environment
  • IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Key Features

  • Ensure a secure power connection with this lockable, TRUE1 powerCON extension cord connector.
  • This Neutrik female cable connector offers IP65 protection, ideal for outdoor power supply needs.
  • Rated for 16A, this black power connector provides a reliable power source for your devices.
  • Withstands over 5000 mating cycles, ensuring a long-lasting, durable power extension solution.
  • The NAC3FX-W-TOP connector's robust design handles temperatures from -22°F to +176°F.
  • Use this power cable connector with cables 6-12mm for a secure and dependable connection.

What's in the box:

  • NAC3FX-W-TOP powerCON TRUE1 Lockable Female Cable Connector (Black)
  • Neutrik 6 Month Limited Warranty
