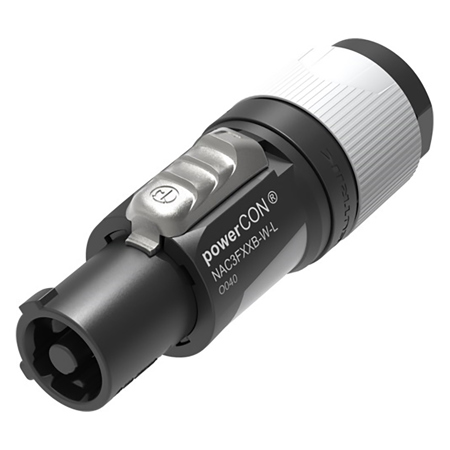

Neutrik NAC3FXXB-W-L powerCON Lockable Female Cable Connector, Gray

SKU: NENAC3FXXBWL MFR: NAC3FXXB-W-L
$9.20
Earn VIP Reward Points

Key Features

  • This Neutrik powerCON connector offers a secure, lockable twist lock, preventing accidental disconnections.
  • Ideal for professional audio, lighting, and stage equipment needing a reliable power supply connection.
  • Featuring screw-type terminals, this female cable connector ensures easy and robust wire termination.
  • With a durable polyamide shell, this power connector withstands rigorous use, ensuring long-term reliability.
  • Rated up to 20A, this heavy-duty powerCON connector supports high-current applications safely and efficiently.
  • The gray-colored power connector is easily identifiable, simplifying setup and troubleshooting in complex systems.
See More Product Details
New Item?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NAC3FXXB-W-L Specifications

General

General

Jump to...
  • Color

    Gray

  • Connector 1

    1x PowerCON Female

  • Connector 2

    1x Proprietary

Electrical

Jump to...
  • Contact resistance

    <= 2 m Ohm

  • Dielectric strength

    > 3 kVac (after mating cycles)

  • Insulation resistance

    > 10 G Ohm (initially)

  • Number of electrical contacts

    2 + PE

  • Rating

    cUL 60320-1: 20 A 127 V AC
    UL USA 498: 20 A 250 V AC

Mechanical

Jump to...
  • Cable O.D.

    0.39 - 0.62" (10 - 16mm)

  • Lifetime

    Typically 5000 mating cycles

  • Wire size

    1.5 - 2.5 sq. mm
    14 - 12 AWG

  • Locking device

    Twist lock

  • Termination

    Screw type terminals

Material

Jump to...
  • Contact plating

    Ag

  • Contacts

    Copper Alloy

  • Insert

    Polyamide (PA6.6)

  • Locking element

    Zinc diecast

  • Shell

    Polyamide (PA6) / TPE

  • Strain relief

    Polyketone

  • Bushing

    Polypropylene / TPE

Environmental

Jump to...
  • Temperature range

    -27.4 Degree F to 176 Degree F (-33 Degree C to 80 Degree C)

  • Protection class

    IP20

  • Flammability acc. to UL94

    V-0

About Neutrik NAC3FXXB-W-L

IEC EN 60320-1 compliant | Accepted for cord sets as per IEC EN 60799:2021
Locking AC mains cable connector, keyed and color coded (gray) for power-out, screw terminal assembly, for cable diameters 10 - 16mm. The powerCON FXXB is a single phase (3 conductor) lockable power connector with Circuit Breaking Capability when mated with powerCON XX Series receptacles. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

Neutrik NAC3FXXB-W-L Features

  • IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL 817 and equipment acc. to IEC 62368-1 UL US 498 / UL CA 498
  • Ergonomic design with slip-proof two-component molded housing
  • Power-out (Gray) version with different keying to avoid the possibility of intermating
  • Unique NEUTRIK locking bushing and strain relief for cable diameters 0.39 to 0.62" (10 to 16mm)
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy and reliable twist lock system
  • Improved kink protection by two-component bushing

Warranty Information

This product has a limited warranty of 6 months for parts and 6 months for labor.

Key Features

  • This Neutrik powerCON connector offers a secure, lockable twist lock, preventing accidental disconnections.
  • Ideal for professional audio, lighting, and stage equipment needing a reliable power supply connection.
  • Featuring screw-type terminals, this female cable connector ensures easy and robust wire termination.
  • With a durable polyamide shell, this power connector withstands rigorous use, ensuring long-term reliability.
  • Rated up to 20A, this heavy-duty powerCON connector supports high-current applications safely and efficiently.
  • The gray-colored power connector is easily identifiable, simplifying setup and troubleshooting in complex systems.

What's in the box:

  • Neutrik NAC3FXXB-W-L powerCON Lockable Female Cable Connector (Gray)
  • Neutrik 6 Month Limited Warranty
