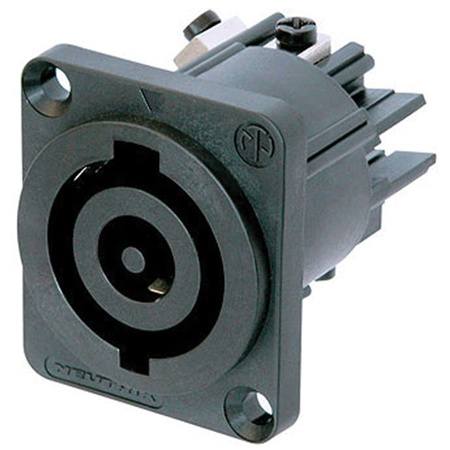

Neutrik NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector, Black

SKU: NENAC3MPHC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the current and voltage rating of the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector?

The NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector is rated for currents up to 32 A and for voltages up to 250V.

What type of connection system does the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector use?

It uses a non-standardized 3 pole connection system without breaking capacity, which is ideal for high power distribution systems and supplies.

What are the intended uses for the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector?

This connector is designed for professional audio and lighting equipment and installations, particularly for high power distribution systems and supplies.

What kind of conductors does the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector include?

It includes contacts for phase, neutral, and protective earth (ground) conductors.

What is the aesthetic design of the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector?

The NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector features a sleek black finish, adding a professional touch to any setup.

Reviews about this item

Review Summary

Neutrik NAC3MP-HC Specifications

General

General

Jump to...
  • Color

    Black

  • Connection Type

    powerCON

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    4 kVdc / 2.8 kVac

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    32 A (30A for cUL)

  • Rated voltage

    250 V ac

  • Maximal Wattage according to IEC 62368-1

    4000 W rms

Mechanical

Jump to...
  • Lifetime

    > 1000 mating cycles

  • Wiresize

    2.5 - 6 sq. mm
    14 - 10 AWG

  • Wiring

    screw terminals

  • Locking device

    Quick Lock

Material

Jump to...
  • Contact plating

    4 microm Ag

  • Contacts

    Bronze (CuSn0.2)

  • Locking element

    Steel Ck67

  • Shell

    Polyamide (PA 6.6 25 % GR)

Environmental

Jump to...
  • Flammability

    UL 94 V-0

  • Protection class

    IP 20 (mated)

  • Safety Requirements

    EN/IEC 61984

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -13 Degree F to +158 Degree F (-25 Degree C to +70 Degree C)

About Neutrik NAC3MP-HC

Become a part of the professional audio and lighting industry with the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector in Black. This high-capacity, single-phase AC appliance cable connector is designed to be incredibly robust and reliable, making it an ideal choice for high power distribution systems and supplies.

Rated for 32 A, this powerCON connector is engineered to handle high current capacity, ensuring optimal performance for your professional equipment. It features a non-standardized 3 pole connection system, specifically designed without breaking capacity to cater to the unique needs of high-power systems.

The NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector is not just about power, but also safety. It includes contacts for phase, neutral, and protective earth (ground) conductors, ensuring a safe and secure connection. With a voltage rating of up to 250V, this connector is built to withstand demanding power requirements.

Whether you're setting up professional audio systems, lighting equipment, or installations, the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector is a reliable and efficient solution. Its black finish adds a sleek, professional touch to your setup, making it not just a practical, but also a visually appealing choice.

In the world of professional electronics, trust the NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector to deliver power, reliability, and safety in one robust package.

Neutrik NAC3MP-HC Features

  • 250 V ac, 32 A single-phase (for ambient temperatures up to 35 Degree C)
  • Premating contact for protective earth
  • Fast and easy locking system to prevent unintentional disengagement
  • Wiring with screw-type terminals for wires 2.5 to 6.0 mm 2 (AWG 14 - 10)
  • Extremely robust and reliable
  • VDE, UL, cUL and JET approved
  • IEC 62368-1 compliant up to 4000 W

Key Features

  • Reliable power connection with the Neutrik powerCON, ensuring your devices stay powered.
  • This 32A power-in chassis connector offers a secure, locking connection for pro audio setups.
  • Rated to 250V, this male connector is perfect for high-power applications needing robust connections.
  • Withstands over 1000 mating cycles, providing a long-lasting power solution for your equipment.
  • Quick Lock system ensures a fast and secure connection, saving time during equipment setup.
  • Ideal for professional audio, lighting, and stage equipment requiring a dependable power input.

What's in the box:

  • NAC3MP-HC powerCON 32 A Power-In Chassis Male Connector (Black)
  • Neutrik 6 Month Limited Warranty
