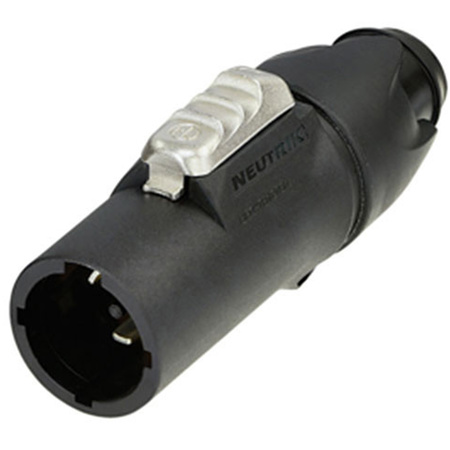

Neutrik NAC3MX-W-TOP powerCON TRUE1 Lockable Male Cable Connector, Black

SKU: NENAC3MXWTOP MFR: NAC3MX-W-TOP
$10.36
$12.08
Save: $1.72 (14%)
Earn VIP Reward Points

Key Features

  • Ensure secure power connections with this Neutrik powerCON TRUE1 lockable male connector.
  • This reliable power supply connector offers a robust solution for professional audio setups.
  • Withstands demanding conditions; this extension cord connector is rated IP65 for water resistance.
  • Achieve long-lasting performance with a durable connector, tested for over 5000 mating cycles.
  • Simplify your cable management using this black Neutrik connector, accommodating 6-12 mm cables.
  • Rated for 16A/250V, this power connector ensures a stable and safe power supply for your devices.
See More Product Details
Special Order?Estimated to Ship: 09/18/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NAC3MX-W-TOP Specifications

General

General

Jump to...
  • Color

    Black

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    <= 2 m Ohm

  • Dielectric strength

    4 kVdc / 2.8 kVac

  • Insulation resistance

    > 0.1 G Ohm (after damp heat test IEC 68-2-30)

  • Number of electronical contacts

    2 + PE

  • Rated current per contact

    16 A rms (USA: 20 A)

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Cable O.D.

    6 - 12 mm

  • Lifetime

    > 5000 mating cycles

  • Wiresize

    1.0 - 2.5 sq. mm
    12 AWG

Material

Jump to...
  • Contact plating

    2 microm Ag

  • Contacts

    Bronze (CuSn0.2)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    ZuAl4Cu1

  • Shell

    Polyamide (PA 6.6 30 % GR)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 V-0

  • Protection class

    IP65, UL50E enclosure type 4 (mated)

  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

  • UPC Code

    7613187011849

About Neutrik NAC3MX-W-TOP

Take your electronic connections to the next level with the NAC3MX-W-TOP powerCON TRUE1 Lockable Male Cable Connector, a robust and reliable solution designed by Neutrik for securing power sources in demanding environments. This high-quality connector is not just durable; it's engineered to withstand the rigors of outdoor applications, making it an ideal choice for professionals in the audio and video industry.

Crafted with precision, the powerCON TRUE1 TOP features screw terminals for a steadfast and secure connection, ensuring your equipment remains powered without the risk of accidental disconnections thanks to its innovative locking mechanism. With a 16 A rating, this sturdy connector is more than capable of handling true mains power, providing a dependable link for your electronic devices.

As a connector with breaking capacity (CBC), the NAC3MX-W-TOP stands out from the crowd. It allows for connection or disconnection under load or live, offering unparalleled flexibility and safety for live performances, outdoor events, and professional setups where power continuity is critical.

Choose the NAC3MX-W-TOP powerCON TRUE1 Lockable Male Cable Connector for a high-performance connection that meets the rigorous standards of the industry, backed by the reputation of Neutrik for creating connectors that professionals trust. Whether you're connecting musical instruments, audio equipment, or any other electronic devices requiring a secure power source, this connector is designed to deliver under the most challenging conditions.

Neutrik NAC3MX-W-TOP Features

  • Heavy duty sealed power connector for harsh and demanding environment
  • IP65 rating and certified outdoor protection to UL 50E enclosure type 4 (in mated condition)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Key Features

  • Ensure secure power connections with this Neutrik powerCON TRUE1 lockable male connector.
  • This reliable power supply connector offers a robust solution for professional audio setups.
  • Withstands demanding conditions; this extension cord connector is rated IP65 for water resistance.
  • Achieve long-lasting performance with a durable connector, tested for over 5000 mating cycles.
  • Simplify your cable management using this black Neutrik connector, accommodating 6-12 mm cables.
  • Rated for 16A/250V, this power connector ensures a stable and safe power supply for your devices.

What's in the box:

  • NAC3MX-W-TOP powerCON TRUE1 Lockable Male Cable Connector (Black)
  • Neutrik 6 Month Limited Warranty
