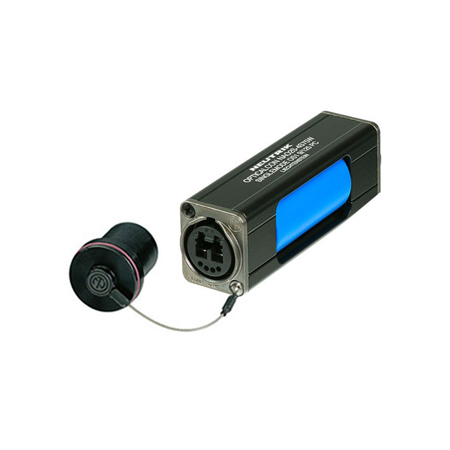

Neutrik NAO2S-H1W-A opticalCON DUO Coupler LC-Duplex over Single-Mode PC, Blue
See all Neutrik items

Neutrik NAO2S-H1W-A opticalCON DUO Coupler LC-Duplex over Single-Mode PC, Blue

SKU: NENAO2SH1WA MFR: NAO2S-H1W-A
Be the first to review this itemAsk a Question
$416.67
$455.95
Save: $39.28 (9%)
OR
$70/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Ensure reliable data transfer with this Neutrik opticalCON DUO adapter.
  • This LC-Duplex to LC-Duplex coupler offers a secure, push-pull locking system.
  • Experience minimal signal loss with <0.4 dB insertion loss per connection.
  • Built for durability, this adapter withstands 1000+ mating cycles easily.
  • The single-mode PC fiber ensures high performance for critical applications.
  • With IP65 protection, this Neutrik adapter resists dust and water ingress.
See More Product Details
Special Order?Estimated to Ship: 10/07/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$44.99
2-Year Adorama Protect$79.99
3-Year Adorama Protect$109.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Neutrik NAO2S-H1W-A Specifications

General

General

Jump to...

  • Color

    Blue

  • Fiber Mode

    Single-mode PC

  • Connection Type

    Adapter

  • Gender

    Female

Electrical

Jump to...

  • Contact resistance

    < 7 m Ohm

  • Dielectric strength

    1,5 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    6 - 10 A (Contact 1+4 10 A, Contact 2+3 6 A)

  • Rated voltage

    < 50 V

Mechanical

Jump to...

  • Insertion force

    < 45 N

  • Withdrawal force

    < 45 N

  • Lifetime (typ.)

    1000 mating cycles

  • Locking device

    Push-Pull

Material

Jump to...

  • Contact plating

    0.2 microm Au over 2 microm Ni

  • Contacts

    Bronze (CuSn6)

  • Insert

    Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)

  • Shell

    AlMgSi 0.5, black plated

  • Split sleeve

    Ceramics

Environmental

Jump to...

  • Temperature range

    -22 Degree F to 176 Degree F (-30 Degree C to +80 Degree C)

  • Protection class

    IP65

Optical

Jump to...

  • Insertion loss

    < 0.4 dB / connection

  • Optical connector

    LC-Duplex

About Neutrik NAO2S-H1W-A

Weatherproof opticalCON DUO coupler (adapter) LC-Duplex for cable extensions with 4 copper wires. (0.75 sq. mm)

Neutrik NAO2S-H1W-A Features

  • Weatherproof opticalCON DUO LC-Duplex adapter
  • Supports cable extensions with 4 copper wires
