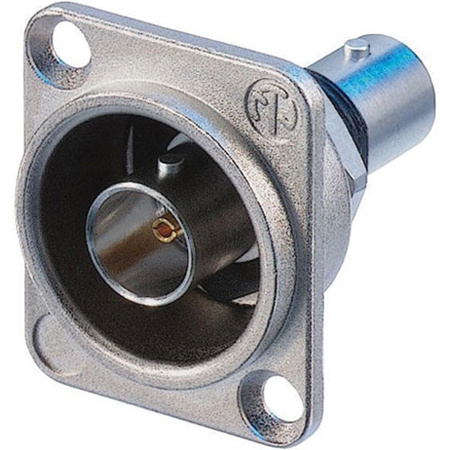

Neutrik NBB75DFI Isolated BNC Chassis Connector, Nickel D-Shape Housing

SKU: NENBB75DFI

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of signals is the Neutrik NBB75DFI Isolated BNC Chassis Connector suitable for?

The Neutrik NBB75DFI is suitable for true 75 Ohm design applications, making it ideal for both serial and digital (HD) signals.

Can the Neutrik NBB75DFI BNC Chassis Connector be used with any gender cable?

The Neutrik NBB75DFI is a female connector, designed to be compatible with devices that require a female BNC connection, such as cameras and microphones.

Is the Neutrik NBB75DFI suitable for outdoor use?

Yes, the Neutrik NBB75DFI BNC Chassis Connector is designed to be durable and is suitable for both indoor and outdoor applications.

What is the housing material of the Neutrik NBB75DFI connector?

The Neutrik NBB75DFI connector is housed in a sturdy, nickel D-shape housing, which provides extra protection and durability.

How does the Neutrik NBB75DFI ensure a non-abrasive connection?

The Neutrik NBB75DFI features a machined brass connector body that ensures a rugged and non-abrasive connection for long-term use.

Reviews about this item

Review Summary

Neutrik NBB75DFI Specifications

General

General

Jump to...
  • Connection Type

    BNC 75 Ohm

  • Gender

    Female

Electrical

Jump to...
  • Signal Type

    HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

  • Contact resistance

    <= 3 m Ohm (inner)
    <= 2 m Ohm (outer)

  • Dielectric strength

    1.5 kVdc

  • Impedance

    75 Ohm

  • Insulation resistance

    > 5 G Ohm

  • Rated voltage

    <50 V

  • VSWR

    <=1.03/>37 dB up to 1 GHz
    <=1.05/>32 dB up to 2 GHz
    <=1.08/>28 dB up to 3 Ghz

Mechanical

Jump to...
  • Insertion force

    < 25 N

  • Lifetime

    > 1000 mating cycles

  • Locking device

    Bayonet

  • Mounting direction

    Front mounting

  • Chassis shape

    D

Material

Jump to...
  • Contacts

    Brass (CuZn39Pb3), 0.2 microm AuCo (Center contact)

  • Insert

    PTFE

  • Shell

    Polyacetal (POM) (Insulation Shell)

  • Shell plating

    Optalloy

  • D-Shape housing

    Zinc diecast (ZnAl4Cu1) gal Ni plating

Environmental

Jump to...
  • Temperature range

    -22 Degree F to 185 Degree F (-30 Degree C to +85 Degree C)

About Neutrik NBB75DFI

The Neutrik NBB75DFI Isolated BNC Chassis Connector, encased in a robust nickel D-shape housing, is a high-quality, reliable solution for your audio and video connection needs. This durable connector is designed with a true 75 Ohm design, making it an ideal choice for both serial and digital (HD) signals.

Constructed from machined brass, this sturdy connector ensures a rugged and non-abrasive connection, promising longevity even with frequent use. Its design features a recessed connector body, providing additional protection and enhancing its durability. This design adheres to the audio industry standard, making it a versatile choice for a wide range of devices.

This robust BNC chassis connector is female gendered, making it compatible with a multitude of devices requiring a female connector. From cameras and microphones to other audio and video equipment, this connector serves as a reliable link for your equipment.

Whether you're setting up for an indoor event or an outdoor broadcast, the Neutrik NBB75DFI Isolated BNC Chassis Connector is a reliable and sturdy choice, designed to withstand various environments. Its compatibility with coaxial cables further enhances its versatility, making it a go-to choice for professionals in the audio and video industry.

Neutrik NBB75DFI Features

  • Gold plated cage type center contact
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • Color coding possible
  • True 75 Ohm design meets the stringent HD requirements
  • Standard D-shape housing - provides flush mounting and protection from damage

Key Features

  • Ensure optimal signal quality with this Neutrik 75 Ohm BNC chassis connector.
  • Achieve reliable connections for HD, SDI, and video signals using this BNC connector.
  • Experience superior durability with the Neutrik's robust, nickel-plated D-shape housing.
  • Enjoy long-lasting performance; this BNC connector is rated for >1000 mating cycles.
  • Minimize signal loss; VSWR <=1.03/>37 dB up to 1 GHz ensures top signal integrity.
  • Benefit from excellent shielding; the isolated design reduces interference for clean audio.

What's in the box:

  • NBB75DFI Isolated BNC Chassis Connector
  • Neutrik 6 Month Limited Warranty
