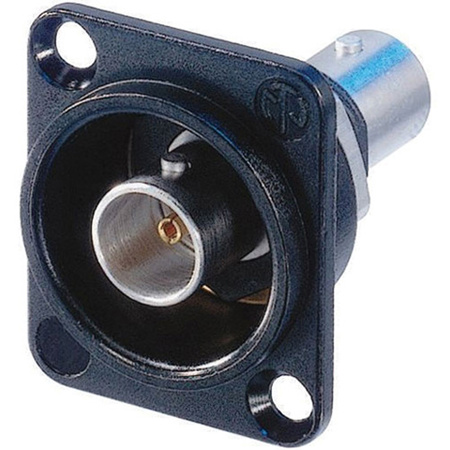

Neutrik NBB75DFIB Isolated BNC Chassis Connector, Black D-Shape Housing

SKU: NENBB75DFIB MFR: NBB75DFIB
$10.90
Earn VIP Reward Points

Key Features

  • Ensure optimal signal quality with this Neutrik 75 Ohm BNC chassis connector.
  • Enjoy reliable HD, SDI, and video connections using this isolated BNC connector.
  • Durable black D-shape housing provides robust shielding for long-lasting use.
  • Achieve secure front mounting with the bayonet locking device for easy setup.
  • This female BNC connector supports >1000 mating cycles, ensuring longevity.
  • Maintain consistent performance across a wide temperature range with this BNC.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NBB75DFIB Specifications

General

General

Jump to...
  • Connection Type

    BNC 75 Ohm

  • Gender

    Female

Electrical

Jump to...
  • Signal Type

    HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV

  • Contact resistance

    <= 3 m Ohm (inner)
    <= 2 m Ohm (outer)

  • Dielectric strength

    1.5 kVdc

  • Impedance

    75 Ohm

  • Insulation resistance

    > 5 G Ohm

  • Rated voltage

    <50 V

  • VSWR

    <=1.03/>37 dB up to 1 GHz
    <=1.05/>32 dB up to 2 GHz
    <=1.08/>28 dB up to 3 Ghz

Mechanical

Jump to...
  • Insertion force

    < 25 N

  • Lifetime

    > 1000 mating cycles

  • Locking device

    Bayonet

  • Mounting direction

    Front mounting

  • Chassis shape

    D

Material

Jump to...
  • Contacts

    Brass (CuZn39Pb3), 0.2 microm AuCo (Center contact)

  • Insert

    PTFE

  • Shell

    Polyacetal (POM) (Insulation Shell)

  • Shell plating

    Optalloy

  • D-Shape housing

    Zinc diecast (ZnAl4Cu1) gal black chrome plating

Environmental

Jump to...
  • Temperature range

    -22 Degree F to 185 Degree F (-30 Degree C to +85 Degree C)

About Neutrik NBB75DFIB

Bring precision and durability to your audio and video connections with the NBB75DFIB Isolated BNC Chassis Connector, housed in a sleek black D-shape design. This product, crafted by the renowned brand Neutrik, is specifically engineered to provide a true 75 Ohm design, making it ideal for both serial and digital (HD) signals.

The NBB75DFIB BNC Chassis Connector stands out in the market due to its machined brass connector body. This feature ensures an incredibly rugged and non-abrasive connection, even with long-term use, making it a reliable choice for professionals and enthusiasts alike.

Moreover, this BNC chassis connector is uniquely designed with a recessed connector body, offering additional protection. This thoughtful design element is housed within a D-shape housing, adhering to the audio industry standard.

In essence, the NBB75DFIB Isolated BNC Chassis Connector combines high-quality materials, innovative design, and the trusted Neutrik brand name, making it a standout choice for those seeking reliable, long-lasting audio and video connections.

Neutrik NBB75DFIB Features

  • Gold plated cage type center contact
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • Color coding possible
  • True 75 Ohm design meets the stringent HD requirements
  • Standard D-shape housing - provides flush mounting and protection from damage

Key Features

  • Ensure optimal signal quality with this Neutrik 75 Ohm BNC chassis connector.
  • Enjoy reliable HD, SDI, and video connections using this isolated BNC connector.
  • Durable black D-shape housing provides robust shielding for long-lasting use.
  • Achieve secure front mounting with the bayonet locking device for easy setup.
  • This female BNC connector supports >1000 mating cycles, ensuring longevity.
  • Maintain consistent performance across a wide temperature range with this BNC.

What's in the box:

  • NBB75DFIB Isolated BNC Chassis Connector
  • Neutrik 6 Month Limited Warranty
