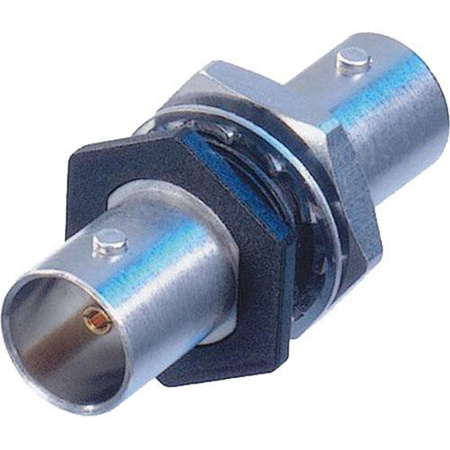

Neutrik NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack
See all Neutrik items

Neutrik NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack

SKU: NENBB75FI MFR: NBB75FI
Be the first to review this itemAsk a Question
$8.31
Earn VIP Reward Points

Key Features

  • Ensure optimal signal integrity with this 75 Ohm BNC connector for HD, SDI, & more!
  • Achieve reliable video and AES/EBU connections with our durable Neutrik BNC jack.
  • Experience superior performance with low latency, ideal for professional audio setups.
  • Enjoy long-lasting connectivity; this BNC feedthrough jack offers >1000 mating cycles.
  • Maintain signal purity with excellent insulation resistance in your audio applications.
  • Benefit from broad compatibility; supports UHD, RGB, and composite video signals.
See More Product Details
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What types of signals is the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack designed for?

The NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack is designed to handle both serial and digital signals, making it ideal for HD and UHD applications.

What material is the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack made of?

This BNC bulkhead jack is constructed with a machined brass connector body, ensuring a robust and non-abrasive connection even with long-term use.

Is the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack suitable for home use?

Yes, the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack is not only suitable for professional broadcasting stations but also for home entertainment systems.

What makes the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack stand out among other BNC bulkhead jacks?

Its true 75 Ohm design guarantees optimal signal integrity, and its isolation feature further enhances signal quality, making it a standout choice among BNC bulkhead jacks.

What is the benefit of the isolation feature in the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack?

The isolation feature in the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack enhances signal quality, ensuring clear and stable transmissions.

Reviews about this item

Review Summary

Neutrik NBB75FI Specifications

General

General

Jump to...

  • Connection Type

    BNC 75 Ohm

  • Gender

    Female

Electrical

Jump to...

  • Signal Type

    HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV UHD

  • Contact resistance

    <= 3 m Ohm (inner)
    <= 2 m Ohm (outer)

  • Dielectric strength

    1.5 kVdc

  • Impedance

    75 Ohm

  • Insulation resistance

    > 5 G Ohm

  • Rated voltage

    <50 V

  • VSWR

    <=1.050/>32 dB up to 1 GHz
    <=1.065/>30 dB up to 2 GHz
    <=1.100/>26 dB up to 3 Ghz

Mechanical

Jump to...

  • Insertion force

    < 25 N

  • Lifetime

    > 1000 mating cycles

  • Locking device

    Bayonet

  • Mounting direction

    Front mounting

  • Chassis shape

    12.7 mm

Material

Jump to...

  • Contacts

    Brass (CuZn39Pb3), 0.2 microm AuCo (Center contact)

  • Insert

    PTFE

  • Shell

    Brass (CuZn39Pb3)

  • Shell plating

    Optalloy

Environmental

Jump to...

  • Temperature range

    -22 Degree F to 185 Degree F (-30 Degree C to +85 Degree C)

About Neutrik NBB75FI

Take your audio and video equipment to the next level with the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack. This high-quality, panel mount BNC bulkhead from Neutrik is expertly designed to handle both serial and digital signals, making it an ideal choice for HD and UHD applications.

Constructed with a machined brass connector body, this BNC bulkhead jack ensures a robust and non-abrasive connection, even with long-term use. Its true 75 Ohm design guarantees optimal signal integrity, providing you with clear and stable transmissions every time.

Whether you're setting up a professional broadcasting station or a home entertainment system, the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack is a reliable and durable solution for your connectivity needs. Its isolation feature further enhances signal quality, making it a standout choice among BNC bulkhead jacks.

Experience the difference in signal quality and durability with the NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack, a top-tier choice for professionals and enthusiasts alike.

Neutrik NBB75FI Features

  • Gold plated cage type center contact
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • True 75 Ohm design meets the stringent HD requirements
  • Extra wide fastening nut avoids damaging the plastic thread

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure optimal signal integrity with this 75 Ohm BNC connector for HD, SDI, & more!
  • Achieve reliable video and AES/EBU connections with our durable Neutrik BNC jack.
  • Experience superior performance with low latency, ideal for professional audio setups.
  • Enjoy long-lasting connectivity; this BNC feedthrough jack offers >1000 mating cycles.
  • Maintain signal purity with excellent insulation resistance in your audio applications.
  • Benefit from broad compatibility; supports UHD, RGB, and composite video signals.

What's in the box:

  • NBB75FI Isolated BNC 75 Ohm Feedthrough Bulkhead Jack
  • Neutrik 6 Month Limited Warranty
