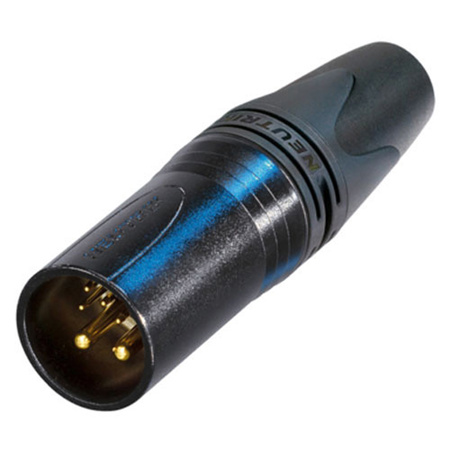

Neutrik NC10MXX-14-B XX Series 10-Pole XLR Male Connector, Black Metal Housing
See all Neutrik items

Neutrik NC10MXX-14-B XX Series 10-Pole XLR Male Connector, Black Metal Housing

SKU: NENC10MXX14B
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the use of the Neutrik NC10MXX-14-B XX Series 10-Pole XLR Male Connector?

The NC10MXX-14-B XX Series 10-Pole XLR Male Connector is used to connect a male XLR cable to a female XLR input. It is ideal for live performances, recording sessions, and other professional audio applications.

What makes this XLR connector durable?

The XLR connector is housed in a robust black chrome metal casing. This strong material makes it resistant to wear and tear, ensuring it can withstand the rigors of professional use.

What is the benefit of the secure locking system?

The secure locking system ensures a stable connection that won't easily disconnect during use. This feature is particularly beneficial during live performances and recording sessions where an uninterrupted connection is crucial.

What is the Neutrik chuck type strain relief?

The Neutrik chuck type strain relief is a feature that helps prevent cable damage. It enhances the connector's reliability and ensures a longer lifespan for your audio equipment.

Is this XLR connector easy to assemble?

Yes, the NC10MXX-14-B XX Series 10-Pole XLR Male Connector is designed for easy assembly, making it a convenient choice for professionals who need to set up and break down their audio equipment frequently.

Reviews about this item

Review Summary

Neutrik NC10MXX-14-B Specifications

General

General

Jump to...

  • Color

    Housing: Black Chrome Metal

  • Connection Type

    XLR

  • Gender

    Male

Electrical

Jump to...

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 10 G Ohm , 0.1 (after damp heat test)

  • Number of electronical contacts

    8 + 2

  • Rated current per contact

    16 A (power pins), 3 A (data pins)

  • Cable shield - shell connection

    choosable

  • Transmission performance

    CAT 5e

Mechanical

Jump to...

  • Cable O.D.

    8.0 - 10.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    2.5 mm 2 / AWG 14 (power pins), 1 mm 2 / AWG 18 (data pins)

Material

Jump to...

  • Bushing

    PA / PU

  • Contact plating

    0.2 microm Au hard alloy over 2 microm Ni

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    PA66

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    POM

Environmental

Jump to...

  • Flammability

    UL 94 V-0

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to 176 Degree F (-30 Degree C to +80 Degree C)

  • Manufacturing Standard

    IEC 61076-2-103

About Neutrik NC10MXX-14-B

Enhance your professional audio setup with the NC10MXX-14-B XX Series 10-Pole XLR Male Connector, featuring a robust black metal housing for exceptional durability. This high-quality connector, designed by the reputable brand Neutrik, ensures a reliable and secure connection for all your audio needs.

The connector is easy to assemble, making it a convenient choice for live performances, recording sessions, and other professional audio applications. It boasts an 8 + 2 pole configuration, ensuring compatibility with a wide range of audio equipment. The black chrome metal housing not only adds a stylish touch to your audio setup but also provides an extra layer of protection against wear and tear.

The NC10MXX-14-B XX Series 10-Pole XLR Male Connector also features a secure locking system, ensuring a stable connection that won't easily disconnect during use. The proven Neutrik chuck type strain relief further enhances the connector's reliability, preventing cable damage and ensuring a long lifespan for your audio equipment.

Choose the NC10MXX-14-B XX Series 10-Pole XLR Male Connector for a durable, reliable, and professional solution to your audio connection needs.

Neutrik NC10MXX-14-B Features

  • Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Superior ruggedness compared to RJ45 type connectors

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior audio with this durable Neutrik 10-pole XLR male connector.
  • Ensure optimal sound quality with gold-plated contacts for a reliable audio connection.
  • This XLR connector's robust shielding minimizes interference, enhancing audio clarity.
  • Achieve secure connections with the Neutrik's chuck-type strain relief, 8-10mm cable O.D..
  • Enjoy long-lasting performance; this Neutrik XLR boasts a lifetime of >1000 mating cycles.
  • This high-quality Neutrik audio connector offers broad compatibility & easy integration.

What's in the box:

  • NC10MXX-14-B XX Series 10-Pole XLR Male Connector
  • Neutrik 6 Month Limited Warranty
