Review Summary
8x 3G/HD/SD-SDI connections via mini-BNC, configurable for any combination of inputs and outputs, including single-channel or dual-channel 4K UHD (Ultra High Definition) input and/or output via 3G-SDI quad-link grouping
8x NDI
inputs
8x NDI outputs
Support for up to 8 simultaneous channels of integrated media playback, configurable per channel, and available for NDI and SDI output
Support for a range of video over IP input sources, including RTMP, RTSP, and HTTP streams
1x multiviewer output via HDMI or DisplayPort supporting standard display resolutions up to 1920x1200
8x SDI embedded
Native support for network audio input and output via NDI
Embedded audio supported for all NDI input and output video signals
Integrated support for Dante networking protocol from Audinate
Support for AES67 protocol via compatible WDM audio drivers
8x recording channels via IsoCorder
technology
QuickTime (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)
3
Supports recording to external storage via USB 3.0
Supports shared storage integration and third-party partner solutions
Grab full resolution, DE interlaced still images from external video sources
2160p: 59.94, 50, 29.97, 25, 24, 23.976
1080p: 59.94, 50, 29.97, 25, 24, 23.976
1080i: 59.94, 50
720p: 59.94, 50, 29.97, 25, 24, 23.976
576i 50
480i 59.94
Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP and more
Audio: AIFF, MP3, WAV, and more
Support for 1 multiviewer display with configurable workspaces and viewports
Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709
Video: Floating Point, YCbCr +A 4:4:4:4
Audio: Floating Point, 96kHz
4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split)
3G-SDI video conforms to SMPTE 424M (Level A)
HD-SDI video conforms to SMPTE 292M
SD video conforms to SMPTE 259M and ITU-R BT.656
Analog audio levels conform to SMPTE RP-155
2x 1 Gigabit NIC
1RU chassis with 280W redundant PSU
19 x 1.75 x 16.75" (48.26 x 4.45 x 42.55cm) (with rack ears attached)

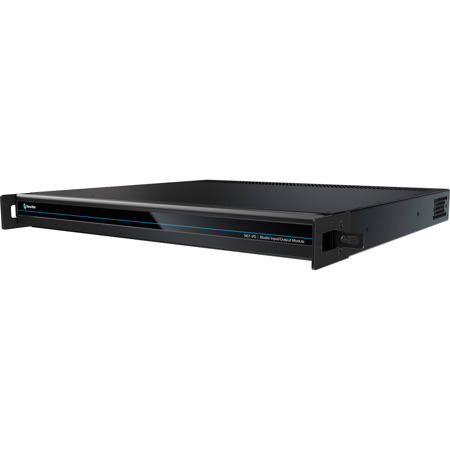

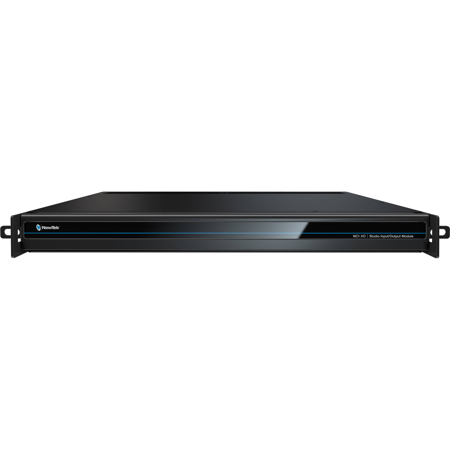

Complete your current workflow or create an entirely new one. From increasing your available inputs and outputs, to merging established and emerging technologies, to linking locations across your network, the NewTek NC1 Studio I/O Module is a universal solution that adapts to your production needs.
The bridge to your ideal production
Translate up to 8 compatible video sources to SDI or NDI for input, output or a combination of both
Configure for dual-channel 4K Ultra HD at 60 frames per second with support for 3G-SDI quad-link grouping
Integrate with compatible systems and devices across your network for switching, streaming, display and delivery
Stack modules in a single location or station in multiple locations to meet the demands of your productions
Grow and evolve
Commitments and requirements can change from production to production. A powerful, versatile platform for multi-source production and multi-screen delivery workflows, the Studio I/O Module quickly pivots to accommodate additional cameras, devices, displays or destinations. And with turnkey installation and operation, you can easily assemble a network of modules to configure your own multi-system and multi-site workflows.
Inspired Design
Multi-channel SDI and IP video translation for delivery to compatible destinations and devices with near-zero latency
Eight 3G/HD/SD SDI video connections via mini-BNC, configurable for input, output or a combination of both
Support for any combination of compatible video formats in resolutions up to 4K UHD at frame rates up to 60fps
Scalable, modular architecture supporting systematic expansion and strategic deployment
Customizable Workflow
Built-in video server function with extensive file format support, including full-resolution 4K UHD playback
Real-time input, conversion and transmission of common IP video stream formats, including RTMP, RTSP and HTTP
Flexible audio integration supporting input and delivery of digital, analog and network audio, including Dante and AES67 (Dante and AES67 require compatible virtual sound card licenses (sold separately))
Essential Studio Functionality
Dedicated multiviewer with selectable workspace layouts and customizable viewports
Precision color calibration with independently configurable color correction tools and integrated waveform and vector scope
Native-resolution recording to external or network attached storage for archive and post-production
Remote control and monitoring from the web browser of any networked device, including iOS and Android devices
