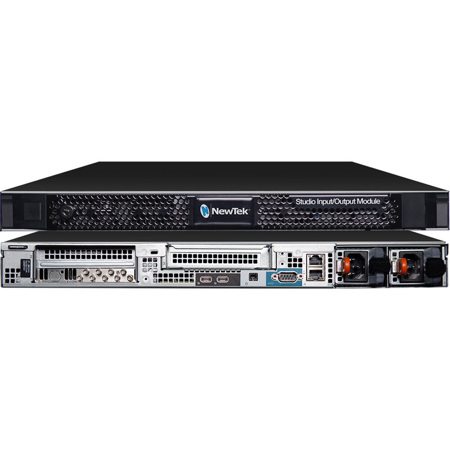

NewTek NC2 Studio I/O Module

SKU: NENC2IO MFR: FG-003244-R001
Earn VIP Reward Points

Key Features

  • Experience seamless video switching with the NewTek NC2 Studio I/O Module.
  • Capture every detail with up to 2x 4K UHD I/O via 12G-SDI for stunning video quality.
  • Enjoy wide compatibility with NDI, SRT, SDI, RTMP, and RTSP video input options.
  • Record up to 8 channels simultaneously using SDI inputs for comprehensive coverage.
  • Ensure reliable connection with a 10 Gigabit NIC for low latency streaming.
  • Simplify your workflow with easy setup and integrated waveform and vectorscope tools.
See More Product Details
Special Order?Estimated to Ship: 08/20/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NewTek NC2 Specifications

  • Video In

    NDI, SRT, SDI, RTMP, RTSP

  • Video Out

    NDI, SDI

  • IP I/O

    Up to 8x

  • SDI I/O

    Up to 8x via HD-BNC

  • 4K UHD I/O SDI I/O

    Up to 2x via 12G-SDI, 6G-SDI, or quad-link 3G-SDI

  • Media Playback Channels

    Up to 8x

  • Recording Channels

    Up to 8x SDI Inputs Only

  • Supported Video Formats

    2160p: 59.94, 50, 29.97, 25, 24, 23.976
    1080p: 59.94, 50, 29.97, 25, 24, 23.976
    1080i: 59.94, 50
    720p: 59.94, 29.97, 25, 24, 23.976
    576i: 50
    480i: 59.94
    1080p: 60, 59.94, 50
    1080p/PsF: 30, 29.97, 25, 24, 23.98
    1080i: 30, 29.97, 25
    720p: 60, 59.94, 50
    576i: 25
    480i: 29.97

  • Supported Media Formats

    Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
    Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
    Audio: AIFF, MP3, WAV, and more

  • Audio I/O

    Up to 8x SDI embedded

  • Audio Networking

    Native support for network audio input and output via NDI
    Embedded SDI audio supported for all NDI input and output video signals
    Support for Dante, AES67, and ASIO protocols via compatible audio drivers

  • Timecode

    LTC and VITC

  • Signal Monitoring

    Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

  • A/V Standards

    12G-SDI (ST 2082-10)
    6G-SDI (ST 2081-10)
    3G-SDI Level A (ST 425-1 Level A Mapping)
    Quad Link 3G-SDI (ST 425-5)
    HD-SDI (ST 292)
    SD-SDI (ST 259)

  • Video Processing

    Floating Point, YCbCr +A 4:4:4:4

  • Audio Processing

    Floating Point, 96 kHz

  • Genlock

    Reference input supporting SD (Bi-level), HD (Tri-level), or network (NDI) supported

  • Multiviewer

    1x USB Type C

  • NIC

    1x 10 Gigabit NIC (10GBASE-T over RJ45)
    1x 1 Gigabit NIC (RJ45)

  • Dimensions (H x W x D)

    With Bezel - Racking Kit Included: 1.88 x 18.97 x 22.73" (4.28 x 48.2 x 57.75cm)

  • Weight

    27.38 lbs (12.42kg)

About NewTek NC2

Why choose the NewTek NC2 Studio I/O Module for your studio or production facility This innovative and reliable module is engineered to meet the rigorous demands of modern audio and video environments, providing a durable and high-quality solution for professionals seeking to enhance their production capabilities.

The NC2 Studio I/O Module is more than just a converter; it's a comprehensive tool that supports a wide array of formats, including 12G-SDI and 10 Gigabit Ethernet, ensuring seamless connectivity across multiple video and audio formats such as NDI, SDI, and other IP formats. Its user-friendly interface allows for dynamic I/O configuration, enabling you to customize the module as 8 x 3G-SDI, 2 x 12G-SDI with 4 x 3G-SDI, or any combination in between, adapting effortlessly to any workflow.

Built for NDI and supporting all the latest NDI 5 features, the NC2 Studio I/O Module is designed with 10Gb Ethernet to accommodate the most advanced network-based video production needs. It offers IP flexibility while leveraging existing SDI equipment and infrastructure, allowing you to adapt, grow, and evolve your setup to meet both current and future production demands.

With the NC2 Studio I/O Module, you gain greater I/O flexibility, support for 12G-SDI devices, up to 8 channels of SDI recording, and robust 10 Gigabit Ethernet connectivity. NewTek products are crafted with NDI technology at their core, ensuring that the NC2 Studio I/O Module perfectly integrates various source types into the dynamic world of IP production.

Simple and scalable, the NC2 Studio I/O Module is ideal for even the most complex studio workflows. It offers essential studio functionality, including local monitoring and management tools. Benefit from a dedicated multiviewer with selectable workspace layouts and customizable viewports, integrated waveform and vectorscope displays, and precision color correction capabilities, ensuring that you can confidently manage and present your production with the utmost professionalism.

In summary, the NewTek NC2 Studio I/O Module stands out as a versatile and future-proof choice for professionals who require a robust, innovative, and user-friendly solution for their audio and video production needs.

NewTek NC2 Features

  • Simultaneously record up to 8 SDI inputs and combine with NewTek's Network Remote Storage
  • 10 Gigabit Ethernet connectivity for high-speed networking environments
  • Adaptable audio workflows through connection with USB and network-based audio drivers
  • Greater I/O flexibility with support for 12G-SDI devices
  • Integrated NDI KVM technology enabling remote module access and control
  • Supports all the very latest NDI 5 Features

Key Features

  • Experience seamless video switching with the NewTek NC2 Studio I/O Module.
  • Capture every detail with up to 2x 4K UHD I/O via 12G-SDI for stunning video quality.
  • Enjoy wide compatibility with NDI, SRT, SDI, RTMP, and RTSP video input options.
  • Record up to 8 channels simultaneously using SDI inputs for comprehensive coverage.
  • Ensure reliable connection with a 10 Gigabit NIC for low latency streaming.
  • Simplify your workflow with easy setup and integrated waveform and vectorscope tools.

What's in the box:

  • NewTek NC2 Studio I/O Module
  • NewTek 1 Year Limited Warranty
