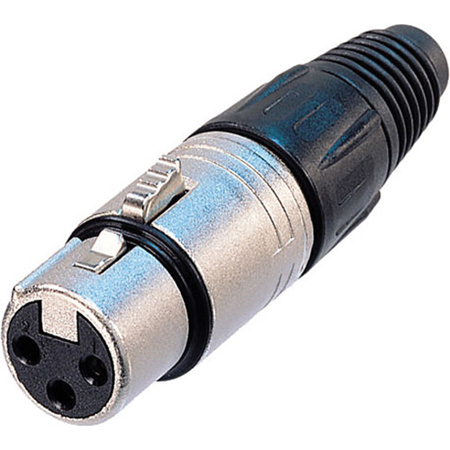

Neutrik NC3FX 3-Pole XLR Female Cable Connector, Nickel housing, Silver Contacts

SKU: NENC3FX MFR: NC3FX
$3.71
Earn VIP Reward Points

Key Features

  • Get superior sound with this Neutrik XLR female connector, perfect for pro audio setups.
  • Ensure long-lasting connections; the durable nickel housing resists wear in demanding conditions.
  • Experience top-notch signal transfer with silver contacts, enhancing your audio fidelity.
  • This female XLR cable connector offers broad compatibility, fitting cables 3.5mm to 8.0mm.
  • Enjoy reliable performance; this Neutrik connector is built to endure over 1000 mating cycles.
  • Achieve secure connections; the latch lock prevents accidental disconnections during performances.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NC3FX Specifications

General

General

Jump to...
  • Color

    Contacts: Silver
    Housing: Nickel

  • Connection Type

    XLR

  • Gender

    Female

Electrical

Jump to...
  • Capacitance between contacts

    <= 4 pF

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    16 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    3.5 - 8.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    Max. 2.5 mm sq.
    Max. 14 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    2 microm Ag over 2 microm Ni

  • Contacts

    Bronze (CuSn8)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    St3K32 (latch) / Ck 67 (spring)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Nickel

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Approvals

    UL

  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

About Neutrik NC3FX

If you're in search of a durable and reliable solution for your professional audio needs, look no further than the NC3FX 3-Pole XLR Female Cable Connector. This high-quality connector, encased in a robust nickel housing, is renowned for its exceptional durability and resistance to corrosion.

Designed to be the industry standard, this XLR cable connector is easy to assemble, requiring only four parts and no screws. Its compact design is complemented by a sturdy diecast shell, ensuring its longevity and consistent performance.

The connector also features a fiberglass-reinforced hard plastic insert, providing additional strength and stability. Moreover, it includes a chuck type strain relief mechanism, ensuring secure clamping of all cables, thereby preventing any potential damage or disconnection.

Ideal for professional audio applications, the NC3FX 3-Pole XLR Female Cable Connector is commonly used to connect male XLR cables to female XLR connectors. Whether you're connecting microphones or other audio devices to a mixer or soundboard, this connector from the reputable brand Neutrik guarantees reliable performance and superior sound quality.

Incorporate this sturdy, professional-grade XLR connector into your audio setup and experience the difference in quality and durability that Neutrik products are known for.

Neutrik NC3FX Features

  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Colored rings and boots available for coding and marking
  • UL recognized components

Key Features

  • Get superior sound with this Neutrik XLR female connector, perfect for pro audio setups.
  • Ensure long-lasting connections; the durable nickel housing resists wear in demanding conditions.
  • Experience top-notch signal transfer with silver contacts, enhancing your audio fidelity.
  • This female XLR cable connector offers broad compatibility, fitting cables 3.5mm to 8.0mm.
  • Enjoy reliable performance; this Neutrik connector is built to endure over 1000 mating cycles.
  • Achieve secure connections; the latch lock prevents accidental disconnections during performances.

What's in the box:

  • NC3FX 3-Pole XLR Female Cable Connector
  • Neutrik 6 Month Limited Warranty
