Neutrik NC3MRX-B 3-Pole Right Angle XLR M Cable Connector, Black, Gold Contacts
See all Neutrik items

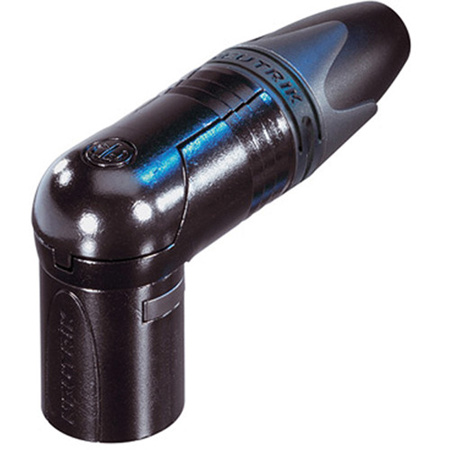

Neutrik NC3MRX-B 3-Pole Right Angle XLR Male Cable Connector, Black Housing, Gold Contacts

SKU: NENC3MRXB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What series does the NC3MRX-B 3-Pole Right Angle XLR Male Cable Connector belong to?

The NC3MRX-B 3-Pole Right Angle XLR Male Cable Connector is part of the RX Series, which is the right-angle version of the XX cable connector series.

What are the benefits of the gold contacts in the NC3MRX-B connector?

Gold contacts in the NC3MRX-B connector offer improved contact integrity, ensuring high-quality signal transmission and corrosion resistance for long-term reliability.

Is the NC3MRX-B connector compatible with professional audio equipment?

Yes, the NC3MRX-B connector is designed to be compatible with professional audio and video equipment, offering enhanced performance and durability for various applications.

How does the NC3MRX-B improve cable strain relief?

The NC3MRX-B connector is engineered to provide superior cable strain relief, which helps to protect the cable from damage and extend its lifespan while maintaining signal quality.

Can the NC3MRX-B connector be used for both studio and live environments?

Absolutely, the NC3MRX-B connector's robust construction and reliable signal transmission make it suitable for use in both studio settings and live performance environments.

Reviews about this item

Review Summary

Neutrik NC3MRX-B Specifications

General

General

Jump to...

  • Color

    Contact: Gold
    Housing: Black

  • Connection Type

    XLR

  • Gender

    Male

Electrical

Jump to...

  • Capacitance between contacts

    <= 4 pF

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    16 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...

  • Cable O.D.

    3.5 - 8.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    Max. 2.5 mm 2
    Max. 14 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...

  • Boot

    Polyurethane

  • Contact plating

    0.2 microm Au hard alloy over 2 microm Ni

  • Contacts

    Bronze (CuSn8)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...

  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

About Neutrik NC3MRX-B

Discover the superior functionality and design of the NC3MRX-B 3-Pole Right Angle XLR Male Cable Connector. This high-quality connector, featuring a sleek black housing and gold contacts, is part of the renowned RX Series, the right-angle counterpart to the XX cable connector series.

The NC3MRX-B is the successor to the RC series, boasting a host of enhanced features that elevate its reliability and ease of assembly. This right-angle XLR male cable connector is meticulously engineered to improve contact integrity, ensuring optimal signal transmission for your audio and video equipment.

Moreover, the NC3MRX-B 3-Pole Right Angle XLR Male Cable Connector offers superior cable strain relief. This feature not only extends the lifespan of your cables but also maintains the quality of your audio and video signals, making it an essential component for any professional or home electronics setup.

Incorporating the NC3MRX-B 3-Pole Right Angle XLR Male Cable Connector into your system is a sure way to experience enhanced audio and video performance. Its black housing and gold contacts not only provide a stylish aesthetic but also promise long-lasting durability and exceptional signal integrity.

Neutrik NC3MRX-B Features

  • Extra slim right-angle connector
  • 7 selectable cable outlet positions
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Get pristine sound with this Neutrik XLR male connector, featuring gold contacts for optimal signal transfer.
  • Enjoy superior durability; this right-angle XLR cable connector withstands over 1000 mating cycles easily.
  • This low noise XLR connector's right-angle design fits in tight spaces, perfect for stage or studio setups.
  • Ensure reliable connections; the Neutrik NC3MRX-B XLR connector's latch lock prevents accidental disconnections.
  • With a sleek black housing, this male audio connector offers both style and robust performance for pros.
  • Experience broad compatibility; this XLR cable connector supports 3.5 - 8.0 mm cable O.D. for versatile use.

What's in the box:

  • NC3MRX-B 3-Pole Right Angle XLR Male Cable Connector
  • Neutrik 6 Month Limited Warranty
