Review Summary
Contacts: Silver
Housing: Nickel
XLR
Male
<= 4 pF
<= 3 m Ohm
1.5 kVdc
> 10 G Ohm (initial)
16 A
< 50 V
3.5 - 8.0 mm
<= 20 N
<= 20 N
> 1000 mating cycles
Max. 2.5 mm 2
Max. 14 AWG
Solder contacts
Latch lock
Polyurethane
2 microm Ag
Brass (CuZn39Pb3)
Polyamide (PA 6.6 30 % GR)
Zinc diecast (ZnAl4Cu1)
Zinc diecast (ZnAl4Cu1)
Nickel
Polyacetal (POM)
UL
UL 94 HB
IEC 61076-2-103
IP 40
Complies with IEC 68-2-20
-22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

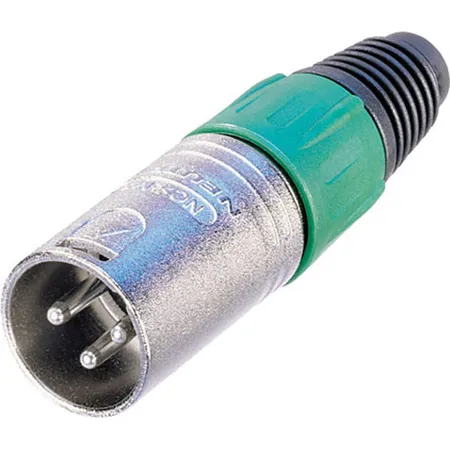

Bring professional quality to your audio setup with the NC3MX 3-Pole XLR Male Cable Connector, featuring a nickel housing and silver contacts. Recognized as the "industry standard" in the world of audio electronics, this XLR cable connector is designed for simplicity and durability.
The assembly process is straightforward, requiring only four components and completely eliminating the need for screws. This user-friendly design makes it an ideal choice for both audio professionals and enthusiasts alike.
The compact design of the NC3MX XLR connector doesn't compromise on strength. It boasts a robust diecast shell that ensures longevity and withstands regular use. The connector also features a fiberglass-reinforced hard plastic insert, providing additional durability and resistance against wear and tear.
One of the standout features of this XLR male cable connector is the chuck type strain relief. This innovative feature securely clamps all cables, reducing the risk of damage and ensuring a stable connection for optimal audio performance.
Incorporating the NC3MX 3-Pole XLR Male Cable Connector with Nickel Housing and Silver Contacts into your audio setup ensures a reliable, high-quality connection that stands the test of time.
