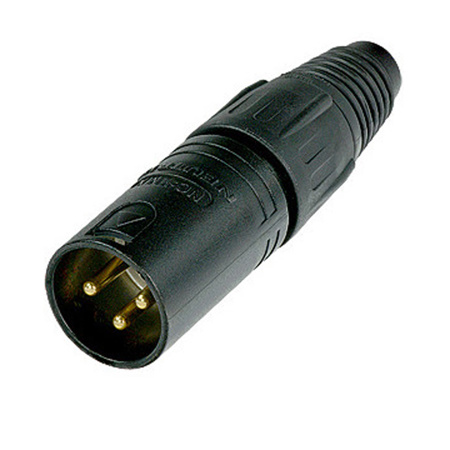

Neutrik NC3MXB 3-Pole XLR Male Cable Connector, Black Housing, Gold Contacts

SKU: NENC3MXB MFR: NC3MX-B
$4.74
Earn VIP Reward Points

Key Features

  • Ensure optimal sound quality with this Neutrik XLR male cable connector's gold contacts.
  • Achieve reliable connections for audio cables with a durable, latch-lock XLR connector.
  • This Neutrik XLR connector offers broad compatibility, fitting cables 3.5 - 8.0 mm in diameter.
  • Experience low noise signal transmission with premium materials in this XLR male connector.
  • This rugged XLR cable connector is perfect for pro audio, offering a long life of >1000 cycles.
  • Get superior durability with the black housing, designed for demanding audio environments.
See More Product Details
Special Order?Estimated to Ship: 08/25/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NC3MX-B Specifications

General

General

Jump to...
  • Color

    Contacts: Gold
    Housing: Black

  • Connection Type

    XLR

  • Gender

    Male

Electrical

Jump to...
  • Capacitance between contacts

    <= 4 pF

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    16 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    3.5 - 8.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    Max. 2.5 mm 2
    Max. 14 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    0.2 microm Au hard alloy over 2 microm Ni

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Approvals

    UL

  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

  • UPC Code

    7613187003202

About Neutrik NC3MX-B

Become the go-to professional for high-quality audio connections with the NC3MXB 3-Pole XLR Male Cable Connector. This connector is widely recognized as the "industry standard" for its reliability and ease of use. Designed for efficiency, it features a simple assembly process with only four components and no screws required, ensuring a hassle-free setup.

Crafted with a robust diecast shell, this XLR connector is built to withstand the rigors of both studio and field use. The black housing not only provides a sleek, professional appearance but also offers an additional layer of durability. Inside, a fiberglass reinforced hard plastic insert adds to the connector's strength and longevity, safeguarding your audio signal's integrity.

The NC3MXB is engineered with a chuck type strain relief system, which guarantees secure clamping of all cables. This innovative design not only protects the cable from damage but also ensures consistent, high-quality audio connections by preventing unwanted movement and disconnections.

Gold contacts are a standout feature of this connector, offering superior conductivity and corrosion resistance. This ensures that your audio signals are transmitted with the utmost clarity and minimal interference, resulting in pristine sound quality for every application.

Whether you're setting up a professional recording studio, live sound rig, or any other audio setup, the NC3MXB 3-Pole XLR Male Cable Connector is an essential component that promises reliability, ease of use, and exceptional audio performance.

Neutrik NC3MX-B Features

  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
  • Colored rings and boots available for coding and marking
  • UL recognized components

Key Features

  • Ensure optimal sound quality with this Neutrik XLR male cable connector's gold contacts.
  • Achieve reliable connections for audio cables with a durable, latch-lock XLR connector.
  • This Neutrik XLR connector offers broad compatibility, fitting cables 3.5 - 8.0 mm in diameter.
  • Experience low noise signal transmission with premium materials in this XLR male connector.
  • This rugged XLR cable connector is perfect for pro audio, offering a long life of >1000 cycles.
  • Get superior durability with the black housing, designed for demanding audio environments.

What's in the box:

  • NC3MXB 3-Pole XLR Male Cable Connector
  • Neutrik 6 Month Limited Warranty
