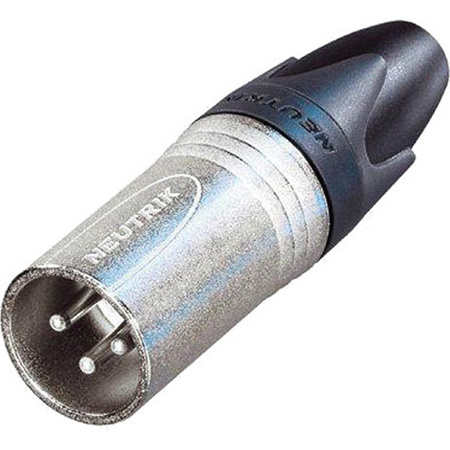

Neutrik NC3MXX 3-Pole XLR Male Cable Connector, Nickel Housing, Silver Contacts

SKU: NENC3MXX MFR: NC3MXX
$3.20
Earn VIP Reward Points

Key Features

  • Get superior audio with this Neutrik XLR male connector, perfect for pro-audio setups.
  • Ensure reliable connections with durable silver contacts for optimal signal transfer.
  • This robust XLR cable connector features a nickel housing, built to withstand demanding use.
  • Achieve secure latch locking, preventing accidental disconnections during critical performances.
  • Enjoy broad compatibility; this 3-pole XLR connector supports cables 3.5 - 8.0 mm in diameter.
  • Experience pristine sound quality; the Neutrik NC3MXX offers excellent shielding & performance.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NC3MXX Specifications

General

General

Jump to...
  • Color

    Contacts: Silver
    Housing: Nickel

  • Connection Type

    XLR

  • Gender

    Male

Electrical

Jump to...
  • Capacitance between contacts

    <= 4 pF

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    16 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    3.5 - 8.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    Max. 2.5 mm 2
    Max. 14 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    2 microm Ag

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Nickel

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to +176 Degree F (-30 Degree C to +80 Degree C)

  • UPC Code

    7613187000379

About Neutrik NC3MXX

Under the umbrella of top-tier audio equipment, the NC3MXX 3-Pole XLR Male Cable Connector stands out with its nickel housing and silver contacts. This advanced connector is the next evolution in the globally recognized standard of XLR cable connectors, marking a significant upgrade from the previous X series.

This 3-Pole XLR male cable connector is meticulously designed to enhance reliability and ease of assembly. It boasts a robust nickel housing that ensures durability and longevity, while its silver contacts provide superior conductivity for an uninterrupted audio experience.

One of the key features of the NC3MXX 3-Pole XLR Male Cable Connector is its improved contact integrity. This feature ensures a stable and secure connection, reducing the risk of signal loss and enhancing the overall audio quality.

Additionally, this XLR male cable connector offers enhanced cable strain relief. This innovative design feature reduces the pressure on the cable, minimizing the risk of damage and extending the lifespan of your audio equipment.

In summary, the NC3MXX 3-Pole XLR Male Cable Connector with nickel housing and silver contacts is a high-quality, reliable choice for anyone seeking to optimize their audio setup. Its advanced features and superior design make it a standout choice in the realm of audio and video equipment.

Neutrik NC3MXX Features

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, long lasting and dependable
  • Internal thread on shell is well protected against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Key Features

  • Get superior audio with this Neutrik XLR male connector, perfect for pro-audio setups.
  • Ensure reliable connections with durable silver contacts for optimal signal transfer.
  • This robust XLR cable connector features a nickel housing, built to withstand demanding use.
  • Achieve secure latch locking, preventing accidental disconnections during critical performances.
  • Enjoy broad compatibility; this 3-pole XLR connector supports cables 3.5 - 8.0 mm in diameter.
  • Experience pristine sound quality; the Neutrik NC3MXX offers excellent shielding & performance.

What's in the box:

  • NC3MXX 3-Pole XLR Male Cable Connector
  • Neutrik 6 Month Limited Warranty
