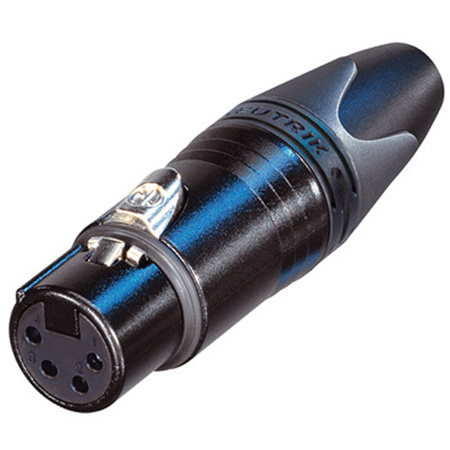

Neutrik NC4FXX-BAG 4-Pole XLR Female Cable Connector, Black Metal Housing, Silver Contacts

SKU: NENC4FXXBAG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NC4FXX-BAG Specifications

General

General

Jump to...
  • Color

    Housing: Black Metal
    Contacts: Silver

  • Connection Type

    XLR

  • Gender

    Female

Electrical

Jump to...
  • Capacitance between contacts

    <= 7 pF

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    10 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    3.5 - 8.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    max. 1.5 sq. mm
    max. 16 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    2 microm Ag over 2 microm Ni

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to 176 Degree F (-30 Degree C to +80 Degree C)

About Neutrik NC4FXX-BAG

Discover the NC4FXX-BAG 4-Pole XLR Female Cable Connector, a robust and reliable solution for your professional audio and video needs. Encased in a stylish black metal housing, this durable connector is designed to withstand the rigors of frequent use, ensuring longevity and consistent performance.

This connector is the next generation in the globally recognized standard of XLR cable connectors, succeeding the X series with enhanced features. It boasts silver contacts, known for their superior conductivity, ensuring a high-quality, uninterrupted connection for your audio and video applications.

The NC4FXX-BAG 4-Pole XLR Female Cable Connector is not just reliable, but also user-friendly. It's designed for easy assembly, saving you time and effort during setup. Additionally, it offers improved contact integrity and enhanced cable strain relief, providing a secure connection while preventing cable damage.

Whether you're a professional in the field or an enthusiast seeking reliable equipment, this connector is a perfect choice. It's a testament to Neutrik's commitment to producing high-quality, durable, and reliable audio and video connectors. Experience the difference in your audio and video connections with the NC4FXX-BAG 4-Pole XLR Female Cable Connector.

Neutrik NC4FXX-BAG Features

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Colored rings and boots available for coding or identification
  • Rugged zinc diecast shell, long lasting and dependable
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Additional ground spring contacts for better shell ground continuity
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Internal thread on shell is well protected against any damage

Key Features

  • Ensure optimal sound quality with this Neutrik 4-pole female XLR cable connector.
  • Built with durable black metal housing, this XLR connector withstands frequent use.
  • Achieve secure connections with the latch lock, perfect for pro audio setups.
  • Experience reliable audio signal transfer thanks to silver-plated contacts.
  • This female XLR cable connector offers wide compatibility for various audio devices.
  • Withstand tough conditions; temperature range: -22°F to 176°F for lasting performance.

What's in the box:

  • NC4FXX-BAG 4-Pole XLR Female Cable Connector
  • Neutrik 6 Month Limited Warranty
