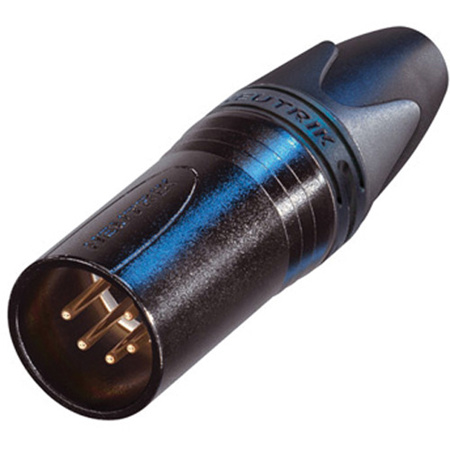

Neutrik NC5MXX-B 5-Pole XLR Male Cable Connector, Black Metal Housing, Gold Contacts

SKU: NENC5MXXB MFR: NC5MXX-B
$6.71
$7.83
Save: $1.12 (14%)
Earn VIP Reward Points

Key Features

  • Experience superior audio with this Neutrik 5-pole XLR male cable connector.
  • Achieve optimal signal transfer with gold contacts on this durable XLR connector.
  • This Neutrik XLR cable connector's black metal housing provides enhanced shielding.
  • Reliable latch lock ensures secure connections for professional audio setups.
  • Use this 5-pole XLR connector for balanced audio in microphones and mixing consoles.
  • Dependable Neutrik connector supports up to 7.5A, ideal for high-quality audio.
See More Product Details
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NC5MXX-B Specifications

General

General

Jump to...
  • Color

    Housing: Black Metal
    Contacts: Gold

  • Connection Type

    XLR

  • Gender

    Male

Electrical

Jump to...
  • Capacitance between contacts

    <= 7 pF

  • Contact resistance

    <= 3 m Ohm

  • Dielectric strength

    1.5 kVdc

  • Insulation resistance

    > 10 G Ohm (initial)

  • Rated current per contact

    7.5 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    3.5 - 8.0 mm

  • Insertion force

    <= 20 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    max. 1.0 sq. mm
    max. 18 AWG

  • Wiring

    Solder contacts

  • Locking device

    Latch lock

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    0.2 microm Au hard alloy over 2 microm Ni

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Standard compliance

    IEC 61076-2-103

  • Protection class

    IP 40

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 Degree F to 176 Degree F (-30 Degree C to +80 Degree C)

  • UPC Code

    7613187000287

About Neutrik NC5MXX-B

Over the years, the XLR cable connector has become a staple in professional audio and video setups, and the NC5MXX-B 5-Pole XLR Male Cable Connector is the latest innovation in this essential component's evolution. Boasting a robust black metal housing, this connector is engineered for durability and longevity in even the most demanding environments. The gold contacts are not just a mark of quality; they ensure superior signal integrity and consistent, high-quality connections that audio professionals can rely on.

The NC5MXX-B is the next generation in the globally recognized standard of XLR connectors, building upon the legacy of its predecessors with several advancements. These enhancements are designed to offer increased reliability and ease of assembly, which are critical in fast-paced production settings. The improved contact integrity ensures that your connections are not just secure, but also offer the best possible audio signal transmission.

Additionally, the cable strain relief system has been meticulously refined. This feature is crucial for protecting the cable from the wear and tear that comes with regular plugging and unplugging, as well as the rigors of on-the-go use. The strain relief system helps to extend the life of your cables, saving you time and money in the long run.

The NC5MXX-B 5-Pole XLR Male Cable Connector is an ideal choice for professionals who need reliable, high-quality connections for their audio and video equipment. Whether you're setting up a studio, rigging a live event, or assembling a broadcast setup, this connector is designed to meet the highest standards of the industry. With its combination of rugged construction, enhanced features, and gold-plated contacts, the NC5MXX-B is set to become the new standard bearer for XLR connectors in the professional audio-visual field.

Neutrik NC5MXX-B Features

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Internal thread on shell is well protected against any damage
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Colored rings and boots available for coding or identification
  • Rugged zinc diecast shell, long lasting and dependable
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Key Features

  • Experience superior audio with this Neutrik 5-pole XLR male cable connector.
  • Achieve optimal signal transfer with gold contacts on this durable XLR connector.
  • This Neutrik XLR cable connector's black metal housing provides enhanced shielding.
  • Reliable latch lock ensures secure connections for professional audio setups.
  • Use this 5-pole XLR connector for balanced audio in microphones and mixing consoles.
  • Dependable Neutrik connector supports up to 7.5A, ideal for high-quality audio.

What's in the box:

  • NC5MXX-B 5-Pole XLR Male Cable Connector
  • Neutrik 6 Month Limited Warranty
