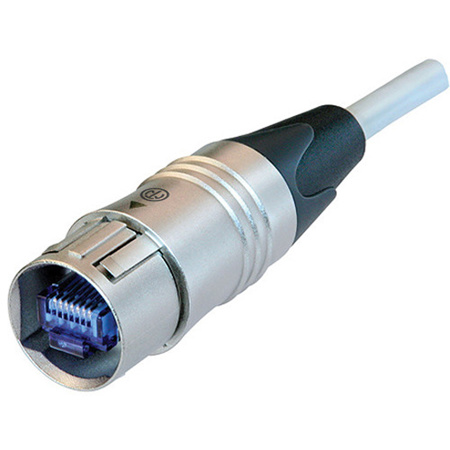

Neutrik NKE6S-30-WOC 98.4' etherCON CAT6 Patch Cable

SKU: NENKE6S30WOC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the length of the NKE6S-30-WOC etherCON CAT6 Patch Cable?

The NKE6S-30-WOC etherCON CAT6 Patch Cable is 98.4 feet long.

What type of connectors does this CAT6 patch cable have?

This CAT6 patch cable has a male RJ45 connector on one end and a female RJ45 connector on the other end.

What is the shielding type of the NKE6S-30-WOC etherCON CAT6 Patch Cable?

The NKE6S-30-WOC etherCON CAT6 Patch Cable uses a shielded S/FTP cable design to minimize electromagnetic interference.

What type of locking system does this patch cable use?

This patch cable uses a Push-Pull locking system for secure and stable connections.

Is the NKE6S-30-WOC etherCON CAT6 Patch Cable suitable for professional audio and video applications?

Yes, the NKE6S-30-WOC etherCON CAT6 Patch Cable is suitable for professional audio and video applications, thanks to its high-speed data transmission capability.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Neutrik NKE6S-30-WOC Specifications

General

General

Jump to...
  • Color

    Black

  • Gender

    male

Electrical

Jump to...
  • Contact resistance

    < 10 m Ohm

  • Dielectric strength

    1 kVdc

  • Frequency range

    1 - 250 MHz

  • Insulation resistance

    >= 0.5 G Ohm

  • Rated current per contact

    1.5 A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Insertion force

    <= 40 N

  • Withdrawal force

    <= 20 N

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    8 x AWG 27/7 sq. mm

  • Locking device

    Push-Pull

Material

Jump to...
  • Boot

    Polyurethane

  • Contact plating

    0.7 microm Au over 1.2 microm Ni plating

  • Contacts

    Bronze (CuSn8)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Nickel

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Standard compliance

    CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173

  • Protection class

    IP 65

  • Temperature range

    14 Degree F to 140 Degree F (-10 Degree C to +60 Degree C)

About Neutrik NKE6S-30-WOC

It's the NKE6S-30-WOC 98.4' etherCON CAT6 Patch Cable, a top-tier networking solution designed for high-speed data transmission. Crafted by the renowned brand, Neutrik, this durable and high-quality CAT6 patch cable is an essential tool for professional audio and video applications.

This reliable patch cable is constructed with a shielded S/FTP cable that ensures optimal signal integrity, reducing electromagnetic interference for consistent, high-speed data transfer. The robust metal shell of the cable plug carrier not only enhances its durability but also provides superior protection against physical damage.

The cable features the innovative Push-Pull locking system, a design that guarantees secure and stable connections. With a male RJ45 connector on one end and a female RJ45 connector on the other, this flexible CAT6 patch cable facilitates easy and efficient connections between various Ethernet-enabled devices such as computers, routers, switches, and other networking equipment.

Whether you're setting up a professional audio/video system or enhancing your home network, the NKE6S-30-WOC 98.4' etherCON CAT6 Patch Cable is an easy-to-use, reliable choice that delivers exceptional performance.

Neutrik NKE6S-30-WOC Features

  • CAT6 compliant- data rate up to 10 GBit/s
  • CAT6 performance- fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ready made patch cables with rugged cable carrier and unique chuck-type strain relief

Key Features

  • Experience reliable connectivity with this 98.4' CAT6 Ethernet cable for seamless data transfer.
  • Ensure robust performance; this Neutrik etherCON cable supports frequencies up to 250 MHz.
  • Built to last: Enjoy over 1000 mating cycles with the durable Neutrik CAT6 patch cable.
  • With its rugged polyurethane boot, this Ethernet cable is designed for demanding environments.
  • Get superior signal integrity; the gold-plated contacts ensure optimal CAT6 network performance.
  • This shielded etherCON cable provides a secure and stable connection, ideal for pro audio/video.

What's in the box:

  • NKE6S-30-WOC 98.4' etherCON CAT6 Patch Cable
  • Neutrik 6 Month Limited Warranty
