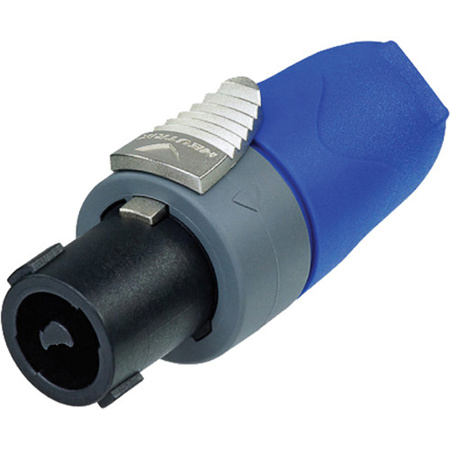

Neutrik NL2FX 2-Pole Female speakON Connector
See all Neutrik items

Neutrik NL2FX 2-Pole Female speakON Connector

SKU: NENL2FX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Neutrik NL2FX Specifications

General

General

Jump to...

  • Connection Type

    speakON

  • Gender

    Female

Electrical

Jump to...

  • Contact resistance

    < 2 m Ohm (after lifetime)

  • Dielectric strength

    4 kVdc (peak)

  • Insulation resistance

    > 1 G Ohm (after dampheat)

  • Rated current per contact

    40 A rms continuous
    50 A audiosignal, duty cycle 50 %

  • Rated voltage

    250 V ac

Mechanical

Jump to...

  • Cable O.D.

    6 - 10 mm

  • Cable retention

    >= 220 N (subject to cable O.D. and material)

  • Lifetime

    > 5000 mating cycles

  • Wiresize

    1.5 - 4 sq. mm
    16 - 12 AWG

  • Wiring

    screw type terminals or soldering

  • Locking device

    Quick Lock (latch)

Material

Jump to...

  • Contact plating

    4 microm Ag

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    PBTP 20 % GR

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    PBTP 20 % GR

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...

  • Flammability

    UL 94 HB

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NL2FX

2 pole cable connector, chuck type strain relief

The industry-standard for loudspeaker connections offer extremely reliable and robust cable connectors with a reliable locking system. They feature solid contacts with screw-type terminals including a stranded wire protection which offer also solder termination.

Neutrik NL2FX Features

  • Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
  • Only 3 parts, easy to assemble
  • High impact materials - long-lasting and reliable
  • Easy and extremely precise locking system "Quick Lock"
  • 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
  • Improved grip on latch
  • Mates with 4-pole chassis connector as well and makes contact with +1/-1

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
  • Only 3 parts, easy to assemble
  • High impact materials - long-lasting and reliable
  • Easy and extremely precise locking system "Quick Lock"
  • 1 piece strain relief, chuck for 6 to 10 mm cable O.D.
  • Improved grip on latch

What's in the box:

  • NL2FX 2-Pole Female speakON Connector
  • Neutrik 6 Month Limited Warranty
