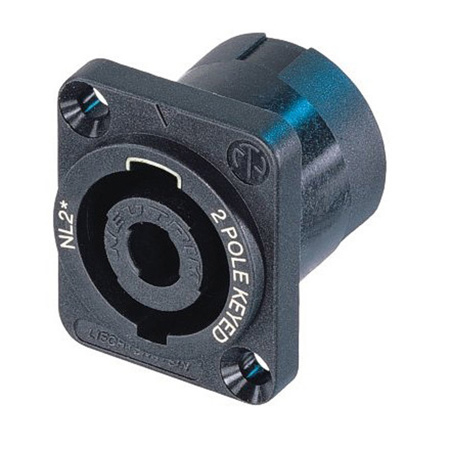

Neutrik NL2MP SpeakON 2-Pole Male Chassis Connector
See all Neutrik items

Neutrik NL2MP SpeakON 2-Pole Male Chassis Connector

SKU: NENL2MP
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Neutrik NL2MP Specifications

General

General

Jump to...

  • Gender

    Male

Electrical

Jump to...

  • Contact resistance

    <= 3 m Ohm (after lifetime)

  • Dielectric strength

    4 kVdc (peak)

  • Insulation resistance

    > 1 G Ohm (after dampheat)

  • Rated current per contact

    30 A rms continuous
    40 A audiosignal, duty cycle 50 %

  • Rated voltage

    250 V ac

Mechanical

Jump to...

  • Lifetime

    > 5000 mating cycles

  • Locking device

    Quick Lock

  • Chassis shape

    D

  • Layout

    Standard hole position, thru holes

Material

Jump to...

  • Contact plating

    4 microm Ag

  • Contacts

    Bronze (CuSn6)

  • Shell

    Polyamide (PA 6 30 % GR) black

Environmental

Jump to...

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NL2MP

2 pole chassis connector, black D-size flange, countersunk thruholes, 3/16" flat tabs. Does not intermate with the 4-pole cable connector

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Neutrik NL2MP Features

  • Current rating 30 A rms
  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Get a reliable audio connection with this durable Neutrik SpeakON male connector.
  • Ensure optimal sound quality with gold-plated contacts for clear audio signals.
  • This SpeakON connector offers broad compatibility, fitting standard D-size chassis.
  • Enjoy secure connections; its quick lock system prevents accidental disconnections.
  • Perfect for amp and speaker setups, this audio connector handles high current.
  • Built to last, this Neutrik connector endures over 5000 mating cycles easily.

What's in the box:

  • NL2MP SpeakON 2-Pole Male Chassis Connector
  • Neutrik 6 Month Limited Warranty
