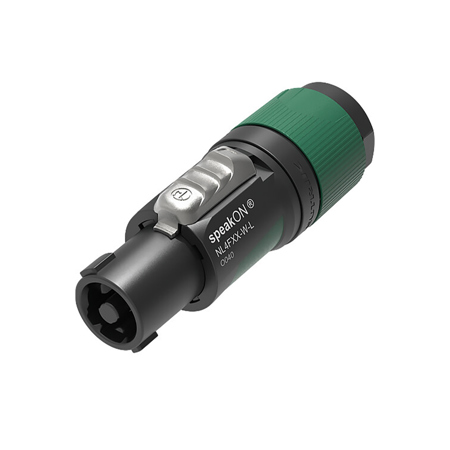

Neutrik NL4FXX-W-L 4 Pole speakON Connector for Cable Diameters 10 to 16mm

SKU: NENL4FXXWL MFR: NL4FXX-W-L
$5.63
Earn VIP Reward Points

Key Features

  • Get a reliable, pro-grade connection with this Neutrik speakON connector for your audio setup.
  • Ensure optimal sound quality with a robust speakON connector, designed for durability and performance.
  • This 4 pole speakON connector supports 10-16mm cables, perfect for high-power audio applications.
  • Experience secure, twist-lock connectivity with a speakON connector, ideal for live sound environments.
  • Enjoy long-lasting performance with a speakON connector tested for 5,000+ mating cycles, built to last.
  • Achieve low noise and crystal-clear audio with a high-quality Neutrik speakON cable connector.
See More Product Details
Special Order?Estimated to Ship: 09/08/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NL4FXX-W-L Specifications

Electrical

Electrical

Jump to...
  • Connector series

    speakON 4 pole

  • Contact resistance

    <= 2 m Ohm

  • Dielectric strength

    2.8 kVac

  • Insulation resistance

    > 10 G Ohm (initially)

  • Number of electrical contacts

    4

  • Rating USA

    UL1977: 35 A 250 V AC

Mechanical

Jump to...
  • Cable O.D.

    10 - 16mm

  • Lifetime

    Typically 5'000 mating cycles

  • Wire size

    17 - 11 AWG (1.5 - 4 sq. mm)

  • Locking device

    Twist lock

  • Termination

    screw type terminals

Material

Jump to...
  • Contact plating

    Ag

  • Contacts

    Copper Alloy

  • Insert

    Polyamide (PA6.6)

  • Locking element

    Zinc diecast

  • Shell

    Polyamide (PA6) / TPE

  • Strain relief

    Polyketone

  • Bushing

    Polypropylene / TPE

Environmental

Jump to...
  • Temperature range

    -27.4 Degree F to 176 Degree F (-33 Degree C to +80 Degree C)

  • Protection class

    IP20

  • Flammability acc. to UL94

    V-0

About Neutrik NL4FXX-W-L

A 4 Pole speakON cable connector, the Neutrik NL4FXX-W-L is engineered for optimal performance and reliability in professional audio applications. Designed to accommodate cable diameters ranging from 10 to 16mm, this connector features a screw terminal assembly that ensures secure and efficient connections. The chuck type strain relief provides enhanced durability, making it ideal for demanding environments. As the industry standard for loudspeaker connections, speakON connectors are renowned for their robust construction and dependable twist lock system, which guarantees a secure fit. The Neutrik NL4FXX-W-L also includes solid contacts with screw-type terminals, offering superior stranded wire protection for consistent audio signal transmission. Whether used in live sound, studio settings, or fixed installations, this connector delivers exceptional performance and reliability.

Neutrik NL4FXX-W-L Features

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 10mm to 16mm
  • IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Get a reliable, pro-grade connection with this Neutrik speakON connector for your audio setup.
  • Ensure optimal sound quality with a robust speakON connector, designed for durability and performance.
  • This 4 pole speakON connector supports 10-16mm cables, perfect for high-power audio applications.
  • Experience secure, twist-lock connectivity with a speakON connector, ideal for live sound environments.
  • Enjoy long-lasting performance with a speakON connector tested for 5,000+ mating cycles, built to last.
  • Achieve low noise and crystal-clear audio with a high-quality Neutrik speakON cable connector.

What's in the box:

  • Neutrik NL4FXX-W-L 4 Pole speakON Connector
  • Neutrik 2 Year Limited Warranty
