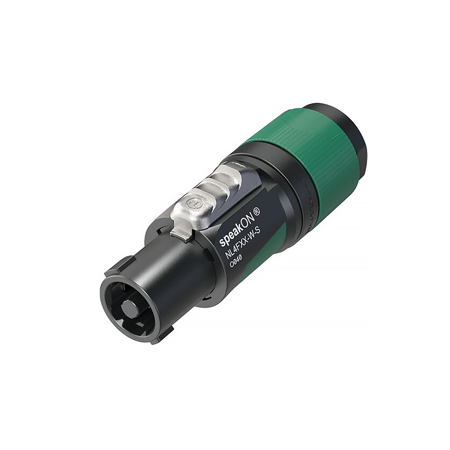

Neutrik NL4FXX-W-S 4 Pole speakON Connector for Cable Diameters 6 to 12mm
See all Neutrik items

Neutrik NL4FXX-W-S 4 Pole speakON Connector for Cable Diameters 6 to 12mm

SKU: NENL4FXXWS MFR: NL4FXX-W-S
Be the first to review this itemAsk a Question
$5.63
Earn VIP Reward Points

Key Features

  • Reliable Neutrik speakON connector ensures crystal-clear audio signal every time.
  • Durable twist lock guarantees a secure connection, preventing accidental disconnections.
  • This 4 pole speakON connector supports 17 to 11 AWG wire, offering versatile use.
  • Withstands 5000 mating cycles, this speakON connector is built for long-term use.
  • Temperature range -27.4F to 176F makes this audio connector perfect for any environment.
  • Neutrik connector's polyamide shell and strain relief ensure enhanced durability.
See More Product Details
Special Order?Estimated to Ship: 12/10/2025
Calculate Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of cables is the Neutrik NL4FXX-W-S connector compatible with?

The Neutrik NL4FXX-W-S connector is compatible with cables that have diameters ranging from 6 to 12mm.

What makes the Neutrik NL4FXX-W-S connector reliable for loudspeaker connections?

The connector features a proven twist lock system, solid contacts, and screw-type terminals, ensuring a reliable and secure connection.

What type of terminals does the Neutrik NL4FXX-W-S connector use?

The Neutrik NL4FXX-W-S connector uses screw-type terminals, which provide excellent stranded wire protection.

Is the Neutrik NL4FXX-W-S connector suitable for professional audio applications?

Yes, the Neutrik NL4FXX-W-S connector is designed to meet the demanding needs of professional audio applications, offering robust performance and reliability.

Reviews about this item

Review Summary

Neutrik NL4FXX-W-S Specifications

Electrical

Electrical

Jump to...

  • Connector series

    speakON 4 pole

  • Contact resistance

    <= 2 m Ohm

  • Dielectric strength

    2.8 kVac

  • Insulation resistance

    > 10 G Ohm (initially)

  • Number of electrical contacts

    4

  • Rating USA

    UL1977: 35 A 250 V AC

Mechanical

Jump to...

  • Cable O.D.

    6 - 12mm

  • Lifetime

    typically 5'000 mating cycles

  • Wire size

    17 - 11 AWG (1.5 - 4 sq. mm)

  • Locking device

    Twist lock

  • Termination

    Screw type terminals

Material

Jump to...

  • Contact plating

    Ag

  • Contacts

    Copper Alloy

  • Insert

    Polyamide (PA6.6)

  • Locking element

    Zinc diecast

  • Shell

    Polyamide (PA6) / TPE

  • Strain relief

    Polyketone

  • Bushing

    Polypropylene / TPE

Environmental

Jump to...

  • Temperature range

    -27.4 Degree F to 176 Degree F (-33 Degree C to +80 Degree C)

  • Protection class

    IP20

  • Flammability acc. to UL94

    V-0

About Neutrik NL4FXX-W-S

Experience the industry-standard in loudspeaker connections with the Neutrik NL4FXX-W-S 4 Pole speakON Connector, designed for cable diameters ranging from 6 to 12mm. This high-performance connector is engineered with a screw terminal assembly and a chuck type strain relief, ensuring a secure and stable connection for your audio equipment. The Neutrik NL4FXX-W-S series is renowned for its reliability and durability, featuring a proven twist lock system that guarantees a firm and safe connection every time. The speakON cable connectors are equipped with solid contacts and screw-type terminals, providing excellent stranded wire protection. Ideal for professional audio applications, this connector is a robust solution that meets the demanding needs of sound engineers and audio technicians. Enhance your audio setup with the Neutrik NL4FXX-W-S, the trusted choice for superior sound quality and performance.

Neutrik NL4FXX-W-S Features

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing

Warranty Information

This product has a limited warranty of 24 months.
