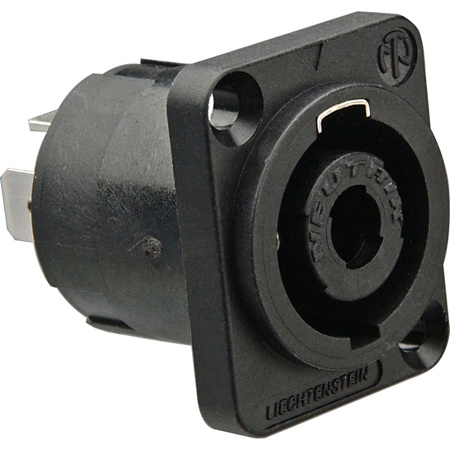

Neutrik NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector

SKU: NENL4MPUC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the metal locking system on the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector?

The unique metal locking system on the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector ensures that contact is only made once the connector is fully locked. This provides an extra layer of stability and safety for your audio equipment setup.

What kind of audio equipment is the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector compatible with?

The NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector is a standard chassis connector for loudspeaker and amplifier interconnections. It's ideal for both professional audio systems and home theater setups.

How easy is it to install the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector?

The NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector is designed to be user-friendly and easy to terminate, making the installation process straightforward and hassle-free.

What is the duty cycle of the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector?

The NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector has a duty cycle of 50%. This means it's designed to handle 50 A audio signal half of the time, ensuring optimal performance and reliability for your audio equipment.

Reviews about this item

Review Summary

Neutrik NL4MP-UC Specifications

General

General

Jump to...
  • Connection Type

    speakON

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    <= 3 m Ohm (after lifetime)

  • Dielectric strength

    4 kVdc (peak)

  • Insulation resistance

    > 1 G Ohm (after dampheat)

  • Rated current per contact

    40 A rms continuous
    50 A audiosignal, duty cycle 50 %

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Lifetime

    > 5000 mating cycles

  • Locking device

    Quick Lock

  • Chassis shape

    D

  • Layout

    standard hole position, thru holes

Material

Jump to...
  • Contact plating

    4 microm Ag

  • Contacts

    Spring copper

  • Shell

    Polyamide (PA 6 30 % GR) black

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NL4MP-UC

Before you finalize your audio equipment setup, consider the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector, a vital component for any high-quality sound system. This 4-pole chassis connector is designed to handle 40 A rms continuous and 50 A audio signal with a duty cycle of 50%, ensuring optimal performance and reliability for your audio equipment.

Constructed with a black D-size flange, this SpeakON connector features countersunk through holes and 1/4" flat tabs, offering a sleek and professional appearance while maintaining its robust functionality. As a standard chassis connector for loudspeaker and amplifier interconnections, it's an essential piece of equipment for any audio setup.

One of the standout features of the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector is its unique metal locking system. This system ensures contact is only made once the connector is fully locked, providing an extra layer of safety and stability.

The SpeakON receptacles are not only robust and versatile but also easy to terminate, making installation and maintenance a breeze. Whether you're setting up a professional audio system or enhancing your home theater, the NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector is a reliable and high-performing choice.

Neutrik NL4MP-UC Features

  • Glass reinforced materials make it extremely robust and dependable
  • Precise keyway for secure mating
  • Accurate twist lock latching system
  • Metal insert in locking area
  • Airtight design - optimized for speaker applications
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product

Key Features

  • Get a reliable audio connection with this durable Neutrik speakON connector.
  • Ensure optimal sound quality with a 4-pole chassis-mount speakON connector.
  • This male Neutrik connector offers a quick lock for secure connections.
  • Experience long-lasting performance with a connector rated for 5000+ cycles.
  • Achieve high conductivity with silver-plated contacts in this speakON.
  • Trust Neutrik for professional audio; this connector handles up to 40A rms.

What's in the box:

  • NL4MP-UC 4-Pole Chassis-Mount SpeakON Connector
  • Neutrik 6 Month Limited Warranty
