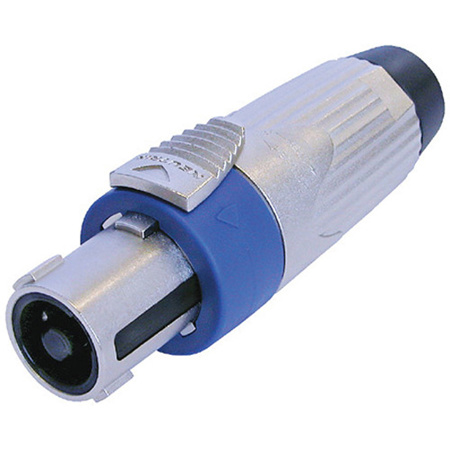

Neutrik NLT4FX STX Series 4-Pole SpeakON Female Connector
See all Neutrik items

Neutrik NLT4FX STX Series 4-Pole SpeakON Female Connector

SKU: NENLT4FX
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Neutrik NLT4FX Specifications

General

General

Jump to...

  • Connection Type

    SpeakON

  • Gender

    Female

Electrical

Jump to...

  • Contact resistance

    < 2 m Ohm (after lifetime)

  • Dielectric strength

    4 kVdc (peak)

  • Insulation resistance

    > 10 G Ohm

  • Rated current per contact

    40 A rms continuous
    50 A audiosignal, duty cycle 50 %

  • Rated voltage

    250 V ac

Mechanical

Jump to...

  • Cable O.D.

    9 - 16 mm

  • Cable retention

    >= 220 N (subject to cable O.D. and material)

  • Lifetime

    > 5000 mating cycles

  • Wiresize

    6 sq. mm
    10 AWG

  • Wiring

    Solder contacts

  • Locking device

    Quick Lock (latch)

Material

Jump to...

  • Contact plating

    4 microm Ag

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...

  • Flammability

    UL 94 HB

  • Protection class

    IP 54 (mated condition)

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NLT4FX

4 pole female cable connector, nickel housing, chuck type strain relief

The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX Series features an all metal housing.

Neutrik NLT4FX Features

  • Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating in mated condition
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6 sq. mm (AWG 10) wires
  • Mate with all available speakON products

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ensure optimal sound quality with this Neutrik SpeakON female connector.
  • Durable construction guarantees a reliable audio connection for years.
  • This 4-pole SpeakON connector is perfect for high-power amplifier setups.
  • Quick Lock system ensures a secure and stable connection every time.
  • Compatible with 10 AWG cables, making wiring a breeze for any setup.
  • Shielded against interference, delivering clean audio in any environment.

What's in the box:

  • NLT4FX STX Series 4-Pole SpeakON Female Connector
  • Neutrik 6 Month Limited Warranty
