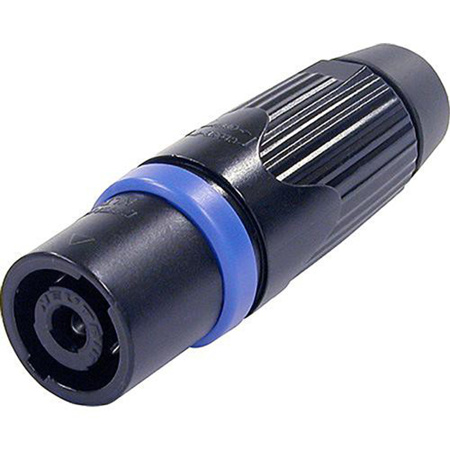

Neutrik NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector

SKU: NENLT4MXBAG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main use of the NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector?

The NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector is primarily used for high-intensity amplifier-loudspeaker connections, making it ideal for professional touring and heavy-duty audio applications.

What type of strain relief does the NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector feature?

This SpeakON Male Connector features a chuck type strain relief, designed to withstand the rigors of constant plugging and unplugging.

What is the housing material of the NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector?

The NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector is housed in a black-chrome metal casing, ensuring its durability and longevity.

Who is the target user for the NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector?

The NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector is designed for both professional touring artists and audio enthusiasts who require robust and reliable audio connections.

Reviews about this item

Review Summary

Neutrik NLT4MX-BAG Specifications

General

General

Jump to...
  • Color

    Housing: Nickel housing

  • Connection Type

    speakON

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    < 2 m Ohm (after lifetime)

  • Dielectric strength

    4 kVdc (peak)

  • Insulation resistance

    > 10 G Ohm

  • Rated current per contact

    40 A rms continuous
    50 A audiosignal, duty cycle 50 %

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Cable O.D.

    9 - 16 mm

  • Cable retention

    >= 220 N (subject to cable O.D. and material)

  • Lifetime

    > 5000 mating cycles

  • Wiresize

    6 sq. mm
    10 AWG

  • Wiring

    Solder contacts

  • Locking device

    Quick Lock (latch)

Material

Jump to...
  • Contact plating

    4 microm Ag

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6 30 % GR)

  • Locking element

    Zinc diecast (ZnAl4Cu1)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Flammability

    UL 94 HB

  • Protection class

    IP 54 (mated condition)

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -22 to 176 Degree F (-30 to +80 Degree C)

About Neutrik NLT4MX-BAG

Explore the robust capabilities of the NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector, a vital accessory for your audio equipment. This 4-pole male cable connector is housed in a black-chrome metal casing, ensuring its durability and longevity. It features a chuck type strain relief, designed to withstand the rigors of constant plugging and unplugging, making it an ideal choice for heavy-duty applications.

The SpeakON STX Series is specifically engineered for high-intensity amplifier-loudspeaker connections, making it a go-to choice for professional touring. Its rugged construction and all-metal housing are testament to its durability, ensuring it can withstand the demands of professional audio setups.

Whether you're a touring professional or an audio enthusiast, the NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector offers reliable, high-quality connections for your audio equipment. Its robust design and superior performance make it a standout in the realm of audio connectors. Experience the difference in sound quality and durability with this SpeakON Male Connector.

Neutrik NLT4MX-BAG Features

  • Current rating 40 A continuous, 50 A audio signal with 50% duty cycle
  • Robust and durable all metal housing
  • Sealing ring provides weatherproof IP54 rating in mated condition
  • Reinforced metal quick lock system for ease and precise locking
  • Extra large solder contacts for up to 6 sq. mm (AWG 10) wires
  • Mate with all available speakON products

Key Features

  • 4-pole male cable connector for robust audio connections
  • Housed in durable black-chrome metal casing for longevity
  • Features chuck type strain relief, ideal for heavy-duty use
  • Designed specifically for high-intensity amplifier-loudspeaker applications
  • Ideal choice for professional touring and audio enthusiasts
  • Offers superior performance and enhanced sound quality

What's in the box:

  • NLT4MX-BAG STX Series 4-Pole SpeakON Male Connector
  • Neutrik 6 Month Limited Warranty
