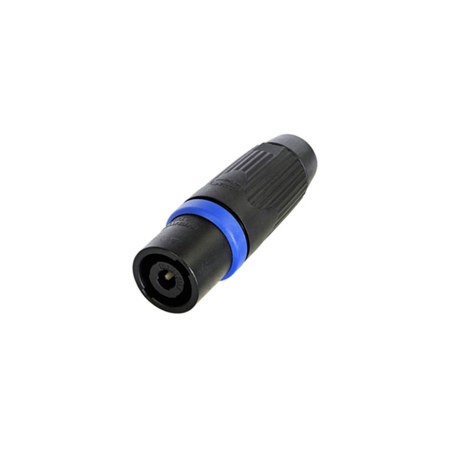

Neutrik NLT4MXX-BAG STXX Series 4-Pole SpeakON Male Connector, Black Housing

SKU: NENLT4MXXBAG MFR: NLT4MXX-BAG
$14.73
$17.18
Save: $2.45 (14%)
Earn VIP Reward Points

Key Features

  • Ensure top-notch audio signal quality with this robust Neutrik SpeakON male connector.
  • Built for durability, this 4-pole audio connector withstands over 5000 mating cycles!
  • Achieve a secure, quick-lock connection for your pro audio cables with ease.
  • Wide cable compatibility: fits 9-16mm O.D. cables, perfect for various audio setups.
  • This SpeakON connector's black housing and silver contacts offer both style and function.
  • Rely on this Neutrik connector for a stable 30A current, ideal for high-power amps.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Neutrik NLT4MXX-BAG Specifications

General

General

Jump to...
  • Color

    Housing: Black
    Contacts: Silver

  • Connection Type

    SpeakON

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    < 2 m Ohm

  • Dielectric strength

    2.8 kVac

  • Insulation resistance

    > 0.1 G Ohm (after dampheat)

  • Rated current per contact

    30 A rms continuous

  • Rated voltage

    250 V ac

Mechanical

Jump to...
  • Cable O.D.

    9-16mm

  • Lifetime

    > 5000 mating cycles

  • Wire size

    6 sq. mm
    10 AWG

  • Termination

    Solder contacts

  • Locking device

    Quick Lock

Material

Jump to...
  • Contact plating

    Ag

  • Contacts

    Copper Alloy

  • Shell

    Zinc diecast, black chrome plated

  • Insert

    Polyamide (PA 66)

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Temperature range

    -22 Degree to 176 Degree F (-30 Degree C to +80 Degree C)

  • Flammability

    UL 94 V-0

  • Protection class

    IP 54 (mated condition)

  • Solderability

    Complies with IEC68-2-20

About Neutrik NLT4MXX-BAG

Take your audio connections to the next level with the Neutrik NLT4MXX-BAG STXX Series 4-Pole SpeakON Male Connector, featuring a robust black metal housing. This high-performance connector is engineered for heavy-duty amplifier-loudspeaker applications, making it an ideal choice for professional touring and demanding audio environments. The 4-pole male cable connector is equipped with a chuck type strain relief, ensuring secure and reliable connections even under the most strenuous conditions.

Designed with durability in mind, the STXX Series boasts an all-metal housing that provides exceptional ruggedness, capable of withstanding the rigors of frequent use and transport. Fully compliant with the IEC 62368-1 device standard, this connector is certified according to IEC 61984, guaranteeing safety and reliability in your audio setups. Whether you're setting up for a concert or a large-scale event, the Neutrik NLT4MXX-BAG ensures your sound system performs at its best, delivering clear and powerful audio transmission every time.

Neutrik NLT4MXX-BAG Features

  • IEC 61984 certified, IEC 62368-1 compliant
  • Uses precise "Quick Lock" system
  • Weatherproof built-in gasket meets IP 54 protection class in mated condition
  • Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
  • Extra large solder contacts for up to 6 sq. mm (AWG 10) wires

Warranty Information

This product has a limited warranty of 6 months for parts and 6 months for labor.

Key Features

  • Ensure top-notch audio signal quality with this robust Neutrik SpeakON male connector.
  • Built for durability, this 4-pole audio connector withstands over 5000 mating cycles!
  • Achieve a secure, quick-lock connection for your pro audio cables with ease.
  • Wide cable compatibility: fits 9-16mm O.D. cables, perfect for various audio setups.
  • This SpeakON connector's black housing and silver contacts offer both style and function.
  • Rely on this Neutrik connector for a stable 30A current, ideal for high-power amps.

What's in the box:

  • Neutrik NLT4MXX-BAG STXX Series 4-Pole SpeakON Male Connector
  • Neutrik 6 Month Limited Warranty
