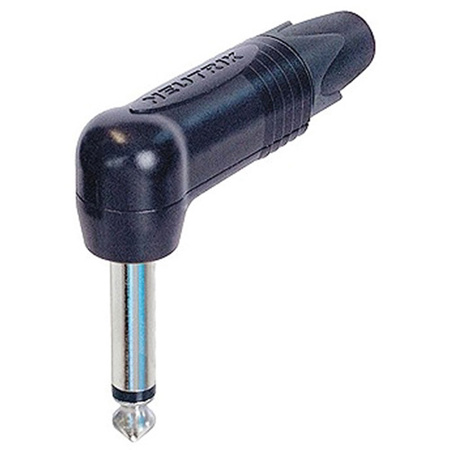

Neutrik NP2RX-BAG 2-Pole 1/4" Professional Right Angle Phone Plug, Black Shell, Nickel Contacts

SKU: NENP2RXBAG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the advantage of the right-angle design of this phone plug?

The right-angle design of the NP2RX-BAG phone plug allows for easier plugging, especially in tight spaces where a straight plug wouldn't be practical. It's especially useful for professional audio and video setups.

What is the Neutrik chuck type strain relief feature?

The Neutrik chuck type strain relief is an innovative design feature that provides superior cable retention and minimizes stress on the connection points, enhancing the overall reliability and longevity of the plug.

What applications is this phone plug suitable for?

The NP2RX-BAG phone plug is versatile and suitable for a range of applications. It can be used to connect guitars and audio cables, and can be integrated with snakes, speakers, amplifiers, and mixing desks.

What does the one-piece tip contact do?

The precision-machined one-piece tip contact is a unique design feature that eliminates the risk of the tip hooking up in a socket or breaking off. This ensures a consistent, high-quality connection at all times.

Who is this phone plug designed for?

The NP2RX-BAG phone plug is designed for anyone in need of a professional-grade audio connection, including musicians, sound engineers, and AV professionals. Its durable design and high-quality materials make it a reliable choice for any audio or video setup.

Reviews about this item

Review Summary

Neutrik NP2RX-BAG Specifications

General

General

Jump to...
  • Color

    Shell: Black
    Contacts: Nickel

  • Connection Type

    Plug

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    depends on mating connector m Ohm

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    depends on mating connector A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    4 - 7 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    1 sq. mm
    18 AWG

  • Wiring

    Solder contacts

  • Bushing

    Polyacetal (POM) + PU

Material

Jump to...
  • Contact plating

    2 microm Ni (Su)

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Standard compliance

    IEC 60603-11 / EIA RS-453

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -4 to 149 Degree F (-20 to +65 Degree C)

About Neutrik NP2RX-BAG

You can ensure a seamless and reliable connection with the NP2RX-BAG 2-Pole 1/4" Professional Right Angle Phone Plug, designed to meet the rigorous demands of professional audio and video applications. This durable plug features a robust black shell paired with nickel contacts, offering both aesthetic appeal and superior signal integrity.

Crafted by Neutrik, a leader in the industry known for its high-quality connectors, this plug stands out with its professional right-angle design. This allows for optimal ease of use, particularly in tight spaces where a straight plug would be impractical, making it an essential tool for musicians, sound engineers, and AV professionals.

The NP2RX-BAG boasts the thinnest A-gauge 1/4" profile available, ensuring it fits even the most densely packed jackfields with a 15.88 mm jack pitch. The innovative Neutrik chuck type strain relief is a hallmark of the design, providing unparalleled cable retention and minimizing stress on the connection points.

Precision is key in the construction of this plug, featuring a machined one-piece tip contact that eliminates the risk of hooking up in a socket or the tip breaking off. This design choice not only enhances the plug's reliability but also ensures a consistent, high-quality connection.

Ideal for a variety of applications, from connecting guitars and audio cables to integrating with snakes, speakers, amplifiers, and mixing desks, the NP2RX-BAG is a versatile solution that upholds the integrity of your sound. Choose this sturdy and reliable right-angle phone plug to maintain professional-grade audio connections in any setting.

Neutrik NP2RX-BAG Features

  • All metal housing eliminates the plastic cover of the predecessor NPRCS and improves further durability and EMI protection
  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Key Features

  • Achieve top-notch sound quality with this professional Neutrik 1/4" phone plug.
  • Right-angle design of this audio connector saves space in tight setups.
  • Durable nickel contacts ensure a reliable, low noise connection every time.
  • Ideal for guitar cables, this phone plug offers exceptional compatibility.
  • Withstands over 1000 mating cycles, offering long-lasting durability.
  • Black shell and solder contacts provide a secure and professional audio connection.

What's in the box:

  • NP2RX-BAG 2-Pole 1/4" Professional Right Angle Phone Plug
  • Neutrik 6 Month Limited Warranty
