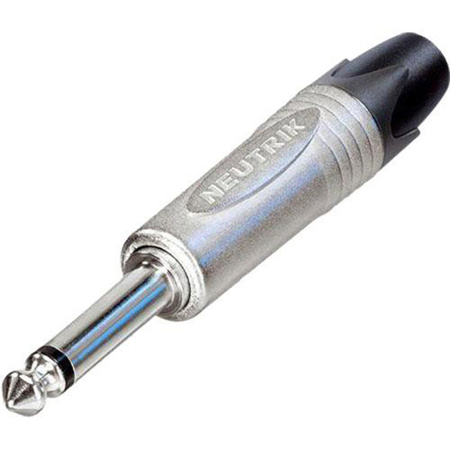

Neutrik NP2X 2-Pole 1/4" Male Professional Phone Plug, Nickel Shell, Nickel Contacts

SKU: NENP2X MFR: NP2X
$3.89
Earn VIP Reward Points

Key Features

  • Get superior sound quality with this professional Neutrik 1/4" phone plug.
  • Durable nickel contacts ensure a reliable audio connection every single time.
  • This male audio connector is perfect for custom cable builds and repairs.
  • Wide compatibility: Works great with amps, mixers, and pro audio equipment.
  • Shielded design minimizes interference, delivering pristine audio clarity.
  • Built to last: Neutrik connectors offer exceptional durability for frequent use.
See More Product Details
Special Order?Estimated to Ship: 12/19/2025
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the unique feature of the NP2X 2-Pole 1/4" Male Professional Phone Plug?

The NP2X 2-Pole 1/4" Male Professional Phone Plug features a unique Neutrik chuck type strain relief and a precision machined one-piece tip contact, ensuring a secure and reliable connection.

What materials are used in the construction of the NP2X 2-Pole 1/4" Male Professional Phone Plug?

The NP2X 2-Pole 1/4" Male Professional Phone Plug is made with a durable nickel shell and nickel contacts, which are resistant to corrosion and ensure a long lifespan.

What applications is the NP2X 2-Pole 1/4" Male Professional Phone Plug suitable for?

The NP2X 2-Pole 1/4" Male Professional Phone Plug is versatile and can be used for a variety of applications including guitars, audio cables, snakes, speakers, amplifiers, and mixing desks.

What is the width of the NP2X 2-Pole 1/4" Male Professional Phone Plug?

The NP2X 2-Pole 1/4" Male Professional Phone Plug has a slimline shell with a width of 14.5mm, designed to meet the latest requirements for high-density jackfields.

Who is the manufacturer of the NP2X 2-Pole 1/4" Male Professional Phone Plug?

The NP2X 2-Pole 1/4" Male Professional Phone Plug is manufactured by Neutrik, a reputable brand known for producing high-quality audio and video connectors.

Reviews about this item

Review Summary

Neutrik NP2X Specifications

General

General

Jump to...
  • Color

    Shell: Nickel
    Contacts: Nickel

  • Connection Type

    Plug

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    depends on mating connector m Ohm

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 2 (initial) G Ohm >= 1 G Ohm (after damp heat test)

  • Rated current per contact

    depends on mating connector A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    4 - 7 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    1 sq. mm
    18 AWG

  • Wiring

    Solder contacts

  • Bushing

    Polyacetal (POM) + PU

Material

Jump to...
  • Contact plating

    2 microm Ni (Su)

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Nickel

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Standard compliance

    IEC 60603-11 / EIA RS-453

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -4 to 149 Degree F (-20 to +65 Degree C)

About Neutrik NP2X

Why settle for less when you can have the best The NP2X 2-Pole 1/4" Male Professional Phone Plug, with its nickel shell and nickel contacts, is a testament to Neutrik's commitment to quality and durability. This high-quality phone plug is designed to meet the rigorous demands of professional audio and video equipment, musical instruments, and other applications that require a reliable, sturdy connection.

The NP2X is more than just a phone plug; it's a revolution in design. It improves upon the existing C series by offering the thinnest A-gauge 1/4" plug available on the market, complete with Neutrik's unique chuck type strain relief. This feature ensures a secure connection, reducing the risk of disconnection or damage to the cable.

The slimline shell, measuring a mere 14.5mm in width, is designed to meet the latest requirements for high-density jackfields, with a 15.88mm jack pitch. This compact design allows for maximum space efficiency without compromising on performance or quality.

One of the standout features of the NP2X is its precise, machined one-piece tip contact. This design, devoid of rivets, is unique to Neutrik and ensures a seamless connection every time. It eliminates the risk of hooking up in a socket or breaking off the tip, providing a reliable and consistent performance.

The NP2X 2-Pole 1/4" Male Professional Phone Plug is versatile and serves a wide range of applications. Whether you're connecting guitar applications, audio cables, snakes, speakers, amplifiers, or mixing desks, this plug is the reliable choice for all your professional audio and video needs.

Neutrik NP2X Features

  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Key Features

  • Get superior sound quality with this professional Neutrik 1/4" phone plug.
  • Durable nickel contacts ensure a reliable audio connection every single time.
  • This male audio connector is perfect for custom cable builds and repairs.
  • Wide compatibility: Works great with amps, mixers, and pro audio equipment.
  • Shielded design minimizes interference, delivering pristine audio clarity.
  • Built to last: Neutrik connectors offer exceptional durability for frequent use.

What's in the box:

  • NP2X 2-Pole 1/4" Male Professional Phone Plug
  • Neutrik 6 Month Limited Warranty
