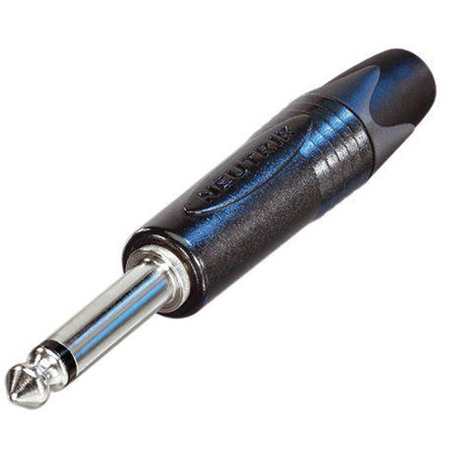

Neutrik NP2X-BAG 2-Pole 1/4" Male Professional Phone Plug, Black Shell, Nickel Contacts

SKU: NENP2XBAG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the purpose of the Neutrik chuck type strain relief?

The Neutrik chuck type strain relief is designed to enhance the durability of the plug and prevent cable damage, offering the thinnest A-gauge 1/4" plug available on the market.

What does the one-piece tip contact feature mean?

The one-piece tip contact is a design feature that eliminates the use of rivets. This ensures a more reliable connection and reduces the risk of the tip hooking up in a socket or breaking off.

What devices can I connect with the NP2X-BAG 2-Pole 1/4" Male Professional Phone Plug?

This professional phone plug is versatile and can be used to connect a range of devices to professional audio or video setups. This includes, but is not limited to, guitars, audio cables, snakes, speakers, amplifiers, and mixing desks.

What makes the NP2X-BAG 2-Pole 1/4" Male Professional Phone Plug stand out from other plugs?

This plug stands out due to its high-quality construction, unique design features like the Neutrik chuck type strain relief and one-piece tip contact, and its compatibility with a wide range of professional audio and video equipment.

Why is the black shell design important?

The black shell design is not only aesthetically pleasing but also matches well with other professional audio and video equipment, providing a uniform and professional look.

Reviews about this item

Review Summary

Neutrik NP2X-BAG Specifications

General

General

Jump to...
  • Color

    Shell: Black
    Contacts: Nickel

  • Connection Type

    Plug

  • Gender

    Male

Electrical

Jump to...
  • Contact resistance

    depends on mating connector m Ohm

  • Dielectric strength

    1 kVdc

  • Insulation resistance

    > 2 G Ohm (initial)

  • Rated current per contact

    depends on mating connector A

  • Rated voltage

    < 50 V

Mechanical

Jump to...
  • Cable O.D.

    4 - 7 mm

  • Lifetime

    > 1000 mating cycles

  • Wiresize

    1 sq. mm
    18 AWG

  • Wiring

    Solder contacts

  • Bushing

    Polyacetal (POM) + PU

Material

Jump to...
  • Contact plating

    2 microm Ni (Su)

  • Contacts

    Brass (CuZn39Pb3)

  • Insert

    Polyamide (PA 6.6 30 % GR)

  • Shell

    Zinc diecast (ZnAl4Cu1)

  • Shell plating

    Black chromium

  • Strain relief

    Polyacetal (POM)

Environmental

Jump to...
  • Standard compliance

    IEC 60603-11 / EIA RS-453

  • Solderability

    Complies with IEC 68-2-20

  • Temperature range

    -4 to 149 Degree F (-20 to +65 Degree C)

About Neutrik NP2X-BAG

Make your professional audio and video connections more reliable with the NP2X-BAG 2-Pole 1/4" Male Professional Phone Plug. This high-quality connector, featuring nickel contacts and a sleek black shell, is a product of Neutrik, a brand renowned for its superior audio and video equipment.

This sturdy phone plug is designed with a heavy-duty construction that surpasses the existing C series. It boasts the thinnest available A-gauge 1/4" plug, coupled with a unique Neutrik chuck type strain relief, making it the most resilient on the market. Its slimline shell, measuring a width of 14.5mm, complies with the latest requirements for high-density jackfields with a 15.88mm jack pitch.

The NP2X-BAG 2-Pole 1/4" Male Professional Phone Plug stands out with its precisely machined one-piece tip contact, devoid of rivets. This unique feature eliminates the risk of hooking up in a socket or breaking off the tip, ensuring a seamless connection every time.

Ideal for a wide range of applications, this professional phone plug is perfect for connecting your phone or other electronic devices to guitar applications, audio cables, snakes, speakers, amplifiers, and mixing desks. Experience the durability and reliability of the NP2X-BAG 2-Pole 1/4" Male Professional Phone Plug and elevate your audio and video setup to professional standards.

Neutrik NP2X-BAG Features

  • Extra slim 1/4" plug for highest packing density
  • Robust diecast shell in stylish design
  • Proven chuck type strain relief for reliable cable retention
  • Sleek design for best handling convenience
  • Precision machined one-piece contacts - avoid hook up of tip contact

Key Features

  • Experience superior sound quality with this professional-grade 1/4" male phone plug.
  • This durable Neutrik connector ensures reliable connections for your audio equipment.
  • Achieve optimal signal transfer with nickel contacts, enhancing your audio experience.
  • Use with cables 4-7mm; this audio connector is perfect for custom cable builds & repairs.
  • The black shell and robust design provide shielding, longevity, and a pro look.
  • Enjoy broad compatibility; this 2-pole phone plug works great with amps and instruments.

What's in the box:

  • NP2X-BAG 2-Pole 1/4" Male Professional Phone Plug
  • Neutrik 6 Month Limited Warranty
