Newcon Optik NVS 14 1x Gen 3 Autogated Night Vision Monocular, Black&White Image
Newcon Optik NVS 14-3AGBW: Picture 1 thumbnail
Newcon Optik NVS 14-3AGBW: Picture 2 thumbnail
Newcon Optik NVS 14-3AGBW: Picture 3 thumbnail
Newcon Optik NVS 14-3AGBW: Picture 4 thumbnail
Newcon Optik NVS 14-3AGBW: Picture 5 thumbnail
See all Newcon Optik items

Newcon Optik NVS 14 1x Gen 3 IIT Autogated Night Vision Monocular, Helmet/Head/Weapon Mountable, 1m Waterproof, Black&White Image

SKU: NENVS143AGBW MFR: NVS 14-3AGBW
Be the first to review this itemAsk a Question
$9,178.00
OR
$765/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience superior clarity with this Gen 3 night vision monocular for optimal viewing.
  • Achieve enhanced situational awareness with a wide 40° field of view using night vision.
  • Enjoy long-lasting performance with up to 40 hours of battery life on your night vision.
  • This rugged, waterproof night vision monocular is designed to withstand harsh conditions.
  • Mountable design: Head, helmet, or weapon-mounted night vision for hands-free operation.
  • Adjustable gain control lets you customize image brightness on your night vision device.
See More Product Details
Special Order?Estimated to Ship: 09/10/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$229.99

3 Year

$274.99

4 Year

$369.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Newcon Optik NVS 14-3AGBW Specifications

  • IIT Generation

    Gen 3

  • Photocathode Material

    Gallium Arsenide (GaAs)

  • Image Color

    Black & White

  • Photocathode Diameter

    17.5mm

  • Minimum Photocathode Sensitivity

    1800 uA/lm at 2856deg.K
    190 mA/W at 830nm

  • Luminous Gain

    40,000 - 70,000 fL/fc at 2x10-6 fc
    10,000 - 20,000 fL/fc at 2x10-4 fc

  • Auto-gating

    Yes

  • Minimum Resolution

    64 lp/mm

  • Minimum Signal to Noise

    24

  • Bright Source Protection

    Yes

  • Automatic Brightness Control

    Yes

  • Manual Gain Control

    Yes

  • Manual Gain Adjustment Range

    20 - 100%

  • Magnification

    1x

  • Field of view (1x)

    40deg.

  • Objective Focal number

    1.17

  • Objective focal length

    27.5mm

  • Focus range

    0.25m to infinity

  • Exit pupil diameter

    20mm

  • Eye relief

    25mm

  • Dioptric correction

    +/- 5

  • Power supply

    1x 3V CR-123 Lithium battery (or) 1x 1.5 V AA Alkaline or lithium battery

  • Maximum Current Consumption

    25 mA

  • Voltage

    2.8 +/- 0.8

  • Battery life

    20 hours with I/R
    40 hours without I/R

  • Modulation Transfer Function

    at 2.5 lp/mm 92%
    at 7.5 lp/mm 80%
    at 15.0 lp/mm 61%
    at 25.0 lp/mm 38%

  • Black Spots Allowed per Zone

    Spot Size: 0.012-0.015"
    Zone 1: 0, Zone 2: 0, Zone 3: 0
    Spot Size: 0.009-0.012"
    Zone 1: 0, Zone 2: 0, Zone 3: 0
    Spot Size: 0.006-0.009"
    Zone 1: 0, Zone 2: 1, Zone 3: 1
    Spot Size: 0.003-0.006"
    Zone 1: 0, Zone 2: 2, Zone 3: 2

  • Operating Temperature Range

    -50 to +55 deg.C

  • Storage temperature range

    -50 to +70 deg.C

  • MTBF

    10,000 hours

  • Waterproofing

    1 meter waterproof

  • Indicators

    IR illuminator indicator
    Low battery indicator

  • Dimensions

    118 x 48 x 69mm / 4.64 x 1.88 x 2.71"

  • Weight

    300g / 10.58oz

About Newcon Optik NVS 14-3AGBW

This Monocular utilizes advanced Gen 3 image intensifier tubes, with minimum, exportable FOM more than 1600, has a manual gain control system, built-in IR illuminator, auto shutoff mechanism and are fully MIL-SPEC.

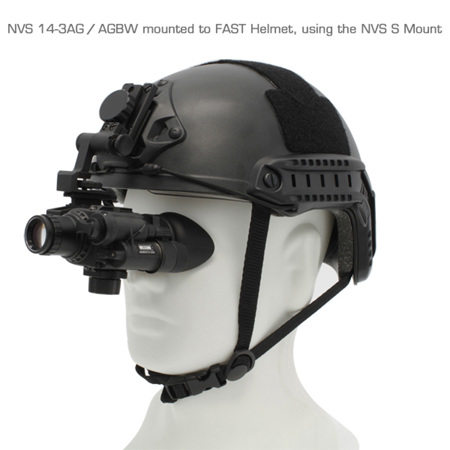

The Newcon Optik NVS 14 1x Gen 3 Autogated Night Vision Monocular is handheld as well as, weapon, head or helmet mounted.

Newcon Optik NVS 14-3AGBW Features

  • Superior optics
  • Easy to use
  • Custom NVS Bridge
  • Manual Gain Adjustment

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience superior clarity with this Gen 3 night vision monocular for optimal viewing.
  • Achieve enhanced situational awareness with a wide 40° field of view using night vision.
  • Enjoy long-lasting performance with up to 40 hours of battery life on your night vision.
  • This rugged, waterproof night vision monocular is designed to withstand harsh conditions.
  • Mountable design: Head, helmet, or weapon-mounted night vision for hands-free operation.
  • Adjustable gain control lets you customize image brightness on your night vision device.

What's in the box:

  • Newcon Optik NVS 14 1x Gen 3 IIT Autogated Night Vision Monocular
  • Head Harness
  • NVS Arm Mount
  • Objective Lens Cap
  • Operation Manual
  • Lens Cleaning Kit
  • AA Battery
  • Newcon Optik 1 Year Warranty
