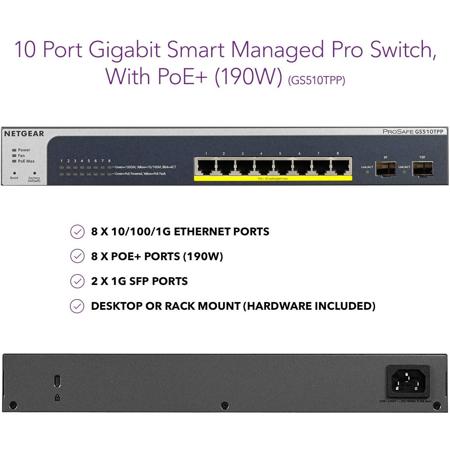

Netgear GS510TPP 8-Port Gigabit PoE+ Smart Managed Pro Switch, 2 SFP Ports, PoE+/190W

SKU: NERGS510100N MFR: GS510TPP-100NAS
Earn VIP Reward Points

Key Features

  • This Netgear switch offers 8 Gigabit ports, perfect for expanding your small business network.
  • With PoE+ support, power IP cameras and VoIP phones directly through this managed switch.
  • Enjoy enhanced network performance with 2 SFP ports for high-speed fiber optic connections.
  • Advanced managed features like VLANs and QoS optimize network traffic for critical applications.
  • This energy-efficient switch reduces power consumption, saving you money on your electricity bill.
  • Rack-mountable design makes it easy to integrate this switch into your existing network setup.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JOHN S : needed for a project

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Netgear GS510TPP Specifications

General

General

Jump to...
  • 10M/100M/1G RJ-45 copper ports

    8

  • PoE / PoE+ ports

    8 PoE+ (190W PoE budget)

  • 100M/1G SFP (fiber) ports

    2 (dedicated)

  • USB Port

    No (for config file upload/backup & firmware updates)

Performance Specification

Jump to...
  • CPU

    400 MHz Cortex-A9 Single Core, 512MB RAM 16MB SPI + 256MB NAND FLASH

  • Packet buffer memory

    1.5 MB (Dynamically shared across only used ports)

  • Forwarding modes

    Store-and-forward

  • Bandwidth

    20 Gbps

  • Priority queues

    8

  • Priority queuing

    Weighted Round Robin (WRR) and Strict Priority

  • MAC Address database size

    16K (48-bit MAC addresses)

  • Multicast groups

    512

  • Number of IPv4 static routes

    32

  • Number of IPv6 static routes

    32

  • Number of VLANs

    256

  • Number of ARP cache entries

    479 ARP / 223 NDP

  • Number of DHCP snooping bindings

    8K

  • Access Control Lists (ACLs)

    100 shared for MAC, IP and IPv6 ACLs

  • Packet forwarding rate

    14.88 (64 byte packet size) (Mpps)

  • Jumbo frame support

    Up to 9K packet size

  • Acoustic noise level

    32 dBA (ANSI-S10.12) (@ 25 Degree C)

  • Mean Time Between Failures (MTBF)

    1,509,979 hours (@ 25 Degree C)

  • 100M Copper Latency

    8.725micros ; 7.933micros ; 8.119micros (64-byte; 1518-byte; 9216-byte frames)

  • 1G Copper Latency

    3.313micros ; 3.322micros ; 3.293micros (64-byte; 1518-byte; 9216-byte frames)

  • 1G Fiber Latency

    2.402micros ; 2.405micros ; 2.372micros (64-byte; 1518-byte; 9216-byte frames)

L2 Services - VLANs

Jump to...
  • IEEE 802.1Q VLAN tagging

    Yes

  • IP-based VLANs

    Yes

  • MAC-based VLANs

    Yes

  • Auto-VoIP VLAN / Auto-Voice VLAN

    Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address

  • Auto-VoIP

    Yes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue

  • Voice VLAN

    Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED

  • Auto-Video VLAN

    Yes

  • Private VLAN

    Yes

L2 Services - Availability

Jump to...
  • Storm control

    Yes (Broadcast, multicast, unknown unicast)

  • IEEE 802.3ad - LAGs (LACP)

    Yes

  • IEEE 802.3x

    Yes (full duplex and flow control)

  • IEEE 802.1D Spanning Tree Protocol

    Yes

  • IEEE 802.1w Rapid Spanning Tree Protocol

    Yes

  • IEEE 802.1s Multi Spanning Tree Protocol

    Yes

  • Layer 2 DHCP Relay

    Yes

L2 Services - Multicast Filtering

Jump to...
  • IGMP snooping (v1, v2 and v3)

    Yes

  • MLD snooping support (v1 and v2)

    Yes

  • IGMP snooping queries

    Yes

  • Multicast VLAN Registration (MVR)

    Yes

  • Block unknown multicast

    Yes

L3 Services - DHCP

Jump to...
  • DHCP client

    Yes

  • DHCP snooping

    Yes

L3 Services - Routing

Jump to...
  • IPv4 static routing

    32

  • IPv6 static routing

    32

  • VLAN routing

    Yes

  • Host ARP table (number of entries)

    479 ARP / 223 NDP

  • ICMP Router Discovery Protocol (IRDP)

    Yes

  • Number of IP VLAN interfaces

    15 (routed VLANs)

Network Monitoring & Discovery Services

Jump to...
  • 802.1ab LLDP

    Yes

  • SNMP

    v1, v2c, v3

  • RMON group 1,2,3,9

    Yes

Network Security

Jump to...
  • IEEE 802.1x

    Yes

  • Guest VLAN

    Yes

  • RADIUS-based VLAN assignment via .1x

    Yes

  • MAC-based .1x

    Yes

  • RADIUS accounting

    Yes

  • Access Control Lists (ACLs)

    L2 / L3 / L4 ingress

  • IP-based ACLs (IPv4 and IPv6)

    Yes

  • MAC-based ACLs

    Yes

  • TCP/UPD-based ACLs

    Yes

  • MAC lockdown

    Yes

  • MAC lockdown by the number of MACs

    Yes

  • Control MAC

    Number of Dynamic learned entries: 4096
    Number of Static entries: 96

  • IEEE 802.1x RADIUS port

    Yes (access authentication)

  • Port-based security

    Yes (by locked MAC addresses)

  • Dynamic ARP inspection

    Yes

  • Storm control

    Yes (Broadcast, multicast, unknown unicast)

  • DoS attacks prevention

    Yes

Quality of Service (QOS)

Jump to...
  • Port-based rate limiting

    Yes egress

  • Port-based QoS

    Yes

  • Support for IPv6 fields

    Yes

  • DiffServ QoS

    Yes ingress

  • IEEE 802.1p COS

    Yes

  • Destination MAC and IP

    Yes

  • IPv4 and v6 DSCP

    Yes

  • IPv4 and IPv6 ToS

    Yes

  • TCP/UDP-based

    Yes

  • Weighted Round Robin (WRR)

    Yes

  • Strict priority queue technology

    Yes

  • Auto-VoIP VLAN / Auto-Voice VLAN

    Yes, based on OUI bytes (default database and user-based OUIs) in the phone source MAC address

  • Auto-VoIP

    Yes, based on protocols (SIP, H.323 and SCCP). Prioritzes traffic to a higher queue

  • Voice VLAN

    Yes, based on either VLAN ID or 802.1p priority, packets are passed onto the connecting VoIP phone using LLDP-MED

  • Auto-Video VLAN

    Yes

IEEE Network Protocols

Jump to...
  • Network Protocols

    IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-T
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3af PoE
    IEEE 802.3at PoE+
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    IEEE 802.3ad Trunking (LACP)
    IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.1Q VLAN Tagging
    IEEE 802.1AB LLDP with ANSI/TIA-1057 (LLDP-MED)
    IEEE 802.1p Class of Service
    IEEE 802.1D Spanning Tree (STP)

  • Network Protocols (Contd.)

    IEEE 802.1s Multiple Spanning Tree (MSTP)
    IEEE 802.1w Rapid Spanning Tree (RSTP)
    IEEE 802.1x RADIUS Network Access Control

Management

Jump to...
  • Password management

    Yes

  • Configurable management VLAN

    Yes

  • Admin access control

    Yes (via RADIUS and TACACS+)

  • IPv6 management

    Yes

  • SNTP client over UDP port 123

    Yes

  • SNMP v1/v2c

    Yes

  • SNMP v3 with multiple IP addresses

    Yes

  • RMON group 1,2,3,9

    Yes

  • Port mirroring

    Yes

  • Many-to-one port mirroring

    4

  • Web browser-based

    Yes (English, German and Japanese supported) (graphical user interface (GUI))

  • Smart Control Center (SCC)

    Yes (for multi-switch management)

  • Dual software (firmware) image

    Yes

  • Dual configuration file

    Yes

  • Cable test utility

    Yes

  • SSL/HTTPS Web-based access

    Yes (v3) (version)

  • TLS Web-based access

    Yes (v1.0) (version)

  • File transfers

    TFTP / HTTP (uploads, downloads)

  • HTTP upload/download (firmware)

    Yes

  • Syslog (RFC 3164)

    Yes

  • USB Port

    No (for firmware and config upload / download)

  • Per port

    Speed, Link, Activity

  • Per device

    Power and Fan

Power Consumption

Jump to...
  • Max power

    225 W (worst case, all ports used, full PoE, line-rate traffic) (Watts)

  • Max power without PoE

    12.5 W (worst case, all ports used, line-rate traffic) (Watts)

  • Heat Dissipation

    768.15 BTU/hr (worst case, all ports used, full PoE, line-rate traffic) (BTU/hr)

  • Energy Efficient Ethernet IEEE 802.3az

    Yes (deactivated by default)

  • Fan

    1

Environmental Specifications

Jump to...
  • Operating

    Temperature: 32 Degree to 122 Degree F (0 Degree to 50 Degree C)
    Humidity (relative): 90% maximum relative humidity (RH), non-condensing
    Altitude: 10,000ft (3,000m) maximum

  • Storage

    Temperature: - 4 Degree to 158 Degree F (-20 Degree to 70 Degree C)
    Humidity (relative): 95% maximum relative humidity, non-condensing
    Altitude: 10,000ft (3,000m) maximum

Electromagnetic Emissions and Immunity

Jump to...
  • Certifications

    CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010
    VCCI : VCCI-CISPR 32:2016, Class A
    RCM: AS/NZS CISPR 32:2013 Class A
    CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
    FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
    ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
    BSMI: CNS 13438 Class A

  • Certifications

    CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
    UL listed (UL 1950)/cUL IEC 950/EN 60950
    CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
    RCM (AS/NZS) 60950.1:2015
    CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
    BSMI: CNS 14336-1

Physical Specifications

Jump to...
  • Dimensions (W x D x H)

    12.9 x 6.7 x 1.7" (328 x 169 x 43mm)

  • Weight

    4.03 lbs (1.83kg)

  • UPC Code

    606449119039

About Netgear GS510TPP

After extensive research and development, NETGEAR presents the GS510TPP 8-Port Gigabit PoE+ Smart Managed Pro Switch. This powerful and flexible device is designed to meet the diverse needs of small and medium-sized businesses across various sectors such as hospitality, education, retail, and catering.

The GS510TPP is more than just a switch. It's a smart device that offers remote management and configuration, providing you with greater control over your network. With 8 Gigabit Ethernet ports, it supports high-speed data transfer and can handle multiple devices without compromising network speed. Additionally, it features 2 SFP ports for fiber connectivity, catering to longer distance and higher bandwidth requirements.

This Smart Managed Pro Switch boasts a 190W PoE budget, offering more headroom for your power needs. It's designed with temperature and load-based fan-speed control, ensuring accurate monitoring while minimizing system noise. This makes it suitable for both quiet desktop operation and rack mounting.

The GS510TPP supports advanced features such as IPv4/IPv6 Layer 3 static routing, DiffServ QoS, LACP link aggregation, and Spanning Tree. These features cater to the most advanced small business networks, ensuring smooth operation and efficient data flow.

This device also offers advanced per port PoE controls for remote power management of PoE connected devices, including operation scheduling. This is particularly useful for managing devices like wireless APs, IP security cameras, LED lighting, secure access door locks, and IoT devices.

With comprehensive IPv6 support for management, QoS, ACL, and routing, the GS510TPP ensures investment protection and a smooth transition to an IPv6-based network. It also features robust security features, including 802.1x authentication (EAP), port-based security by locked MAC, and ACL filtering to permit or deny traffic based on MAC and IP addresses.

The GS510TPP is not just about power and performance, but also about convenience. It features an easy-to-use web browser-based management GUI with English, German, and Japanese support, making setup and management a breeze.

In conclusion, the GS510TPP 8-Port Gigabit PoE+ Smart Managed Pro Switch is a future-proof solution that offers solid performance, advanced features, and easy management. It's the smart choice for businesses looking to build a reliable, efficient, and secure network.

Netgear GS510TPP Features

  • Smart Managed Pro Switch with 8 Gigabit Ethernet ports for high-speed data transfer
  • 2 SFP ports for fiber connectivity, catering to longer distance and higher bandwidth requirements
  • 190W PoE budget, offering more headroom for power needs
  • Advanced features such as IPv4/IPv6 Layer 3 static routing, DiffServ QoS, LACP link aggregation, and Spanning Tree
  • Comprehensive IPv6 support for management, QoS, ACL, and routing, ensuring a smooth transition to an IPv6-based network
  • Easy-to-use web browser-based management GUI with multilingual support for simplified setup and management

Key Features

  • This Netgear switch offers 8 Gigabit ports, perfect for expanding your small business network.
  • With PoE+ support, power IP cameras and VoIP phones directly through this managed switch.
  • Enjoy enhanced network performance with 2 SFP ports for high-speed fiber optic connections.
  • Advanced managed features like VLANs and QoS optimize network traffic for critical applications.
  • This energy-efficient switch reduces power consumption, saving you money on your electricity bill.
  • Rack-mountable design makes it easy to integrate this switch into your existing network setup.

What's in the box:

  • GS510TPP 8-Port Gigabit Smart Managed Pro Switch
  • Power Cord
  • Rack-Mounting Kit
  • Rubber Footpads
  • Quick Install Guide
  • Netgear Lifetime Limited Warranty
