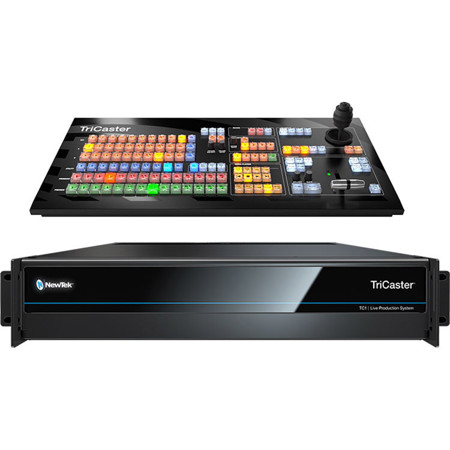

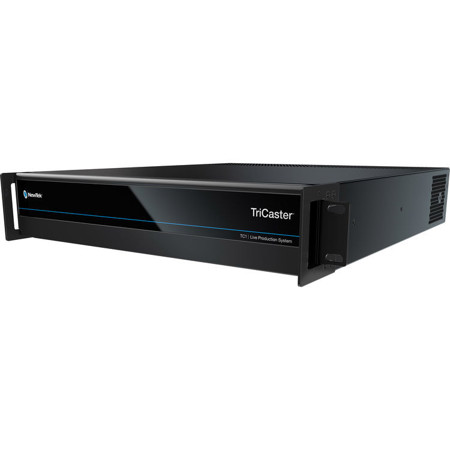

NewTek TriCaster TC1 Video Switcher and TC1SP Small Control Panel Kit

SKU: NETC1BBDL

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

NewTek TriCaster TC1 + TC1SP Specifications

  • Video Switcher: Video Input

    16x simultaneous external video inputs, supporting any combination of compatible sources in resolutions up to 4K UHD at frame rates up to 60fps (2160p 59.94)

  • Video Switcher: Network Video Input

    16x IP video inputs via NDI, resolution-independent, with support for key and fill

  • Video Switcher: SDI Video Input

    4x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates
    1080p: 59.94, 50, 29.97, 25, 24, 23.976
    1080i: 59.94, 50
    720p: 59.94, 50, 29.97, 25, 24, 23.976
    576i 50
    480i 59.94

  • Video Switcher: PTZ

    Support for up to 8 simultaneous Pan-Tilt-Zoom (PTZ) robotic cameras via serial and network protocols, including RS232, RS422 and IP, with integrated controls and preset system

  • Video Switcher: Skype TX

    Native support for up to 2 simultaneous Skype video call inputs via Skype TX software integration

  • Video Switcher: Video Output

    Configurable for up to 4 independent video mix outputs, with simultaneous delivery via IP and SDI

  • Video Switcher: Network Video Output

    IP video output via NDI, optionally configurable for:
    4x independent video mix outputs
    1x 4K UHD video mix output

  • Video Switcher: SDI Video Output

    4x 3G/HD/SD-SDI connections, optionally configurable for:
    4x independent 3G/HD/SD video mix outputs
    1x 4K UHD video mix output via 3G-SDI quad-link grouping

  • Video Switcher: Stream Output

    2x resolution-independent streaming video outputs, independently configurable, with simultaneous stream archive

  • Video Switcher: Multiviewer Output

    3x multiviewer outputs supporting standard display resolutions:
    1x DVI user interface with multiviewer
    1x HDMI multiviewer
    1x DisplayPort multiviewer

  • Video Switcher: Mix/Effect Buses (M/E)

    4x M/E buses supporting video re-entry
    1x Mix/Effect channel per bus with support for up to 4 sources
    4x KEY layers per bus
    9 x memory slots per bus
    1x PREVIZ configuration and preview bus

  • Video Switcher: DSK Channels

    4x DSK channels

  • Video Switcher: Media

    5x media players: 2x DDR, 2x GFX, 1x Sound
    15x media buffers: 10 x animation buffers, 5x graphic buffers
    30 x clip players (available for use as transitions or media depending on function)

  • Video Switcher: Keyers

    Integrated LiveMatte chroma and luma keying technology on all source channels and M/E buses
    16x input keyers
    4x media player keyers
    4x M/E keyers
    1x PREVIZ keyer
    15x buffer keyers

  • Video Switcher: COMPs

    Integrated video composition engine on the switcher and each M/E bus to create, store, and apply layer configurations and DVE-style motion sequences
    16x configurable COMP presets per bus

  • Video Switcher: Virtual Sets

    Integrated LiveSet technology with 30+ live virtual sets and box effects included

  • Video Switcher: DataLink

    Integrated DataLink technology enabling real-time, automated data input from internal and external sources, including webpages, spreadsheets, scoreboards, databases, RSS feeds, watch files, XML, CSV, ASCII and more

  • Video Switcher: Macros

    Record, store, edit and automate commands and user-configured operation sequences
    Attach to control panel buttons, keyboard shortcuts, hotspots, MIDI and X-keys buttons or GPI triggers
    Attach to internal events and state changes, including audio, media playback, tally and specific switcher actions
    Supports control via web-based interface

  • Video Switcher: Recording

    6x configurable video recording channels via IsoCorder technology
    4x QuickTime archival video recorders (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)3
    2x H.264 distribution video recorders (multiple profiles)
    1x MP3 audio recorder

  • Video Switcher: Storage

    2x 3TB internal drive
    Capacity varies by format, resolution and file specification
    Supports recording to external storage via USB 3.0 and eSATA
    Supports shared storage integration and third-party partner solutions

  • Video Switcher: Grab

    Grab full-resolution, deinterlaced still images from external video sources and outputs

  • Video Switcher: Export

    Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding

  • Video Switcher: Audio Mixer

    Integrated multi-channel audio mixer with support for quad-channel audio, DSPs and 4x4x4 audio input routing

  • Video Switcher: Local Audio Input

    4x SDI embedded
    1x Balanced XLR stereo pair (Line)
    3x Balanced 1/4" stereo pairs (Line)

  • Video Switcher: Local Audio Output

    4x SDI embedded
    1x Balanced XLR stereo pair
    1x Balanced 1/4" stereo pair
    1x Stereo 1/4" (phones)

  • Video Switcher: Network Audio

    Native support for network audio input and output via NDI
    Embedded audio supported for all NDI input and output video signals
    Integrated support4 for Dante networking protocol from Audinate
    Support for AES67 protocol via compatible WDM audio drivers5

  • Video Switcher: Supported File Formats

    Import, store, and play back multimedia files, with optional transcoding, including:
    Video: AVI, DV, DVCPro, DVCProHD, FLV, F4V, H.263, H.264, MOV, MKV, MJPEG, MPEG, MP4, WMV, WebM, and more
    Image: PSD, PNG, TGA, BMP, JPEG, JPEG-XR, JPEG2000, EXR, RAW, TIF, WebP, and more
    Audio: AIFF, MP3, WAV, and more

  • Video Switcher: Monitoring

    Support for up to 3 multiviewer displays with configurable workspaces and viewports

  • Video Switcher: Signal Monitoring

    Integrated waveform and vectorscope, full field rate with digital calibration, color preview and support for ITU-R Rec. 709

  • Video Switcher: Processing

    Video: Floating Point YCbCr +A 4:4:4:4
    Audio: Floating Point, 96 kHz

  • Video Switcher: Throughput Latency

    (Approx.) 1.0-1.5 frames

  • Video Switcher: A/V Standards

    4K UHD video conforms to SMPTE 2036 (UHDTV1 using Square Division Quad Split)
    3G-SDI video conforms to SMPTE 424M (Level A)
    HD-SDI video conforms to SMPTE 292M
    SD video conforms to SMPTE 259M and ITU-R BT.656
    Analog audio levels conform to SMPTE RP-155

  • Video Switcher: Tally

    Support for hardware tally via HD15 GPI connector, network tally via NDI, and Blackmagic Design SDI tally standard

  • Video Switcher: Genlock

    Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals

  • Video Switcher: GPI

    Supports GPI signals via JLCooper Electronics eBox GPI interface

  • Video Switcher: MIDI

    Support for standard MIDI protocol enabling third-party device control

  • Video Switcher: System Drive

    120GB SSD

  • Video Switcher: NIC

    2 x 1 Gigabit NIC

  • Video Switcher: Rackmount

    2RU

  • Control Panel: Stripes

    2x panel stripes

  • Control Panel: Source Buttons

    24 x switcher source buttons
    24 x M/E source buttons

  • Control Panel: Joystick

    1 x multi-mode joystick (3-axis)

  • Control Panel: T-Bar

    2 x multi-mode T-Bars

  • Control Panel: Connectivity

    1 Gigabit NIC

  • Dimensions

    TriCaster TC1LP chassis with 25W PSU: 34.1 x 3.2 x 13.8" (866.14 x 81.28 x 350.52mm)
    TriCaster TC1: 19.0 x 3.5 x 19.57" (48.26 x 8.89 x 49.71cm) with rack ears attached (2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe)

About NewTek TriCaster TC1 + TC1SP

Complete Production. Like Never Before
The most complete production system available today, TriCaster TC1 represents the continued innovation of the iconic product that defined an industry. Designed with the way you work in mind and equipped with hundreds of advanced production capabilities, it has everything you need to do video your way today-and tomorrow.

• Switching, streaming, recording in HD, 3G and 4K UHD 60p
• Native software driven processing for maximum production power and flexibility
• Comprehensive camera coverage and compelling multi-source video mixing, including 16 external inputs and 4 M/Es
• Studio-grade Skype video calling with multi-channel Skype TX software integration
• Integrated video servers allowing playback, replay and live editing without any additional hardware
• Multi-channel ISO recording to full-resolution QuickTime and H.264 files for VOD, post-production and archive
• Dual-channel live streaming to Facebook Live, MicrosoftAzure, Periscope, Twitch, YouTube Live and more
• Real-time social media sharing to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube and more
• Powerful production automation with custom macro commands, sophisticated full-motion compositing and flexible control options
• Advanced audio mixing with multi-source configuration and control, professional DSPs and 4 x 4 x 4 channel routing
• Premier creative capabilities, including multi-bus mix effects, animated titles and transitions, advanced chromakeying, spectacular live virtual sets and more

Feel Invincible
When you're confident in what you're doing, it shows. With TriCaster TC1, you have the proven workflows you know and the future-proof production you covet. The bottom line is being able to do production the way you need to right now and the way you want to when you are ready.

Real 4K Ultra HD. No Compromise
Present your audience with an immersive viewing experience defined by amazing clarity and incredible detail. Produce programs, performances, events and live sports in true 4K UHD (Ultra High Definition) resolution with support for native 2160p video at 60 frames per second. Unlike other products that promise 4K UHD, only TriCaster TC1 allows you to switch, stream and record 4K UHD video without compromising the frame rate or the number of available inputs.

Built-In Video Servers
No decks needed-just add your files with two built-in video servers for on-demand and automated playback, including auto-advancing playlists, on-cue instant replay, live-edited highlight reels and much more. With responsive player controls, presets, real-time editing tools, selectable transitions and playlist effects, you have everything needed to make magic from your stored media.

Multi-Source Video Mixing
Viewers have their choice of devices. You should have options, too. With 36 source channels, including 16 external inputs, you can easily create compelling content using any combination of compatible video sources, including 3G-SDI, HD-SDI and PTZ cameras, mobile devices, Skype TX video calls, computers, gaming systems, streaming media, video files, graphics, images, animations and more.

Multi-Channel Skype
Conduct a live Skype video call with any remote guest, anywhere in the world. TriCaster TC1 is the only video production system to feature direct Skype TX software integration. The studio-grade version of the popular app, Skype TX enhances the real-time interaction with broadcast-quality video and balanced audio, allowing you to present production-ready conversations, interviews, reports and more-regardless of the caller's device.

Recording and Replay
Capture all the angles, record multiple channels of full-resolution video to QuickTime or H.264 files. From archiving the master cut for your content library, to ingesting the raw camera footage for post-production, to caching production extras and presentation materials for on-demand-even capturing real-time highlights for instant replay-TriCaster TC1 easily handles the work of multiple professional decks without the added expense.

Dual-Channel Live Streaming
Stream live to your choice of new media platforms, including user-friendly presets for Facebook Live, Microsoft Azure, Periscope, Twitch, YouTubeLive and more. With two streaming encoders included, you can easily deliver platform-specific content, while opening up new sponsorship and revenue opportunities.

Social Media Integration
Share real-time updates and on-demand content across your social media accounts, uploading images and video directly to Facebook, Imgur, LinkedIn, Twitter, Vimeo, YouTube and more-complete with comments and hashtags. Plus, with integrated DataLink, you can add posts and photos from your social networks in on-screen graphics for a truly interactive experience.

Premium Performance. Choice Control
With precision software-based control, your choice of two companion control panels and optional Web-based interface, TriCaster TC1 is designed to suit the operator and environment for any production.

Live Sound Experience
Set the tone for your production with comprehensive audio integration, including a software-based audio mixer, support for digital, analog and network audio, professional DSPs, fader control, VU metering, Talk Back communication and 4 x 4 x 4 channel routing to four audio mix outputs.

Control in the Palm of Your Hand
NewTek LivePanel for TriCaster TC1, makes it easier for more people to have control of the live production process. Providing the ability to configure a custom user interface that delivers exactly the tools and functions you need, accessible through any Web browser or operating system.

Next-Level Automation
Experience new levels of efficiency and productivity with a comprehensive macro automation system that allows you to record, store, edit and automate your favorite settings and custom command sequences. You can even choose to run macros manually from any combination of compatible control interfaces-or set TriCaster TC1 to perform actions automatically.

Phenomenal Creative Elements
With TriCaster TC1, you have the tools to turn every frame of video into an artistic masterpiece. Consider the screen a blank canvas and unleash your inner artist with multi-bus mix effects, zero-latency video re-entry, real-time animated titles, data-driven graphics, custom animated transitions, a full-motion composition engine and more. Let your imagination run wild.

Real-Time Monitoring and Multiviewers
See everything happening during your production with fully adjustable single-screen or multi-screen monitoring. With three customizable multiviewers, configurable windows and workspace layouts, operator confidence monitors, visual indicators, scopes and more, you can easily personalize the TriCaster TC1 environment to your preference.

Studio-Grade Video Tools
Perfect your presentation with configurable color correction tools, 3D object positioning and smooth-edge cropping. Apply picture-in-picture effects with optional borders. Use key and fill to produce new composite scenes from different foreground and background elements. Even map live video to moving props and set pieces with real-time motion tracking. And so much more.

Spectacular Live Chromakeying
Think outside the box with real-time keying so crisp and clean, your viewers will never believe it's green screen. With NewTek's powerful LiveMatte technology built into every source channel and M/E, you have 40 fully configurable keyers to create composite scenes from live video, graphics and virtual sets for reports, presentations, demonstrations and more.

World-Class Live Virtual Sets
Save on studio and set expenses without sacrificing production value. With integrated LiveSet technology, TriCaster TC1 can transport your talent into professionally-designed virtual environments, complete with multiple angles, virtual camera movements, real-time reflections, specular highlights, animated lens flares and stunning augmented reality effects that blur the line between virtual and reality. Select from more than 30 included virtual sets, purchase your choice of premium ready-made sets, or create endless custom environments with the optional Virtual Set Editor software (sold separately).

Your Workflow. Interconnected
You don't work in a silo. Neither should your equipment. With native integration of NDI, NewTek's innovative Network Device Interface technology, TriCaster TC1 connects to the most prolific IP-based workflow in the industry right out of the box, networking seamlessly with compatible products from hundreds of manufacturers and developers.

Push Your Limits
Design the multi-source, multi-system and multi-site productions you've always wanted. When you combine NewTek Connect solutions with TriCaster TC1, you can capitalize on even more opportunities-connecting technologies, linking locations and introducing additional capabilities to customize your entire workflow to your needs.

Professional Services
From systems and workflow engineering, to operator training and technical support, NewTek's industry expertise will help ensure your success from design to installation to production. With NewTek Professional Services optimizing your purchase, you can invest in TriCaster TC1 with confidence.

TC1SP Small Control Panel
The TriCaster TC1LP and TC1SP control panels are expertly engineered to combine the comprehensive functionality, precision controls, premium hardware mechanics and ergonomic design that operators need, with modern styling that appe

What's in the box:

  • NewTek TriCaster TC1 Video Switcher
  • TC1SP Small Control Panel Kit
  • Power Cord
  • NewTek 1 Year Limited Warranty
