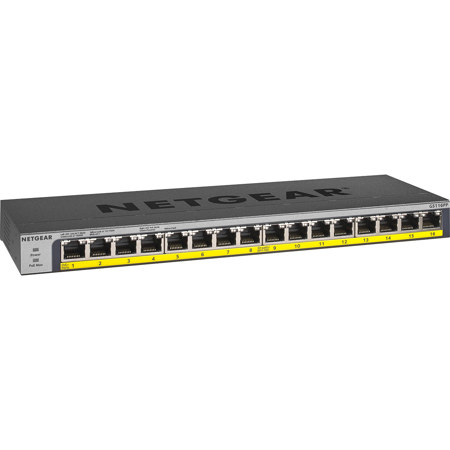

Netgear GS116PP 16-Port 183W PoE+ Gigabit Ethernet Unmanaged Switch

SKU: NEGS116PP100 MFR: GS116PP-100NAS
Earn VIP Reward Points

Key Features

  • Experience seamless data flow with 16 Gigabit Ethernet ports, perfect for high-speed network devices.
  • Power your PoE+ devices effortlessly with a robust 183W budget, simplifying your network setup.
  • Enjoy quiet operation with this fanless unmanaged switch, ideal for any office or home environment.
  • Easily expand your network with plug-and-play simplicity, no complex configuration needed.
  • Benefit from Netgear's trusted reliability, ensuring stable and consistent network performance.
  • Mount it your way: versatile desktop, rackmount, or wall-mount options fit any space.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear GS116PP Specifications

General

General

Jump to...
  • Gigabit Ethernet RJ-45 Copper ports

    16x (10M/100M/1G) - 1000BASE-T

  • PoE/PoE+ ports

    16x PoE+ (183W PoE budget)

  • Enclosure

    Metal

  • Connector Type

    Metal

  • Form Factor Desktop

    Desktop, Rackmount, Wall-Mount

  • Acoustic noise (ANSI-S10.12)

    0 (fanless)

  • Mean Time Between Failures (MTBF)

    2,362,192 hours

  • Jumbo frame support

    Yes

  • Max MAC entries

    4K

  • Buffer Size

    1MB

  • Forwarding modes

    Store-and-forward

  • Bandwidth

    32Gbps

  • Country of Origin

    Vietnam

PoE Configuration

Jump to...
  • 802.3af

    Ports 1-16

  • 802.3at

    Ports 1-16

  • PoE Max Power Per Port

    Up to 15.4W for 802.3af and 30W for 802.3at

  • Total PoE Power Budget

    183W

  • Gigabit Ports

    16x

Power Consumption

Jump to...
  • Power Supply

    External: Input 54V/3.7A

  • Max power

    200W (worst case, all ports used, line-rate traffic)
    2.68W (link-down standby)

  • Heat Dissipation (BTU/hr)

    Max: 680.58 BTU
    Min: 9.14 BTU

  • Energy Efficient Ethernet (EEE)

    Yes (IEEE 802.3az)

  • Auto power-down

    Yes

Quality of Service (QOS)

Jump to...
  • DSCP

    Yes

  • IEEE 802.1p COS

    Yes

  • Queue WRR Ratio

    1:3:5:7:8:10:12:15 Weighted Fair Queue (WFQ)

  • Per port

    Speed, Link, Activity, PoE

  • Per device

    Power Status, PoE Max

  • IEEE Network Protocols

    IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-TX
    IEEE 802.3ab 1000BASE-T
    IEEE 802.1p Class of Service
    IEEE 802.3az Energy Efficient Ethernet (EEE)
    IEEE 802.3i 10BASE-T Ethernet
    IEEE 802.3x Flow Control

Environmental

Jump to...
  • Temperature

    Operating: 32 to 104 Degree F (0 to 40 Degree C)
    Storage: - 4 to 158 Degree F (-20 to 70 Degree C)

  • Humidity

    Operating: 90% maximum relative humidity (RH), non-condensing
    Storage: 95% maximum relative humidity (RH), non-condensing

  • Altitude

    Operating: 10,000' (3,000m) maximum
    Storage: 10,000' (3,000m) maximum

Emissions & Certifications

Jump to...
  • Certifications

    Commercial Class A for FCC part 15, CAN ICES, CE, RCM, KC, VCCI

  • Safety

    CB, CE LVD, CSA, RCM, BSMI

Physical

Jump to...
  • Dimensions (W x D x H)

    11.26 x 4.02 x 1.06" (286 x 102 x 27mm)

  • Weight

    1.94 lbs (880g)

  • UPC Code

    606449133318

About Netgear GS116PP

16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules).

Plug & play
Simple setup with no software or configuration needed.

Power-over-ethernet
16 PoE+ ports with 183W total power budget, and includes NETGEAR FlexPoE allowing to reduce the power budget to 155W or even 76W (w/separately purchased power supply modules).

Flexible mounting
Mount on rack, desktop, or wall.

Small size, metal case, and silent operation
Durable quality, space saver, and quietness for peace of mind.

Sturdy metal case, desktop/rackmount form factor with quiet fans
Can be placed on desk or on mounted rack and will operate quietly with assured durability.

PoE+
• Power-Over-Ethernet (PoE) and PoE+ options available for powering IP Security Cameras, VoIP phones, wireless access points, and other PoE-powered devices
• These PoE+ Switches are not just flexible in terms of placement they are also flexible in terms of PoE power
• Built-in PoE power selector switch that allow for optional / interchangeable power adapters (sold separately) that can be used to increase (or decrease) the PoE power available on the switch
• The flexible mounting system gives you the flexibility to place them in a desktop environment, wall mount them, or even rack-mount (accessories included)

Netgear GS116PP Features

  • Choice of Fast Ethernet and Gigabit Ethernet connectivity
  • Energy-efficient technology for power savings
  • PoE power auto-balance - the switch automatically balances the PoE power based on the device needs independent of PoE class detected, at a very granular level
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Non-blocking switching architecture for maximum throughput at wire speed
  • Auto-negotiation for automatic connection at the highest common speed between switch and an end device
  • Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
  • Desktop or rackmount able

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience seamless data flow with 16 Gigabit Ethernet ports, perfect for high-speed network devices.
  • Power your PoE+ devices effortlessly with a robust 183W budget, simplifying your network setup.
  • Enjoy quiet operation with this fanless unmanaged switch, ideal for any office or home environment.
  • Easily expand your network with plug-and-play simplicity, no complex configuration needed.
  • Benefit from Netgear's trusted reliability, ensuring stable and consistent network performance.
  • Mount it your way: versatile desktop, rackmount, or wall-mount options fit any space.

What's in the box:

  • Netgear GS116PP 16-Port 183W PoE+ Gigabit Ethernet Unmanaged Switch
  • Power Adapter
  • Rack-Mount Hardware
  • Mounting Hardware
  • User Manual
  • Netgear Lifetime Limited Warranty
