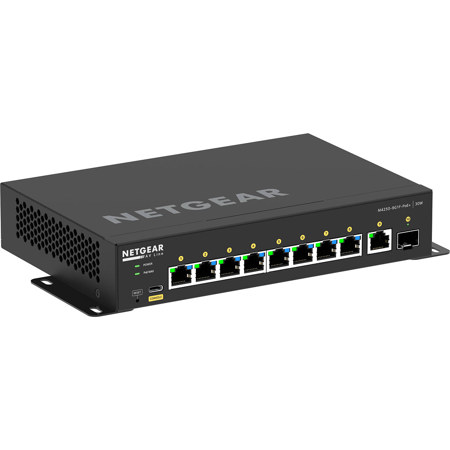

Netgear AV Line M4250-9G1F-POE+ 8-Port 110W PoE+ GbE Managed Network Switch
See all Netgear items
New Arrival

Netgear AV Line M4250-9G1F-POE+ 8-Port 110W PoE+ Gigabit Ethernet Managed Network Switch with 1x SFP Port

SKU: NEGSM4210PD1 MFR: GSM4210PD-100NAS
Be the first to review this itemAsk a Question
$659.99
$864.81
Save: $204.82 (24%)
OR
$110/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Experience seamless data flow with 8 Gigabit Ethernet ports, perfect for high-bandwidth devices.
  • Power your IP cameras and access points effortlessly using the 110W PoE+ support.
  • Manage your network with ease using this Managed Network Switch, ideal for complex setups.
  • Enjoy silent operation thanks to the fanless design, perfect for quiet office environments.
  • Connect fiber optic devices with the integrated SFP port for extended network reach.
  • Ensure reliable performance and expandability with this robust Netgear network switch.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear M4250-9G1F-POE+ Specifications

General

General

Jump to...

  • Gigabit and 10 Gigabit Ethernet Ports

    Auto-sensing RJ45 PoE 10/100/1000BASE-T: 8x ports PoE+ (110W)
    Auto-sensing RJ45 10/100/1000BASE-T: 1x
    Auto-sensing SFP 1000BASE-X: 1x

  • Total Usable Port Count

    1G Ports: 10x

  • Management Ports

    Console ports: USB-C (front)
    Service port (Out-of-band Ethernet): 1x RJ45 10/100/1000BASE-T (rear)
    Storage port: 1x USB-A (rear)

  • Fixed Power Supplies

    1 external power adapter with C14 inlet for standard AC power cord (C13)

  • Fixed fans

    Fanless

  • Power over Ethernet

    PSE Capacity:
    PoE+ Ports (802.3at): 8x

  • PoE Budget

    PoE Budget @ 110V AC in 110 Watts

  • Power Consumption

    Max PoE load, line-rate traffic, maximum: 132.25W - 451.5 BTU/hr
    No PoE, line-rate traffic, maximum: 9.88W - 33.73 BTU/hr
    Standby, no connection on any port: 6.4W - 22.02 BTU/hr

  • Country of Origin

    Thailand

Hardware

Jump to...

  • Form-Factor

    Desktop

  • Switching Fabric

    20 Gbps

Rear (Reversible)

Jump to...

  • 10/100/1000 BASE-T RJ45 ports

    8x ports PoE+ (110W), 1 additional port

  • 1000BASE-X SFP ports

    1x port SFP 1G

  • PSU

    1x External Power Adapter (130W)

LEDs

Jump to...

  • Status Information

    In Front: Power LED, PoE Max LED
    Fan LED (GSM4210PX only)

Management

Jump to...

  • Out-of-band Console

    Ethernet:
    1G Out-of-band (Rear)
    Console: USB-C (Front)
    Storage: USB-A (Rear)

Fan off Mode Setting/maximum loading

Jump to...

  • Fanless State

    The switch is fanless

  • Ambient

    77 Degree F (25 Degree C)

  • Sensor

    122 Degree F (50 Degree C)

  • PoE Power Load

    110W

  • Conditions

    All ports can be used

Software

Jump to...

  • Management

    Out-of-band
    IT Web GUI (main)
    HTTPs CLI; Telnet; SSH
    SNMP, MIBs RSPAN
    Radius Users, TACACS+

  • AV Dedicated UI

    AV web-based GUI
    Designed for AV installers
    AV-related controls
    Audio over IP profiles
    AVB profile
    Video over IP profiles
    Mixed Audio and Video profiles

  • IPv4 / IPv6 ACL and QoS, DiffServ

    Ingress/egress
    1 Kbps shaping Time-based
    Single Rate Policing

  • IPv4 / IPv6 Multicast Filtering

    NETGEAR IGMP Plus for automated IGMP between switches
    IGMPv3 MLDv2 Snooping, Proxy ASM & SSM
    IGMPv1,v2 Querier (compatible v3)
    Control Packet Flooding

  • IPv4 / IPv6 Policing and Convergence

    Auto-VoIP
    Policy-based routing (PBR)
    LLDP-MED
    IEEE 1588 PTPv2 1-Step End-to-End Transparent Clock
    AVB: 802.1AS, 802.1Qav, 802.1Qat MSRP, 802.1ak MMRP 802.1ak MVRP

  • Spanning Tree Green Ethernet

    STP, MTP, RSTP
    PV(R)STP
    BPDU/STRG Root Guard
    EEE 802.3az (EEE is disabled by default)

  • VLANs

    Static, Dynamic, Voice, MAC
    GVRP/GMRP
    Double VLAN mode
    Private VLANs

  • Trunking Port Channel

    Auto-Trunk and Auto-LAG between M4250 Switches
    Static LAG, or Dynamic LACP
    (LACP automatically reverts to and from Static LAG)
    Seven (7) L2/L3/L4 hashing algorithms

  • IPv4 / IPv6 Authentication Security

    Successive Tiering (DOT1X; MAB; Captive Portal)
    DHCP Snooping Dynamic ARP Inspection IP Source Guard

  • IPv4 / IPv6 Static Routing

    Port, Subnet, VLAN routing
    Multicast static routes
    DHCPv4 Server
    DHCP Relay
    Stateful DHCPv6 Server

  • IPv4 / IPv6 Dynamic Routing

    IPv4: RIP
    IPv4/IPv6: PIM-SM, PIM-DM, SSM

Performance

Jump to...

  • MAC ARP/NDP

    16K MAC 4K ARP/NDP

  • Routing/Switching Capacity

    20 Gbps Line-Rate

  • Throughput 64-byte

    14.88 Mpps

  • Application Route Scaling

    Static: 894v4/126v6
    RIP: 32v4

  • Packet Buffer

    16Mb

  • Latency

    <2.27micros 1G

  • CPU

    ARM A9 1.25Ghz 32-Bit 2GB RAM

  • IP Multicast Routing Entries

    512 IPv4, 128 IPv6

  • Jumbo Frames

    Up to 12K

  • Multicast IGMP Group membership

    2K IPv4, 2K IPv6

  • VLANs

    4K VLANs

  • DHCP

    DHCP Server: 2K leases, IPv4: 256 pools, IPv6: 16 pools

  • sFlow

    16 samplers, 16 pollers, 8 receivers

Acoustic noise

Jump to...

  • Fan Off mode @ 25 Degree C ambient

    Maximum Conditions:
    PoE Power Load: 110W (fanless)
    Internal Sensors: 50 Degree C
    Case Temperature (Top): 35.3 Degree C
    Acoustic Noise: 0dBA

  • Heat Dissipation (BTU)

    Without PoE, all ports: 9.88W - 33.73 BTU/hr
    With Max PoE, all ports: 132.25W - 451.5 BTU/hr
    Standby without any port connection: 6.4W - 22.02 BTU/hr

  • Mean Time Between Failures (MTBF)

    @ 77 Degree F ambient (25 Degree C): 1020,808 hours (-116.5 years)
    @ 113 Degree F ambient (45 Degree C)
    501,447 hours (-57.2 years)

Features Support

Jump to...

  • IEEE 802.3af (up to 15.4W per port)

    Yes

  • IEEE 802.3at (up to 30W per port)

    Yes

  • IEEE 802.3bt (up to 90W per port)

    No

  • IEEE 802.3at Layer 2 (LLDP) method

    Yes

  • IEEE 802.3at 2-event classification

    Yes

  • IEEE 802.3bt Layer 2 (LLDP) method

    No

  • IEEE 802.3bt auto-classification method

    No

  • Pre-802.3bt standard method

    No

  • PoE timer/schedule (week, days, hours)

    Yes

Physical

Jump to...

  • Dimensions (W x H x D)

    Desktop switch: 8.27 x 1.57 x 5.51" (210 x 40 x 140mm)
    Power adapter: 6.65 x 1.40 x 2.83" (169 x 35.5 x 72mm)

  • Weight

    Desktop switch: 2.13 lbs (966.15g)
    Power adapter: 1.21 lbs (548.84g)

Other

Jump to...

  • UPC Code

    606449160185

About Netgear M4250-9G1F-POE+

Switching engineered for 1G AV over IP with versatile mounting options for under a table or behind a display. Pre-configured for out of the box functionality!

Powerful AV switches made simple
Pre-configured to get you up and running faster

Fast, easy configuration for AV pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus on the event not fan noise
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.

Designed for AV over ip right out of the box
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Netgear M4250-9G1F-POE+ Features

  • Groundbreaking AV GUI: A simplified user interface makes it easy to assign configuration profiles to each port
  • Multicast in an Instant: NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications
  • Sleek, Quiet Design: Less fan noise, and mounting ears included for under-table or wall mounting
  • Automatic Configuration: Auto-trunk and auto-LAG functionality auto connects with other M4250 switches

Warranty Information

This product has a limited lifetime warranty.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Experience seamless data flow with 8 Gigabit Ethernet ports, perfect for high-bandwidth devices.
  • Power your IP cameras and access points effortlessly using the 110W PoE+ support.
  • Manage your network with ease using this Managed Network Switch, ideal for complex setups.
  • Enjoy silent operation thanks to the fanless design, perfect for quiet office environments.
  • Connect fiber optic devices with the integrated SFP port for extended network reach.
  • Ensure reliable performance and expandability with this robust Netgear network switch.

What's in the box:

  • Netgear AV Line M4250-9G1F-POE+ 8-Port 110W PoE+ GbE Managed Network Switch
  • Power Adapter
  • Power Cable
  • USB-C to USB-A 2.0 Console Cable
  • 2x Brackets & Screws for Desktop or Wall Mounting
  • Rubber Footpads for Tabletop Installation
  • Rubber Cap for SFP Socket
  • User Manual
  • Netgear Lifetime Limited Warranty
