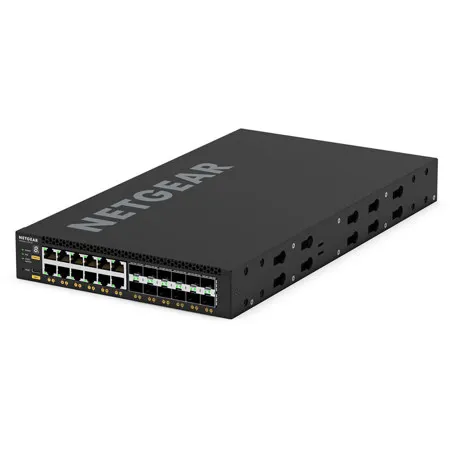

Netgear AV Line M4350-12X12F 12-Port 10G Multi-Gigabit Ethernet Managed Network Switch with 12x SFP+ Port

SKU: NEXSM4324100 MFR: XSM4324-100NES
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data transfers with 12x 10G Multi-Gigabit Ethernet ports for demanding tasks.
  • Optimize your network with advanced VLAN support, ensuring efficient traffic management and enhanced security.
  • Enjoy robust and reliable network performance, backed by an impressive 780,202 hours MTBF rating.
  • Effortlessly manage your network with this fully managed switch, perfect for complex IT environments.
  • Connect various devices seamlessly using the 12x SFP+ ports, ideal for fiber optic connections.
  • Power through your day with a 480 Gbps switching fabric, guaranteeing smooth, uninterrupted operation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear M4350-12X12F Specifications

General

General

Jump to...
  • Form-Factor

    Half-width: 1 or 2-unit 1U rack mount

  • Switching Fabric

    480 Gbps

  • Throughput (64-byte frames)

    357.12 Mpps

  • Heat Dissipation (BTU)

    Switch idle standby, without any port connection: 34W - 116.01 BTU/hr
    All ports connected full mesh traffic, without PoE: 95.8W - 326.88 BTU/hr

  • Mean Time Between Failures (MTBF)

    780,202 hours (89.1 years) @ 25 Degree C ambient (77 Degree F), 379,906 hours (43.4 years) @ 50 Degree C ambient (122 Degree F)

  • Country of Origin

    Thailand

Hardware: Front

Jump to...
  • 10GBASE-T RJ45 ports

    12x ports: 100M; 1G; 2.5G; 5G; 10G

  • 10GBASE-X SFP+ ports

    12x ports: 1G (ports 13-20 only); 10G

Hardware: Rear

Jump to...
  • Internal PSU

    1x Fixed 240W (C14) On/Off switch

  • Fans

    Fixed Front to-back

Hardware: Management

Jump to...
  • Out-of-band Console

    Ethernet: Out-of-band 1G port (Back)
    Console: USB-C (Front)
    Storage: 2x USB-A (Back)

Acoustic

Jump to...
  • QUIET MODE Setting at ambient

    Default mode:
    Fan Duty: 27
    Ambient: 25 Degree C
    Case Temp (Top): 31.9 Degree C
    Acoustic: 34.34dBA

  • COOL MODE Setting at ambient

    Fan Duty: 100%
    Case Temp (Top): 29.5 Degree C
    Acoustic: 64dBA

Software

Jump to...
  • MAC ARP/NDP

    16K MAC, 4K ARP/ 512 NDP

  • Routing / Switching Capacity

    480 Gbps Line-Rate

  • Throughput 64-byte

    357.12 Mpps

  • Application Route Scaling

    Static: 256v4/64v6
    RIP: 512
    OSPF: 1,024

  • Packet Buffer

    32Mb

  • Latency 64-byte

    <2.14micros 1G, <2.29micros 10G copper, <0.72micros 10G fiber

  • DDR4 RAM

    2 GB

  • CPU

    Quad-Core Cortex-A57 ARMv8 1.8Ghz 64-bit

  • IP Multicast Routing Entries

    512 IPv4, 256 IPv6

  • Jumbo Frames

    Up to 12K

  • Multicast IGMP Group Membership

    2K IPv4, 2K IPv6

  • VLANs

    4K VLANs

  • DHCP

    DHCP Server: 2K leases, IPv4: 256 pools, IPv6: 16 pools

I/O Ports

Jump to...
  • RJ45 100/1000/2.5/5/10GBASE-T

    12x ports

  • SFP+ 1000/10GBASE-X

    12x ports, 1G only on ports 13-20

  • Total Usable Port Count

    10G ports: 24x

Management Ports

Jump to...
  • Console port

    USB-C (front)

  • Service port (Out-of-band Ethernet)

    1x RJ45 10/100/1000BASE-T (back)

  • Storage ports

    2x USB-A (back)

Power Supplies

Jump to...
  • Internal PSU

    1 (240W) C14 connector

  • General On/Off Switch

    1

Fixed fans

Jump to...
  • Fixed fans

    Front-to-back airflow

Cool mode

Jump to...
  • Cool mode setting at 25 Degree C ambient

    Fan Duty: 100
    Case Temp (Top): 29.5 Degree C
    Acoustic: 64dBA

Operating Environmental

Jump to...
  • Temperature

    32 to 122 Degree F (0 to 50 Degree C)

  • Humidity

    90% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

Storage Environmental

Jump to...
  • Temperature

    - 4 to 158 Degree F (-20 to 70 Degree C)

  • Humidity

    95% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

Physical

Jump to...
  • Dimensions (W x H x D)

    8.66 x 1.7 x 15.75" (220 x 43.2 x 400mm)

  • Weight

    9.48 lbs (4.3kg)

  • UPC Code

    606449161458

About Netgear M4350-12X12F

Power and throughput
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 switches.

Fast, Easy Configuration for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.

Designed for AV over IP right out of the box
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Maximize performance with Pro Wi-Fi access points
Enable powerful, reliable Wi-Fi at your location with Pro Wi-Fi access points, powered by PoE or an external power adapter.

Netgear M4350-12X12F Features

  • 12 10G/Multi-Gig ports, and 12 10GBASE-X SFP+ ports
  • 240W internal power supply
  • Half-width form factor enables one or two switches in a single rack space for redundant top-of-rack
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience lightning-fast data transfers with 12x 10G Multi-Gigabit Ethernet ports for demanding tasks.
  • Optimize your network with advanced VLAN support, ensuring efficient traffic management and enhanced security.
  • Enjoy robust and reliable network performance, backed by an impressive 780,202 hours MTBF rating.
  • Effortlessly manage your network with this fully managed switch, perfect for complex IT environments.
  • Connect various devices seamlessly using the 12x SFP+ ports, ideal for fiber optic connections.
  • Power through your day with a 480 Gbps switching fabric, guaranteeing smooth, uninterrupted operation.

What's in the box:

  • Netgear AV Line M4350-12X12F 12-Port 10G Multi-Gigabit Ethernet Managed Network Switch
  • Power Cable
  • USB-C to USB-A 2.0 Console Cable
  • Rubber Caps
  • Rubber Footpads
  • Standard Rackmount Brackets
  • Long Rackmount Brackets
  • User Manual
  • Netgear Lifetime Limited Warranty
