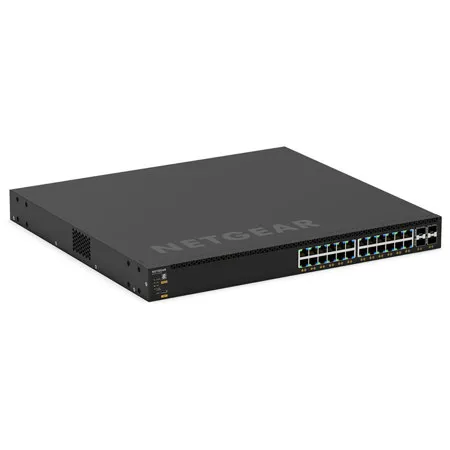

Netgear AV Line M4350-24G4XF 24-Port 648W PoE+ Gigabit Ethernet Managed Network Switch with 4x SFP+ Port

SKU: NEGSM4328100 MFR: GSM4328-100NES
Earn VIP Reward Points

Key Features

  • Power up your devices effortlessly with 24 PoE+ Gigabit Ethernet ports, delivering 648W for seamless operation.
  • Experience lightning-fast data transfer and robust network performance with 4x 10G SFP+ ports for your demanding applications.
  • Enjoy peace of mind with a Netgear Managed Network Switch, offering advanced control and security for your business.
  • Optimize your AV over IP deployments with this reliable switch, ensuring smooth, high-quality media streaming.
  • Benefit from a lifetime limited warranty, providing exceptional long-term support and product reliability.
  • Easily integrate into any rack setup with its 1U rack-mount design, saving valuable space in your server room.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear M4350-24G4XF Specifications

General

General

Jump to...
  • Form-Factor

    Full width: 1U rack mount

  • Switching Fabric

    128 Gbps

  • Throughput (64-byte frames)

    95.23 Mpps

  • Heat Dissipation (BTU)

    Switch idle standby, without any port connection: 32W - 109.19 BTU/hr
    All ports connected full mesh traffic, without PoE: 80W - 272.97 BTU/hr
    All ports connected full mesh, full PoE, internal PSU: 792.1W - 2702.76 BTU/hr
    All ports connected full mesh, max PoE budget, modular PSUs: 871.2W - 2972.73 BTU/hr

  • Mean Time Between Failures (MTBF)

    782,376 hours (89.3 years) @ 25 Degree C ambient (77 Degree F), 381,957 hours (43.6 years) @ 45 Degree C ambient (113 Degree F)

  • PoE Budget

    648W Base, up to 720W Budget

  • Country of Origin

    Thailand

Hardware: Front

Jump to...
  • 10GBASE-T RJ45 ports

    24x ports PoE+ 10M; 100M; 1G

  • 10GBASE-X SFP+ ports

    4x ports 1G; 10G

Hardware: Rear

Jump to...
  • Internal PSU

    1x Fixed 880W (C14) On/Off switch

  • Modular PSU Bays

    1 slot

  • Fans

    Fixed Front to-back

Hardware: Management

Jump to...
  • Out-of-band Console

    Ethernet: Out-of-band 1G port (Back)
    Console: USB-C (Front)
    Storage: 2x USB-A (Back)

Acoustic

Jump to...
  • QUIET MODE Setting at ambient

    Default mode:
    720W:
    Fan Duty: 28
    Ambient: 25 Degree C
    Case Temp (Top): 33.1 Degree C
    Acoustic: 33dBA

  • COOL MODE Setting at ambient

    Fan Duty: 60%
    Case Temp (Top): 31.9 Degree C
    Acoustic: 52dBA

Performance

Jump to...
  • MAC ARP/NDP

    16K MAC, 4K ARP/ 512 NDP

  • Routing / Switching Capacity

    128 Gbps Line-Rate

  • Throughput 64-byte

    95.23 Mpps

  • Application Route Scaling

    Static: 256v4/64v6
    RIP: 512
    OSPF: 1,024

  • Packet Buffer

    16Mb

  • Latency 64-byte

    <2.42micros 1G, <0.92micros 10G fiber

  • DDR4 RAM

    2 GB

  • CPU

    Quad-Core Cortex-A57 ARMv8 1.8Ghz 64-bit

  • IP Multicast Routing Entries

    512 IPv4, 256 IPv6

  • Jumbo Frames

    Up to 12K

  • Multicast IGMP Group Membership

    2K IPv4, 2K IPv6

  • VLANs

    4K VLANs

  • DHCP

    DHCP Server: 2K leases, IPv4: 256 pools, IPv6: 16 pools

I/O Ports

Jump to...
  • RJ45 10/100/1000BASE-T

    24x ports PoE+ 648W (base) up to 720W

  • SFP+ 1000/10GBASE-X

    4x ports

  • Total Usable Port Count

    1G Ports: 24x
    10G ports: 4x

Management Ports

Jump to...
  • Console port

    USB-C (front)

  • Service port (Out-of-band Ethernet)

    1x RJ45 10/100/1000BASE-T (back)

  • Storage ports

    2x USB-A (back)

Power Supplies

Jump to...
  • Internal PSU

    1 (880W) C14 connector

  • General On/Off Switch

    1

  • Modular PSU Slots

    1 slot for APS350W, APS600Wv2, APS920W, or APS2000W

Fixed fans

Jump to...
  • Fixed fans

    Front-to-back airflow

Power over Ethernet

Jump to...
  • PSE Capacity

    PoE+ Ports (802.3at): 24x

Operating Environmental

Jump to...
  • Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Humidity

    90% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

Storage Environmental

Jump to...
  • Temperature

    - 4 to 158 Degree F (-20 to 70 Degree C)

  • Humidity

    95% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

PoE Features Support

Jump to...
  • IEEE 802.3af (up to 15.4W per port)

    Yes

  • IEEE 802.3at (up to 30W per port)

    Yes

  • IEEE 802.3bt (up to 90W per port)

    No

  • IEEE 802.3at Layer 2 (LLDP) method

    Yes

  • IEEE 802.3at 2-event classification

    Yes

  • IEEE 802.3bt Layer 2 (LLDP) method

    No

  • IEEE 802.3bt auto-classification method

    No

  • Pre-802.3bt standard method

    No

  • PoE timer / schedule (week, days, hours)

    Yes

Physical

Jump to...
  • Dimensions (W x H x D)

    17.32 x 1.7 x 15.75" (440 x 43.2 x 400mm)

  • Weight

    14.13 lbs (6.41kg)

  • UPC Code

    606449161922

About Netgear M4350-24G4XF

Power and throughput
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Fast, easy configuration for AV pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

Focus on the event not the fan noise
Most models have quiet mode which greatly reduces fan noise.

Designed for AV over ip right out of the box
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Performance with pro Wi-Fi access points
Enable powerful, reliable Wi-Fi at your location with Pro Wi-Fi access points, powered by PoE or an external power adapter.

Netgear M4350-24G4XF Features

  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks
  • 880W internal power supply providing 648W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • The PoE budget can reach 720W, when the redundant PoE budget remains 648W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Power up your devices effortlessly with 24 PoE+ Gigabit Ethernet ports, delivering 648W for seamless operation.
  • Experience lightning-fast data transfer and robust network performance with 4x 10G SFP+ ports for your demanding applications.
  • Enjoy peace of mind with a Netgear Managed Network Switch, offering advanced control and security for your business.
  • Optimize your AV over IP deployments with this reliable switch, ensuring smooth, high-quality media streaming.
  • Benefit from a lifetime limited warranty, providing exceptional long-term support and product reliability.
  • Easily integrate into any rack setup with its 1U rack-mount design, saving valuable space in your server room.

What's in the box:

  • Netgear AV Line M4350-24G4XF 24-Port 648W PoE+ GbE Managed Network Switch
  • Power Cord
  • USB Type-C Console Cable
  • Rack-Mounting Standard Bracket Set
  • Set of Longer Brackets for Recessed Mounting
  • 4x Rubber Footpads for Tabletop Installation
  • User Manual
  • Netgear Lifetime Limited Warranty
