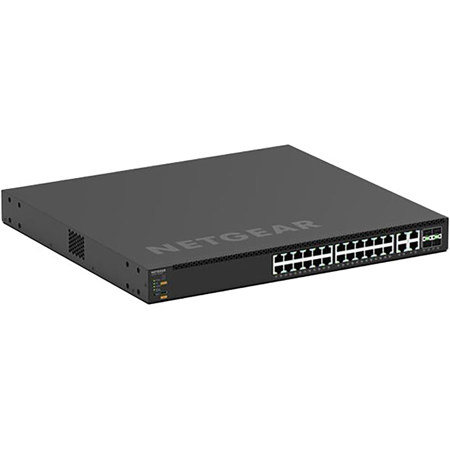

Netgear AV Line M4350-24M4X4V 24-Port 2.5G/4-Port 10G 522W PoE++ Multi-Gigabit Ethernet Managed Network Switch with 4x SFP28 Port

SKU: NEMSM4332100 MFR: MSM4332-100NES
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data transfers with 24x 2.5G and 4x 10G PoE++ ports for your network.
  • Power all your devices effortlessly with a robust 522W PoE budget, ensuring reliable connectivity.
  • Manage your network with ease using this advanced managed switch, perfect for complex setups.
  • Enjoy seamless integration for high-bandwidth applications, ideal for AV over IP and gaming.
  • Benefit from Netgear's trusted reliability and lifetime limited warranty for peace of mind.
  • Optimize your business operations with a versatile switch supporting both 2.5G and 10G speeds.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear M4350-24M4X4V Specifications

General

General

Jump to...
  • Form-Factor

    Full width / Color LEDs: 1U rack mount

  • Switching Fabric

    400 Gbps

  • Throughput (64-byte frames)

    537.63 Mpps

  • Heat Dissipation (BTU)

    53W - 180.94 BTU/hr

  • Mean Time Between Failures (MTBF)

    377,861 hours (43.1 years) @ 25 Degree C ambient (77 Degree F), 265,798 hours (39.5years) @ 45 Degree C ambient (113 Degree F)

  • PoE Budget

    522W Base, up to 2,520W Budget

  • Country of Origin

    Thailand

Hardware: Front

Jump to...
  • 2.5GBASE-T RJ45 port

    24x ports PoE++ 100M; 1G; 2.5G

  • 10GBASE-T RJ45 ports

    4x ports PoE++ 1G; 2.5G; 5G; 10G

  • 25GBASE-X SFP28 ports

    4x ports 10G; 25G

Hardware: Rear

Jump to...
  • Internal PSU

    1x Fixed 800W (C14) On/Off switch

  • Modular PSU Bays

    2 slots

  • Fans

    Fixed Front-to-back

Hardware: Management

Jump to...
  • Out-of-band Console

    Ethernet: Out-of-band 1G port (Back)
    Console: USB-C (Front)
    Storage: 2x USB-A (Back)

Acoustic

Jump to...
  • QUIET MODE Setting at ambient

    Default mode:
    2,520W:
    Fan Duty: 30
    Ambient: 25 Degree C
    Case Temp (Top): 29.4 Degree C
    Acoustic: 34.8dBA

  • COOL MODE Setting at ambient

    Fan Duty: 100%
    Case Temp (Top): 27.3 Degree C
    Acoustic: 66dBA

Performance

Jump to...
  • MAC ARP/NDP

    16K MAC, 4K ARP/ 512 NDP

  • Routing / Switching Capacity

    400 Gbps Line-Rate

  • Throughput 64-byte

    297.6 Mpps

  • Application Route Scaling

    Static: 256v4/64v6
    RIP: 512
    OSPF: 1,024

  • Packet Buffer

    32MB

  • Latency 64-byte

    <5.50micros 2.5G, <2.28micros @ 10G copper, <0.65micros@ 25G

  • DDR4 RAM

    4 GB

  • CPU

    Quad-Core Cortex-A57 ARMv8 1.8Ghz 64-bit

  • IP Multicast Routing Entries

    512 IPv4, 256 IPv6

  • Jumbo Frames

    Up to 12K

  • Multicast IGMP Group Membership

    2K IPv4, 2K IPv6

  • VLANs

    4K VLANs

  • DHCP

    DHCP Server: 2K leases, IPv4: 256 pools, IPv6: 16 pools

I/O Ports

Jump to...
  • RJ45 100/1000/2.5GBASE-T

    24x ports PoE++

  • RJ45 100/1000/2.5/5/10GBASE-T

    4x ports PoE++ 1000/2.5/5/10G only no 100M support, 522W (base) up to 2,520W

  • SFP28 10G/25GBASE-X

    4x ports
    Ethernet mode: 10G/25G; Stacking mode: 25G

  • Total Usable Port Count

    2.5G ports: 24x; 10G Ports: 4x, 25G ports: 4x

Management Ports

Jump to...
  • Console port

    USB-C (front)

  • Service port (Out-of-band Ethernet)

    1x RJ45 10/100/1000BASE-T (back)

  • Storage ports

    2x USB-A (back)

Power Supplies

Jump to...
  • Internal PSU

    1 (800W) C14 connector

  • General On/Off Switch

    1

  • Modular PSU Slots

    2 slots for APS600Wv3, APS1200Wv2, or APS2000Wv2

Fixed fans

Jump to...
  • Fixed fans

    Front-to-back airflow

Power over Ethernet

Jump to...
  • PSE Capacity

    Ultra60 PoE++ Ports (802.3bt): 28x

Cool mode

Jump to...
  • Cool mode setting at 25 Degree C ambient

    Fan Duty: 100
    Case Temp (Top): 27.3 Degree C
    Acoustic: 66dBA

Operating Environmental

Jump to...
  • Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Humidity

    90% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

Storage Environmental

Jump to...
  • Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Humidity

    95% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

Physical

Jump to...
  • Dimensions (W x H x D)

    17.32 x 1.7 x 15.75" (440 x 43.2 x 400mm)

  • Weight

    16.26 lbs (7.38 kg)

  • UPC Code

    606449172850

About Netgear M4350-24M4X4V

Power and Throughput
Edge to core flexible platform, from 1 Gigabit to 100 Gigabit, good for projects of all sizes.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 switches.

Fast, Easy Configuration for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

Focus on the Event Not the Fan Noise
Most models have quiet mode which greatly reduces fan noise.

Designed For AV Over IP Right out of the Box
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless audio and video delivery. Enable multicasting right out of the box.

Maximize Performance with Pro Wi-Fi Access Points
Enable powerful, reliable Wi-Fi at your location with Pro Wi-Fi access points, powered by PoE or an external power adapter.

Netgear M4350-24M4X4V Features

  • 24 2.5G and 4 10G/Multi-gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
  • 800W internal power supply providing 522W of PoE budget
  • 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 2,520W, the redundant PoE budget can reach 1,972W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus, NETGEAR AV OS, and Engage Controller speed up AV installations
  • SMPTE ST 2110 Grand Master Clock and Boundary Clock for AES67 and ST2059-2 applications
  • Multi-color LED on each physical port reflecting the profile color in the NETGEAR AV OS and Engage Controller

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience lightning-fast data transfers with 24x 2.5G and 4x 10G PoE++ ports for your network.
  • Power all your devices effortlessly with a robust 522W PoE budget, ensuring reliable connectivity.
  • Manage your network with ease using this advanced managed switch, perfect for complex setups.
  • Enjoy seamless integration for high-bandwidth applications, ideal for AV over IP and gaming.
  • Benefit from Netgear's trusted reliability and lifetime limited warranty for peace of mind.
  • Optimize your business operations with a versatile switch supporting both 2.5G and 10G speeds.

What's in the box:

  • Netgear AV Line M4350-24M4X4V 24-Port 2.5G/4-Port 10G PoE++ Multi-Gigabit Ethernet Managed Switch
  • Power Cord
  • USB Type-C Console Cable
  • Rack-Mounting Standard Bracket Set
  • Set of Longer Brackets for Recessed Mounting
  • 4x Rubber Footpads for Tabletop Installation
  • User Manual
  • Netgear Lifetime Limited Warranty
