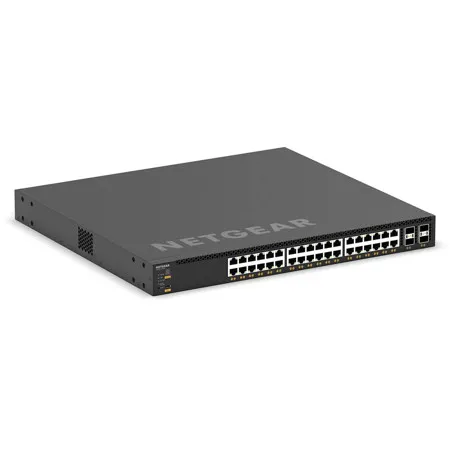

Netgear AV Line M4350-36X4V 36-Port 10G 280W PoE++ Multi-Gigabit Ethernet Managed Network Switch with 4x SFP28 Port

SKU: NEXSM4340CV1 MFR: XSM4340CV-100NES
Earn VIP Reward Points

Key Features

  • Experience lightning-fast data transfers with 36x 10G and 4x 25G ports for your growing network.
  • Power your devices effortlessly with 280W PoE++ support, simplifying your network infrastructure.
  • Manage your network with ease using this reliable managed switch, perfect for complex setups.
  • Ensure seamless AV over IP deployments with dedicated features for professional audio and video.
  • Enjoy robust performance and stability, backed by Netgear's trusted reliability for critical operations.
  • Expand your network's capabilities with advanced VLAN support for efficient traffic segmentation.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear M4350-36X4V Specifications

General

General

Jump to...
  • Form-Factor

    Full width: 1U rack mount

  • Switching Fabric

    920 Gbps

  • Throughput (64-byte frames)

    684.48 Mpps

  • Heat Dissipation (BTU)

    Switch idle standby, without any port connection: 59.3W - 202.34 BTU/hr
    All ports connected full mesh traffic, without PoE: 148W - 505 BTU/hr
    All ports connected full mesh, full PoE, internal PSU: 454W - 1549.11 BTU/hr
    All ports connected full mesh, max PoE budget, modular PSUs: 2071.4W - 7068.01BTU/hr

  • Mean Time Between Failures (MTBF)

    292,505 hours (33.3 years) @ 25 Degree C ambient (77 Degree F), 264,032 hours (30.1 years) @ 45 Degree C ambient (113 Degree F)

  • Country of Origin

    Thailand

Hardware: Front

Jump to...
  • 10GBASE-T RJ45 ports

    36x ports: PoE++ 100M (ports 1-28 only); 1G; 2.5G; 5G; 10G 280W (base), up to 1,760W

  • 25GBASE-X SFP28 ports

    4x ports 10G; 25G (Ethernet Mode) (Stacking: 25G)

Hardware: Rear

Jump to...
  • Internal PSU

    1x Fixed 750W (C14) On/Off switch

  • Modular PSU Bays

    1 slot

  • Fans

    Fixed Front to-back

Hardware: Management

Jump to...
  • Out-of-band Console

    Ethernet: Out-of-band 1G port (Back)
    Console: USB-C (Front)
    Storage: 2x USB-A (Back)

Acoustic

Jump to...
  • QUIET MODE Setting at ambient

    Default mode:
    1760W:
    Fan Duty: 25
    Ambient: 25 Degree C
    Case Temp (Top): 39 Degree C
    Acoustic: 32.1dBA

  • COOL MODE Setting at ambient

    Fan Duty: 60%
    Case Temp (Top): 30.4 Degree C
    Acoustic: 54dBA

Software

Jump to...
  • MAC ARP/NDP

    16K MAC, 4K ARP/ 512 NDP

  • Routing / Switching Capacity

    920 Gbps Line-Rate

  • Throughput 64-byte

    684.48 Mpps

  • Application Route Scaling

    Static: 256v4/64v6
    RIP: 512
    OSPF: 1,024

  • Packet Buffer

    64Mb

  • Latency 64-byte

    <2.54micros 1G, <2.75micros 10G copper, <1.08micros 25G

  • DDR4 RAM

    4 GB

  • CPU

    Quad-Core Cortex-A57 ARMv8 1.8Ghz 64-bit

  • IP Multicast Routing Entries

    512 IPv4, 256 IPv6

  • Jumbo Frames

    Up to 12K

  • Multicast IGMP Group Membership

    2K IPv4, 2K IPv6

  • VLANs

    4K VLANs

  • DHCP

    DHCP Server: 2K leases, IPv4: 256 pools, IPv6: 16 pools

I/O Ports

Jump to...
  • RJ45 100/1000/2.5/5/10GBASE-T

    36x ports PoE++ 100M only on ports 1-28, 280W (base) up to 1,760W

  • Auto-sensing SFP28 1000/10G/25GBASE-X

    4x ports
    Ethernet mode: 10G/25G; Stacking mode: 25G

  • Total Usable Port Count

    10G ports: 36x
    25G ports: 4x

Management Ports

Jump to...
  • Console port

    USB-C (front)

  • Service port (Out-of-band Ethernet)

    1x RJ45 10/100/1000BASE-T (back)

  • Storage ports

    2x USB-A (back)

Power Supplies

Jump to...
  • Internal PSU

    1 (750W) C14 connector

  • General On/Off Switch

    1

  • Modular PSU Slots

    1 slot for APS600Wv3, APS1200Wv2, or APS2000Wv2

Fixed fans

Jump to...
  • Fixed fans

    Front-to-back airflow

Power over Ethernet

Jump to...
  • PSE Capacity

    Ultra90 PoE++ Ports (802.3bt): 36x

Cool mode

Jump to...
  • Cool mode setting at 25 Degree C ambient

    Fan Duty: 100
    Case Temp (Top): 29.5 Degree C
    Acoustic: 64dBA

Operating Environmental

Jump to...
  • Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Humidity

    90% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

Storage Environmental

Jump to...
  • Temperature

    - 4 to 158 Degree F (-20 to 70 Degree C)

  • Humidity

    95% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

PoE Features Support

Jump to...
  • IEEE 802.3af (up to 15.4W per port)

    Yes

  • IEEE 802.3at (up to 30W per port)

    Yes

  • IEEE 802.3bt (up to 90W per port)

    Yes

  • IEEE 802.3at Layer 2 (LLDP) method

    Yes

  • IEEE 802.3at 2-event classification

    Yes

  • IEEE 802.3bt Layer 2 (LLDP) method

    Yes

  • IEEE 802.3bt auto-classification method

    Yes

  • Pre-802.3bt standard method

    Yes

  • PoE timer / schedule (week, days, hours)

    Yes

Physical

Jump to...
  • Dimensions (W x H x D)

    17.32 x 1.7 x 15.75" (440 x 43.2 x 400mm)

  • Weight

    16.16 lbs (7.33kg)

  • UPC Code

    606449165104

About Netgear M4350-36X4V

Power and throughput
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 switches.

Fast, easy configuration for AV pros
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

Focus on the event not fan noise
Most models have quiet mode which greatly reduces fan noise.

Designed for AV over IP right out of the box
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Maximize performance with Pro Wi-Fi access points
Enable powerful, reliable Wi-Fi at your location with Pro Wi-Fi access points, powered by PoE or an external power adapter.

Netgear M4350-36X4V Features

  • 36 10G/Multi-Gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
  • 750W internal power supply providing 280W of PoE budget
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share)
  • Any APS600Wv3, APS1200Wv2, or APS2000Wv2 can be used
  • The PoE budget can reach 1,760W, when the redundant PoE budget remains 280W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience lightning-fast data transfers with 36x 10G and 4x 25G ports for your growing network.
  • Power your devices effortlessly with 280W PoE++ support, simplifying your network infrastructure.
  • Manage your network with ease using this reliable managed switch, perfect for complex setups.
  • Ensure seamless AV over IP deployments with dedicated features for professional audio and video.
  • Enjoy robust performance and stability, backed by Netgear's trusted reliability for critical operations.
  • Expand your network's capabilities with advanced VLAN support for efficient traffic segmentation.

What's in the box:

  • Netgear AV Line M4350-36X4V 36-Port 10G 280W PoE++ Multi-Gigabit Ethernet Managed Network Switch
  • Power Cable
  • USB-C to USB-A 2.0 Console Cable
  • Rubber Caps for SFP28 Sockets
  • Rubber Footpads
  • Standard Rackmount Brackets
  • Long Rackmount Brackets
  • User Manual
  • Netgear Lifetime Limited Warranty
