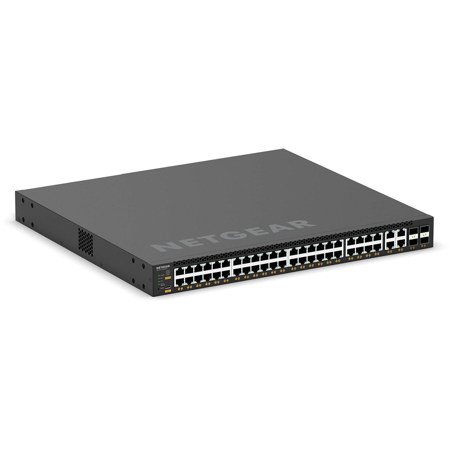

Netgear AV Line M4350-44M4X4V 44-Port 2.5G/4-Port 10G 194W PoE++ Multi-Gigabit Ethernet Managed Network Switch with 4x SFP28 Port

SKU: NEMSM4352100 MFR: MSM4352-100NES
Earn VIP Reward Points

Key Features

  • Experience seamless data flow with 44 2.5G PoE++ ports, perfect for high-bandwidth devices.
  • Future-proof your network with 4 10G PoE++ ports, ensuring rapid data transfer and scalability.
  • Manage your network effortlessly with advanced VLAN support, optimizing traffic for peak performance.
  • Power all your devices with a robust 194W PoE budget, ideal for IP cameras and access points.
  • Enjoy enterprise-grade reliability and security from a trusted brand, Netgear, for peace of mind.
  • Deploy easily in any rackmount setup, providing flexible and efficient network infrastructure.
See More Product Details
New Item?Request assistance or get notified
Free Shipping

See Options

1
Add to ListGet Sale Alert

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Netgear M4350-44M4X4V Specifications

General

General

Jump to...
  • Form-Factor

    Full width: 1U rack mount

  • Switching Fabric

    372 Mpps

  • Throughput (64-byte frames)

    130.94 Mpps

  • Heat Dissipation (BTU)

    Switch idle standby, without any port connection: 56.5W - 192.79 BTU/hr
    All ports connected full mesh traffic, without PoE: 133.5W - 455.52 BTU/hr
    All ports connected full mesh, full PoE, internal PSU: 351.5W - 1199.37 BTU/hr
    All ports connected full mesh, max PoE budget, modular PSUs: 3857.5W - 13162.27 BTU/hr

  • Mean Time Between Failures (MTBF)

    320,552 hours (36.6 years) @ 25 Degree C ambient (77 Degree F), 213,173 hours (24.3 years) @ 45 Degree C ambient (113 Degree F)

  • PoE Budget

    194W (base), up to 3,314W

  • Country of Origin

    Taiwan, Thailand

Hardware: Front

Jump to...
  • 2.5GBASE-T RJ45 ports

    44x ports PoE++ 100M; 1G; 2.5G

  • 10GBASE-T RJ45 ports

    4x ports PoE++ 1G; 2.5G; 5G; 10G

  • 25GBASE-X SFP28 ports

    4x ports 10G; 25G (Ethernet Mode) (Stacking: 25G)

Hardware: Rear

Jump to...
  • Internal PSU

    1x Fixed 550W (C14) On/Off switch

  • Modular PSU Bays

    2 slots

  • Fans

    Fixed Front to-back

Hardware: Management

Jump to...
  • Out-of-band Console

    Ethernet: Out-of-band 1G port (Back)
    Console: USB-C (Front)
    Storage: 2x USB-A (Back)

Acoustic

Jump to...
  • QUIET MODE Setting at ambient

    Default mode:
    3,314W:
    Fan Duty: 28
    Ambient: 25 Degree C
    Case Temp (Top): 43.3 Degree C
    Acoustic: 34dBA

  • COOL MODE Setting at ambient

    Fan Duty: 60%
    Case Temp (Top): 38.3 Degree C
    Acoustic: 52dBA

Performance

Jump to...
  • MAC ARP/NDP

    16K MAC, 4K ARP/ 512 NDP

  • Routing / Switching Capacity

    500 Gbps Line-Rate

  • Throughput 64-byte

    372 Mpps

  • Application Route Scaling

    Static: 256v4/64v6
    RIP: 512
    OSPF: 1,024

  • Packet Buffer

    32Mb

  • Latency 64-byte

    <5.61micros 2.5G, <2.27micros 10G copper, <0.75micros 25G

  • DDR4 RAM

    2 GB

  • CPU

    Quad-Core Cortex-A57 ARMv8 1.8Ghz 64-bit

  • IP Multicast Routing Entries

    512 IPv4, 256 IPv6

  • Jumbo Frames

    Up to 12K

  • Multicast IGMP Group Membership

    2K IPv4, 2K IPv6

  • VLANs

    4K VLANs

  • DHCP

    DHCP Server: 2K leases, IPv4: 256 pools, IPv6: 16 pools

I/O Ports

Jump to...
  • RJ45 100/1000/2.5GBASE-T

    44x ports PoE++

  • RJ45 100/1000/2.5/5/10GBASE-T

    4x ports PoE++ 1000/2.5/5/10G only no 100M support

  • SFP28 10G/25GBASE-X

    4x ports Ethernet mode: 10G/25G; Stacking mode: 25G

  • Total Usable Port Count

    2.5G ports: 44x
    10G ports: 4x
    25G ports: x

Management Ports

Jump to...
  • Console port

    USB-C (front)

  • Service port (Out-of-band Ethernet)

    1x RJ45 10/100/1000BASE-T (back)

  • Storage ports

    2x USB-A (back)

Power Supplies

Jump to...
  • Internal PSU

    1 (550W) C14 connector

  • General On/Off Switch

    1

  • Modular PSU Slots

    2 slots for APS350W, APS600Wv2, APS920W, or APS2000W

Fixed fans

Jump to...
  • Fixed fans

    Front-to-back airflow

Power over Ethernet

Jump to...
  • PSE Capacity

    Ultra90 PoE++ Ports (802.3bt): 48x

Operating Environmental

Jump to...
  • Temperature

    32 to 113 Degree F (0 to 45 Degree C)

  • Humidity

    90% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

Storage Environmental

Jump to...
  • Temperature

    - 4 to 158 Degree F (-20 to 70 Degree C)

  • Humidity

    95% maximum relative humidity, non-condensing

  • Altitude

    10,000' (3,000m) maximum

PoE Features Support

Jump to...
  • IEEE 802.3af (up to 15.4W per port)

    Yes

  • IEEE 802.3at (up to 30W per port)

    Yes

  • IEEE 802.3bt (up to 90W per port)

    Yes

  • IEEE 802.3at Layer 2 (LLDP) method

    Yes

  • IEEE 802.3at 2-event classification

    Yes

  • IEEE 802.3bt Layer 2 (LLDP) method

    Yes

  • IEEE 802.3bt auto-classification method

    Yes

  • Pre-802.3bt standard method

    Yes

  • PoE timer / schedule (week, days, hours)

    Yes

Physical

Jump to...
  • Dimensions (W x H x D)

    17.32 x 1.7 x 15.75" (440 x 43.2 x 400mm)

  • Weight

    16.18 lbs (7.34kg)

  • UPC Code

    606449161502

About Netgear M4350-44M4X4V

Power and throughput
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an instant
NETGEAR IGMP Plus provides multicast functionality right out of the box for most AV over IP applications.

Sleek, quiet design
Less fan noise, and mounting ears included for rack mounting.

Automatic configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 switches.

Fast, easy configuration for AV Pros
A streamlined interface using certified profiles with settings for any AV or broadcast application assigned to ports with just a few clicks.

Focus on the event not the fan noise
Most models have quiet mode which greatly reduces fan noise.

Designed for AV Over IP right out of the box
With built-in NETGEAR IGMP Plus, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Maximize performance with Pro Wi-Fi access points
Enable powerful, reliable Wi-Fi at your location with Pro Wi-Fi access points, powered by PoE or an external power adapter.

Netgear M4350-44M4X4V Features

  • 44 2.5G and 4 10G/Multi-gig PoE++ ports with 4 25GBASE-X SFP28 uplinks
  • 550W internal power supply providing 194W of PoE budget
  • 2 slots for modular power supplies (1+1 redundancy and/or EPS share)
  • Any APS350Wv1, APS600Wv2, APS920Wv1, or APS2000Wv1 can be used
  • The PoE budget can reach 3,314W, the redundant PoE budget can reach 1,794W
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover
  • Layer 3 feature set includes static, policy-based, and dynamic routing
  • NETGEAR IGMP Plus, AV User Interface, and Engage Controller speed up AV installations

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • Experience seamless data flow with 44 2.5G PoE++ ports, perfect for high-bandwidth devices.
  • Future-proof your network with 4 10G PoE++ ports, ensuring rapid data transfer and scalability.
  • Manage your network effortlessly with advanced VLAN support, optimizing traffic for peak performance.
  • Power all your devices with a robust 194W PoE budget, ideal for IP cameras and access points.
  • Enjoy enterprise-grade reliability and security from a trusted brand, Netgear, for peace of mind.
  • Deploy easily in any rackmount setup, providing flexible and efficient network infrastructure.

What's in the box:

  • Netgear AV Line M4350-44M4X4V 44-Port 2.5G/4-Port 10G PoE++ Multi-Gigabit Ethernet Managed Switch
  • Power Cord
  • USB Type-C Console Cable
  • Rack-Mounting Standard Bracket Set
  • Set of Longer Brackets for Recessed Mounting
  • 4x Rubber Footpads for Tabletop Installation
  • User Manual
  • Netgear Lifetime Limited Warranty
